官方给的文档很模糊,看到要疯,什么都给一点,暂时还没有DEMO。
官网地址
w3cschool地址

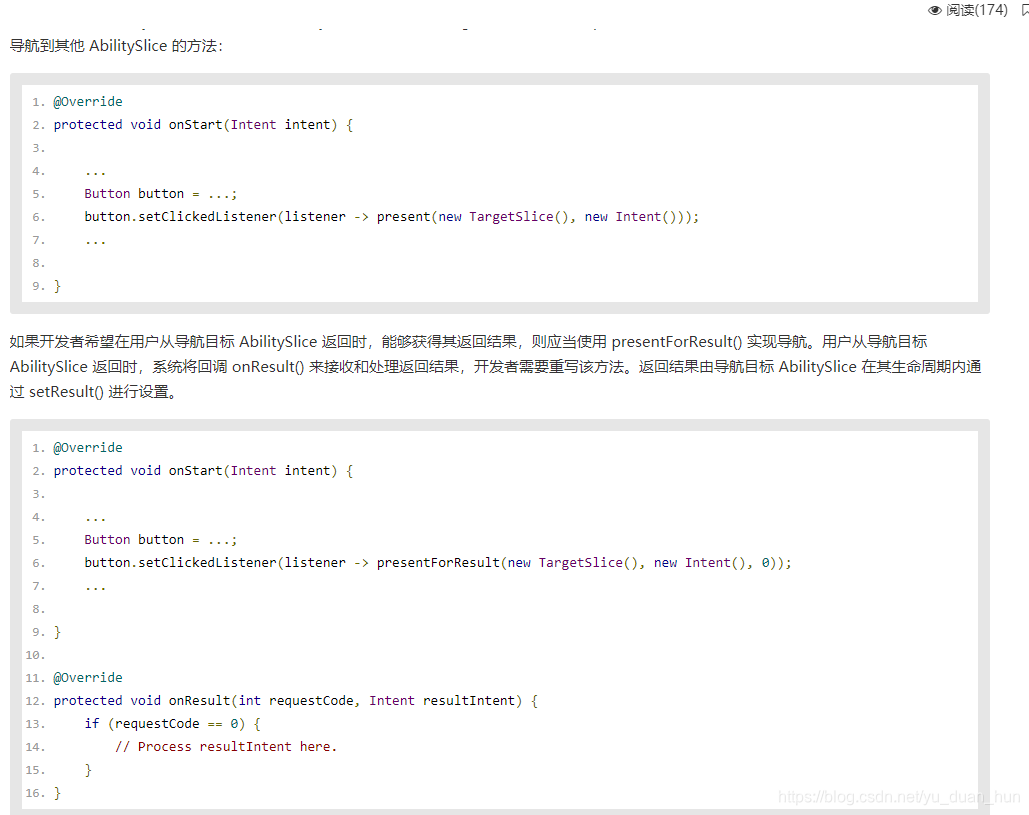

这里截个w3cschool的图(内容一致的,w3cschool字小一点)
我截个图吐槽一下:在这里插入图片描述
所以我到底怎么把值返回?文档里面没写。。。。

找了好久,终于在SDK目录下找到DOC,SDK目录这样找:

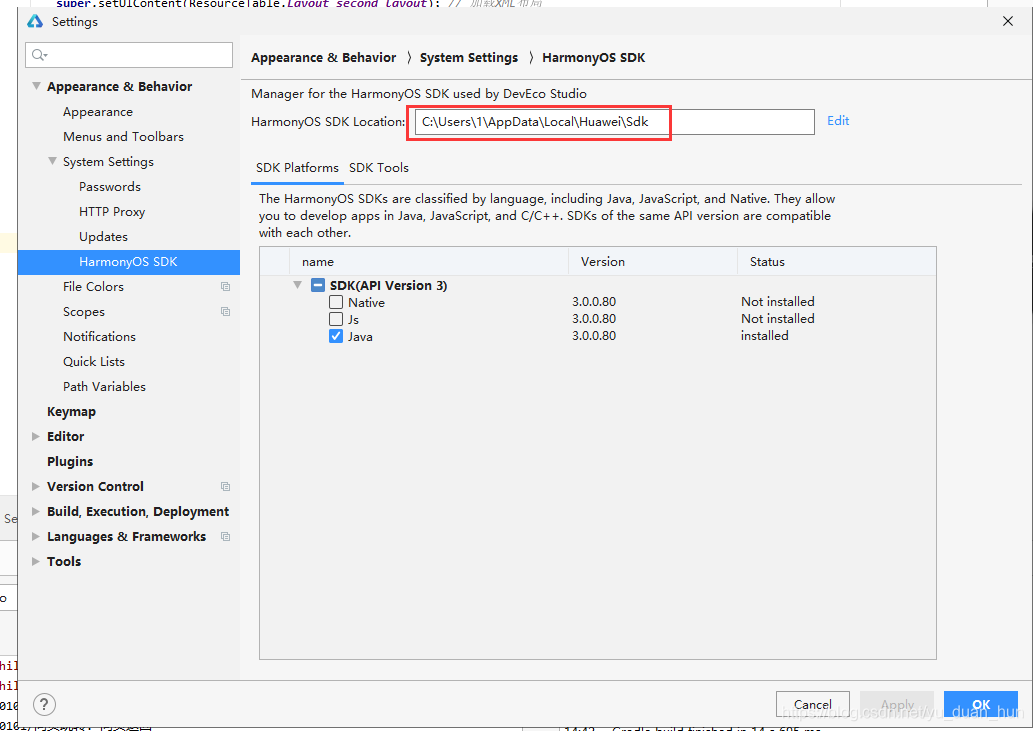

File-Settings,找到图示位置,复制当前SDK地址。
在这里插入图片描述

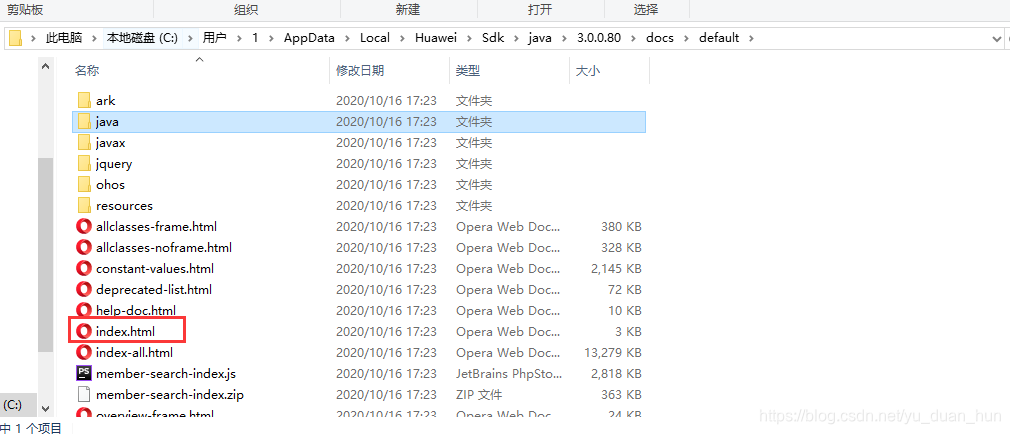

打开SDK路径后,进入java/版本号/docs/default路径,找到index.html,打开下面位置的文件:
在这里插入图片描述

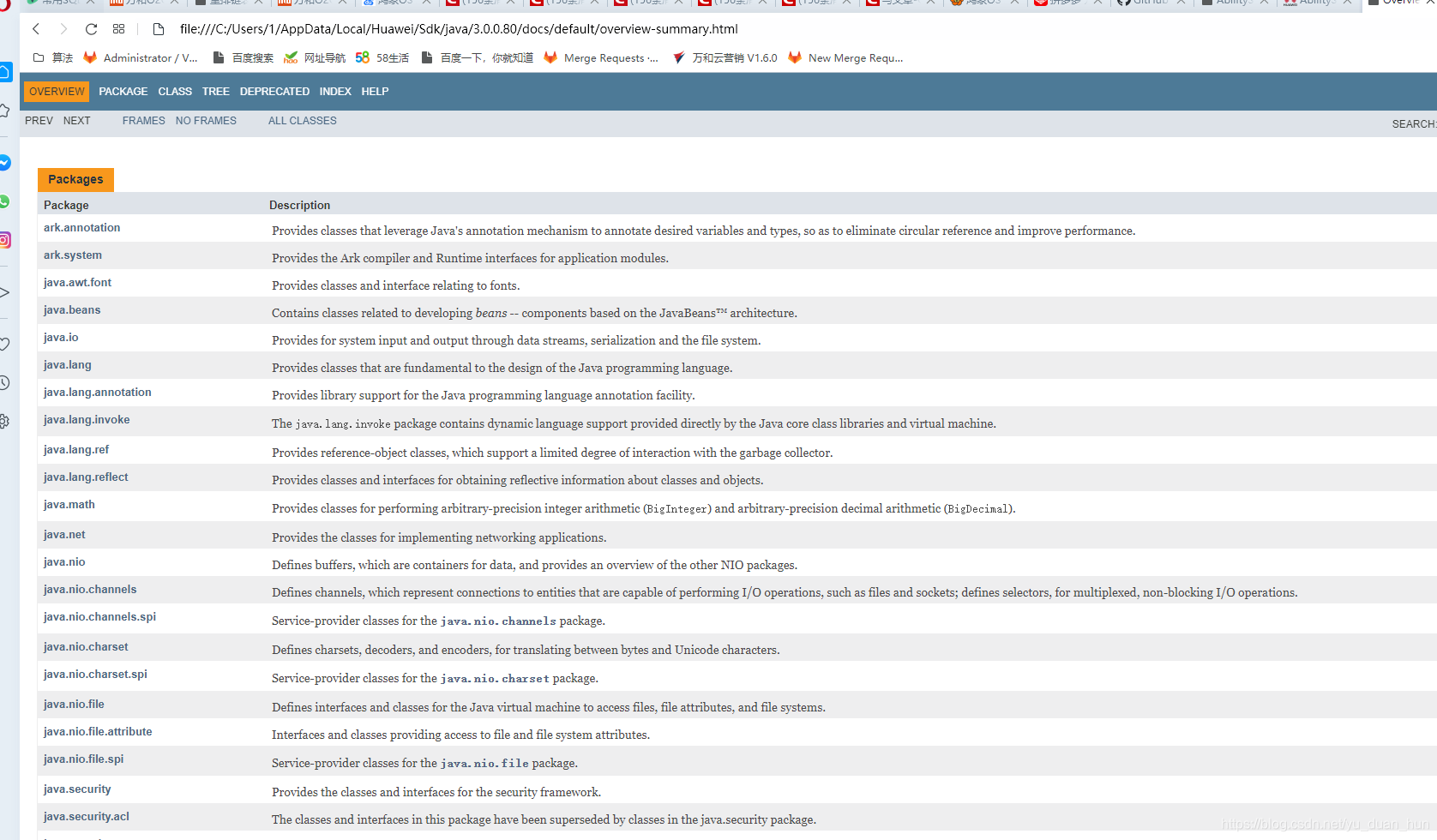

里面看到一堆包名,class文件点不了,嗯。。。。
在这里插入图片描述

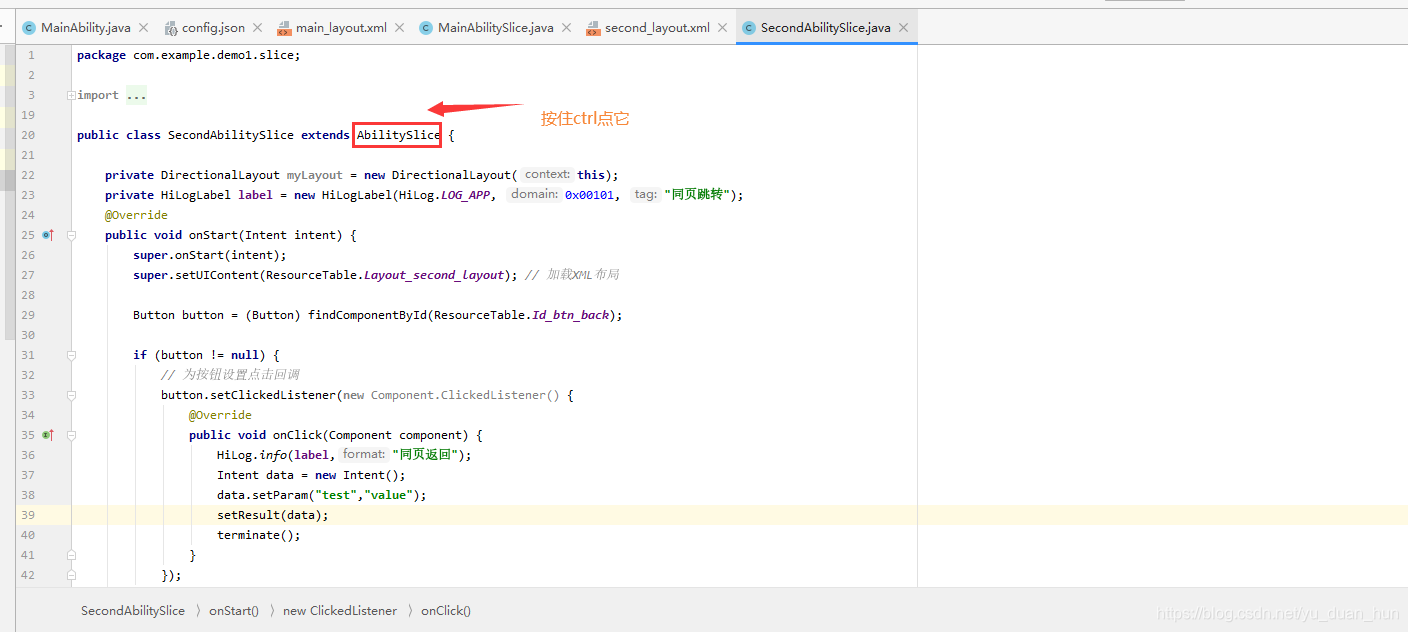

在项目里面ctrl点一下类名
在这里插入图片描述

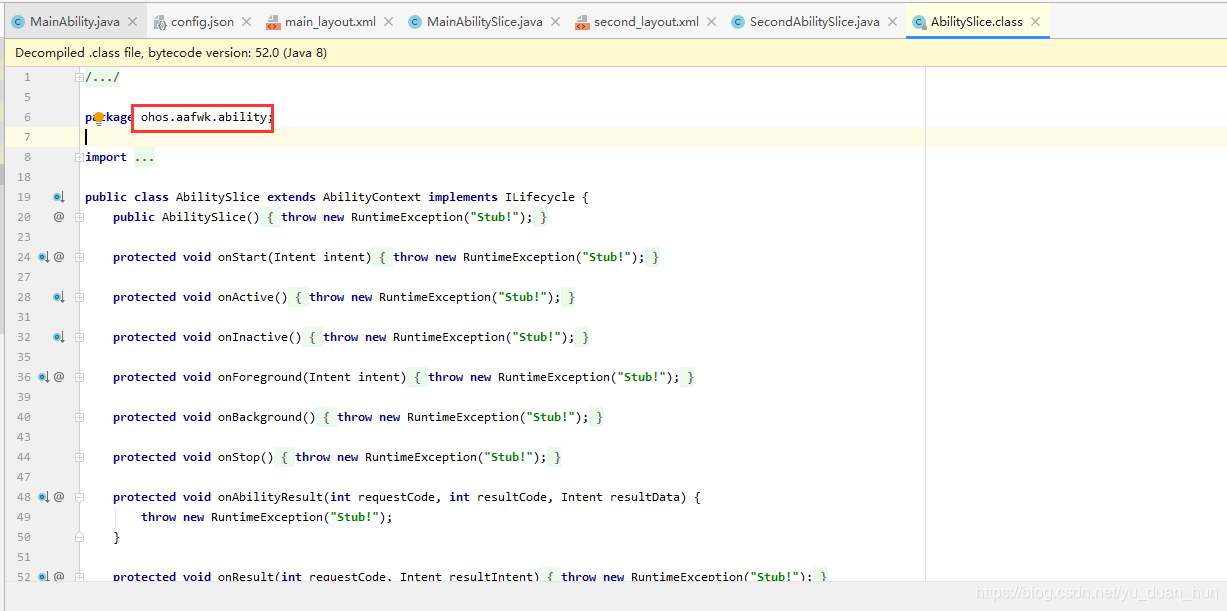

这个是包名,复制一下
在这里插入图片描述

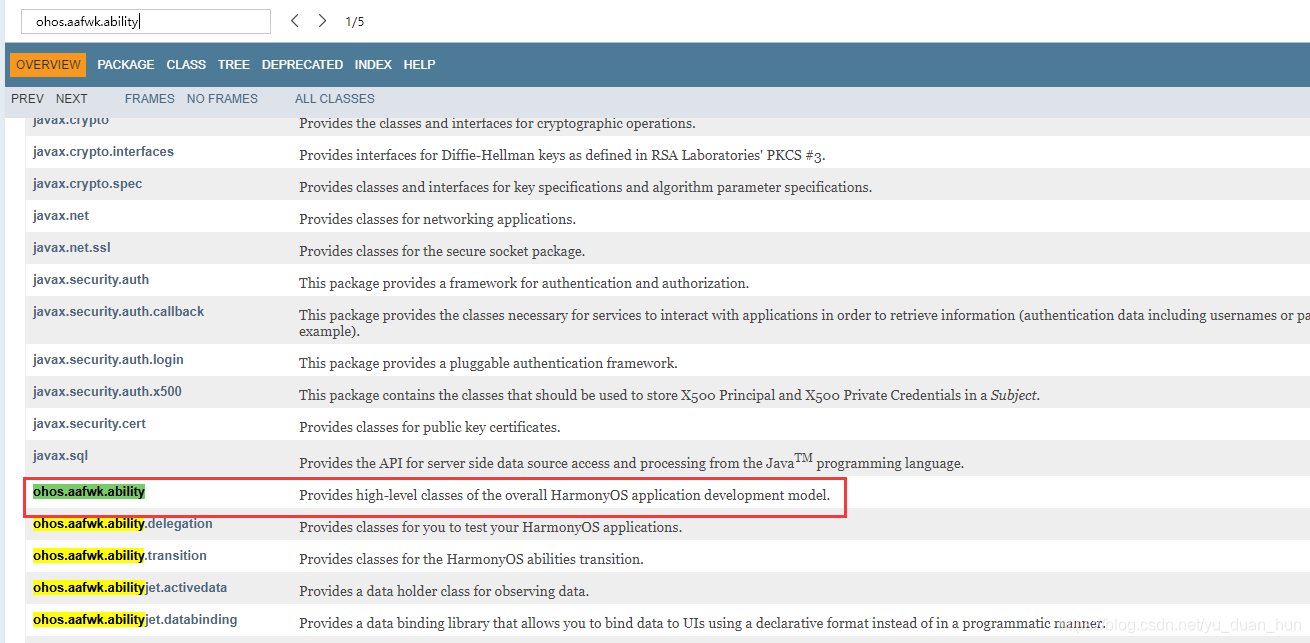

ok,浏览器里ctrl+F查一查
在这里插入图片描述

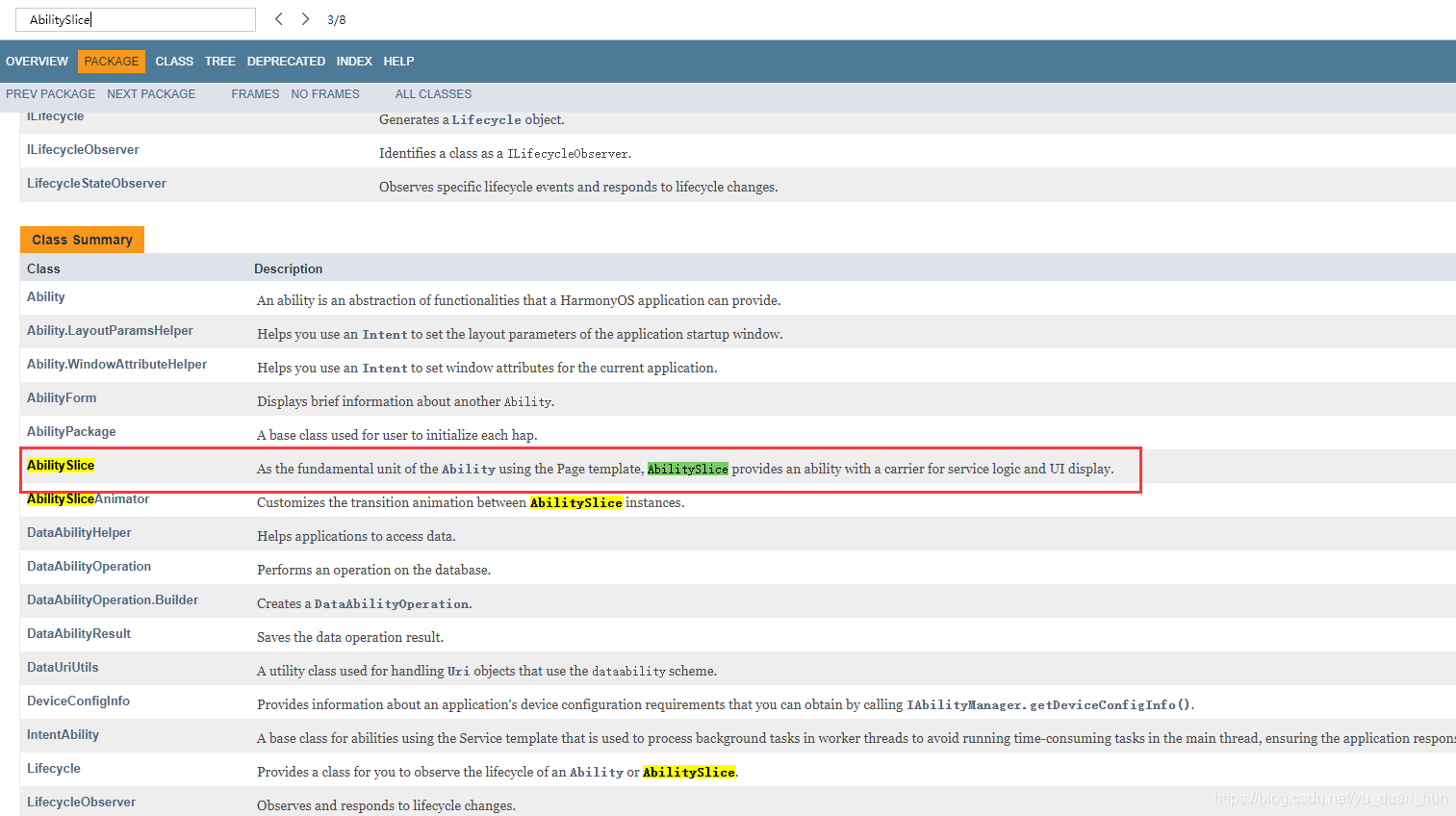

找到啦,打开看看,继续ctrl+F找类名
在这里插入图片描述

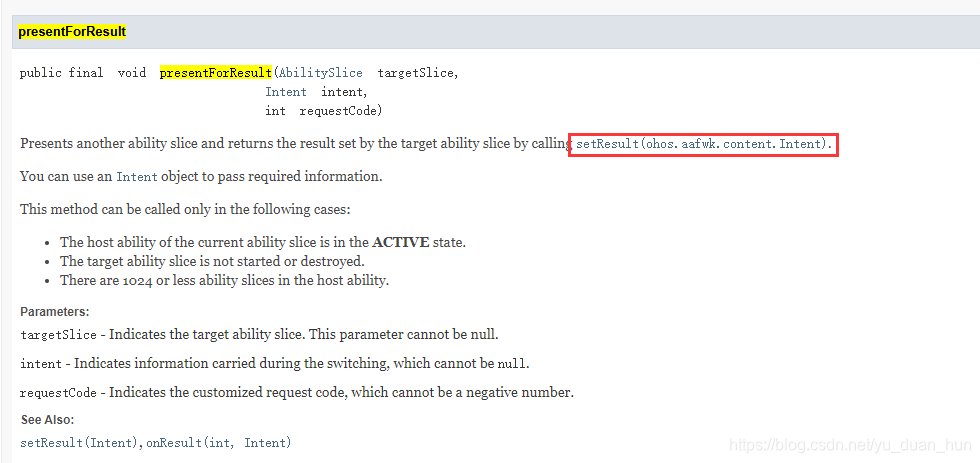

这次我们可以查,presentForResult是怎么用了:
在这里插入图片描述

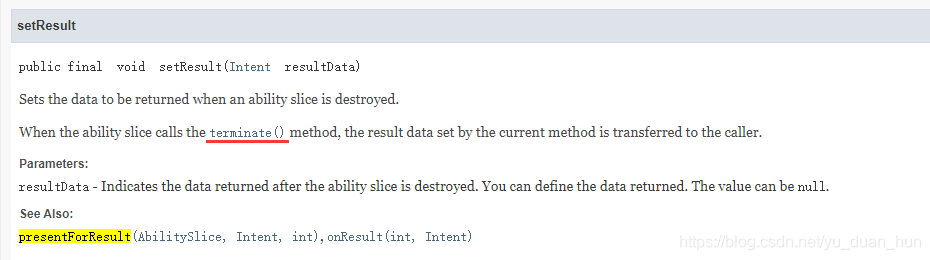

返回用这个,接着看一下setResult
在这里插入图片描述
停止用terminate(),OK,终于会了。

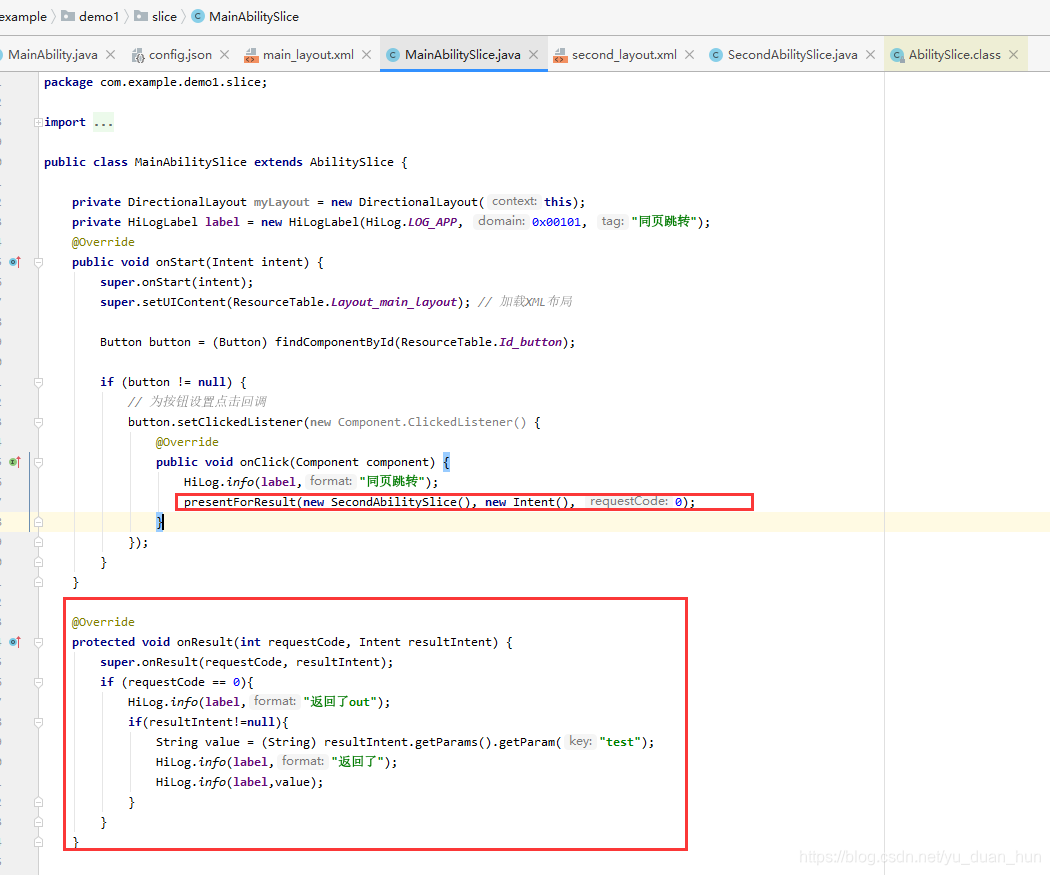

在这里插入图片描述
在这里插入图片描述

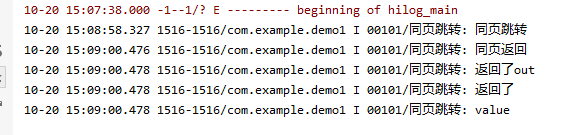

运行看看:
在这里插入图片描述
搞定。
附两个主要类的源码,两个xml放这里了

public class MainAbilitySlice extends AbilitySlice {

    private DirectionalLayout myLayout = new DirectionalLayout(this);
    private HiLogLabel label = new HiLogLabel(HiLog.LOG_APP, 0x00101, "同页跳转");
    @Override
    public void onStart(Intent intent) {
        super.onStart(intent);
        super.setUIContent(ResourceTable.Layout_main_layout); // 加载XML布局

        Button button = (Button) findComponentById(ResourceTable.Id_button);

        if (button != null) {
            // 为按钮设置点击回调
            button.setClickedListener(new Component.ClickedListener() {
                @Override
                public void onClick(Component component) {
                    HiLog.info(label,"同页跳转");
                    presentForResult(new SecondAbilitySlice(), new Intent(), 0);
                }
            });
        }
    }

    @Override
    protected void onResult(int requestCode, Intent resultIntent) {
        super.onResult(requestCode, resultIntent);
        if (requestCode == 0){
            HiLog.info(label,"返回了out");
            if(resultIntent!=null){
                String value = (String) resultIntent.getParams().getParam("test");
                HiLog.info(label,"返回了");
                HiLog.info(label,value);
            }
        }
    }

    @Override
    public void onActive() {
        super.onActive();
    }

    @Override
    public void onForeground(Intent intent) {
        super.onForeground(intent);
    }
}
public class SecondAbilitySlice extends AbilitySlice {

    private DirectionalLayout myLayout = new DirectionalLayout(this);
    private HiLogLabel label = new HiLogLabel(HiLog.LOG_APP, 0x00101, "同页跳转");
    @Override
    public void onStart(Intent intent) {
        super.onStart(intent);
        super.setUIContent(ResourceTable.Layout_second_layout); // 加载XML布局

        Button button = (Button) findComponentById(ResourceTable.Id_btn_back);

        if (button != null) {
            // 为按钮设置点击回调
            button.setClickedListener(new Component.ClickedListener() {
                @Override
                public void onClick(Component component) {
                    HiLog.info(label,"同页返回");
                    Intent data = new Intent();
                    data.setParam("test","value");
                    setResult(data);
                    terminate();
                }
            });
        }
    }

    @Override
    protected void onInactive() {
        super.onInactive();
    }

    @Override
    public void onActive() {
        super.onActive();
    }

    @Override
    public void onForeground(Intent intent) {
        super.onForeground(intent);
    }
}

main_layout.xml

<?xml version="1.0" encoding="utf-8"?>
<DependentLayout
        xmlns:ohos="http://schemas.huawei.com/res/ohos"
        ohos:width="match_parent"
        ohos:height="match_parent"
        ohos:background_element="#000000">
    <Text
            ohos:id="$+id:text"
            ohos:width="match_content"
            ohos:height="match_content"
            ohos:center_in_parent="true"
            ohos:text="I am black"
            ohos:text_color="white"
            ohos:text_size="32fp"/>
    <Button
            ohos:id="$+id:button"
            ohos:width="match_content"
            ohos:height="match_content"
            ohos:text_size="19fp"
            ohos:text="Next"
            ohos:top_padding="8vp"
            ohos:bottom_padding="8vp"
            ohos:right_padding="80vp"
            ohos:left_padding="80vp"
            ohos:text_color="white"
            ohos:background_element="$graphic:button_element"
            ohos:center_in_parent="true"
            ohos:align_parent_bottom="true"/>
</DependentLayout>
<?xml version="1.0" encoding="utf-8"?>
<DependentLayout
        xmlns:ohos="http://schemas.huawei.com/res/ohos"
        ohos:width="match_parent"
        ohos:height="match_parent"
        ohos:background_element="#000000">
    <Text
            ohos:id="$+id:txt_content"
            ohos:width="match_content"
            ohos:height="match_content"
            ohos:center_in_parent="true"
            ohos:text="I am page"
            ohos:text_color="white"
            ohos:text_size="32fp"/>
    <Button
            ohos:id="$+id:btn_back"
            ohos:width="match_content"
            ohos:height="match_content"
            ohos:text_size="19fp"
            ohos:text="Back"
            ohos:top_padding="8vp"
            ohos:bottom_padding="8vp"
            ohos:right_padding="80vp"
            ohos:left_padding="80vp"
            ohos:text_color="white"
            ohos:background_element="$graphic:button_element"
            ohos:center_in_parent="true"
            ohos:align_parent_bottom="true"/>
</DependentLayout>

写在最后: 实际测试发现,同Page间跳转,如果按钮在onStart()初始化控件,terminate返回后,按钮失效,无法再次点击,读者可自行尝试在onForeground()重载页面控件。

补充:后面发现,官网地址 直接在这里的放大镜找类名有同样的效果,不用查原文档

按钮失败问题,看到ZZR在B站的视频下面有人评论说到:请求参数返回,拿到can not find focus,这个问题我也遇到了,
ZZR回复:你是不是调整按钮的参数了,即使把按钮的大小调整成是内容大小了,现在有个bug就是调整了按钮的大小参数,会引发鸿蒙的一个bug,就是点击区域变得很小很小,在按钮的上边缘。你试试

实测还是不行,pageslice级别的还是有问题,ability级别的正常,如果有人解决,欢迎解惑。
