三方库适配实战:将Axios网络库迁移到鸿蒙平台
#跟着fruge365老师学鸿蒙# #鸿蒙# #harmonyOs# #三方库#
·
三方库适配实战:将Axios网络库迁移到鸿蒙平台
本文基于真实可运行的鸿蒙项目,完整展示如何将流行的Axios HTTP客户端库适配到HarmonyOS平台。
引言
在Web和Node.js开发中,Axios是最受欢迎的HTTP客户端库之一,拥有简洁的API、强大的拦截器机制和完善的错误处理。当我们将应用迁移到鸿蒙平台时,如何让熟悉的Axios继续工作?本文将以一个真实可运行的案例,详细讲解如何将Axios适配到鸿蒙平台,让您在鸿蒙开发中也能享受Axios带来的便利。
项目背景
我们要开发一个鸿蒙应用,需要调用JSONPlaceholder的RESTful API获取用户数据。团队成员都习惯使用Axios,希望能在鸿蒙平台上继续使用相同的API风格。因此,我们创建了一个Axios适配层,底层使用鸿蒙的@ohos.net.http模块,上层保持Axios的API接口。

Demo演示功能:
- 首页快速测试网络请求
- 用户列表页面展示
- 用户详情查看与编辑
- 完整的加载状态和错误处理

核心目标
- 保持Axios的核心API风格(get、post、put、delete等)
- 支持超时控制和错误处理
- 完全基于鸿蒙原生API实现
- 提供完整的TypeScript类型支持
- 严格遵守ArkTS语法规范
一、ArkTS语法限制与解决方案
在开始实现之前,必须了解ArkTS的严格语法限制:
1.1 主要限制
| 限制类型 | 说明 | 解决方案 |
|---|---|---|
| 不支持any/unknown | 必须使用显式类型 | 使用Object、string或自定义类型 |
| 对象字面量不能作为类型 | 不能用interface定义复杂类型 |
改用class定义 |
| 不支持for...in循环 | 不能遍历对象属性 | 使用Map数据结构和forEach |
| 不支持展开运算符 | ...obj语法不可用 |
手动复制属性或使用Map |
| throw语句限制 | 只能throw Error类型 | 自定义Error子类 |
| 索引访问限制 | obj['key']不可用 |
使用点访问或Map |
1.2 类型系统差异
// 原始Axios写法(不符合ArkTS)
interface Config {
headers?: Record<string, string>;
data?: any;
}
// ArkTS兼容写法
export class Config {
headers: Map<string, string> = new Map();
data: string = '';
}
二、完整实现代码
2.1 核心类型定义
// entry/src/main/ets/common/utils/HarmonyAxios.ets
import http from '@ohos.net.http';
/**
* HTTP请求方法枚举
* 注意:ArkTS的@ohos.net.http只支持常见方法
*/
export enum Method {
GET = 'GET',
POST = 'POST',
PUT = 'PUT',
DELETE = 'DELETE'
}
/**
* 请求配置类(使用class替代interface以符合ArkTS规范)
*/
export class AxiosRequestConfig {
url: string = '';
method: Method = Method.GET;
baseURL: string = '';
headers: Map<string, string> = new Map(); // 使用Map替代Record
params: Map<string, string> = new Map();
data: string = ''; // 明确类型为string
timeout: number = 60000;
}
/**
* 响应数据类
*/
export class AxiosResponse<T> {
data: T;
status: number = 0;
statusText: string = '';
headers: Map<string, string> = new Map();
config: AxiosRequestConfig = new AxiosRequestConfig();
constructor(data: T) {
this.data = data;
}
}
/**
* 错误类
*/
export class AxiosError extends Error {
config: AxiosRequestConfig = new AxiosRequestConfig();
code: string = '';
status: number = 0;
isAxiosError: boolean = true;
constructor(message: string) {
super(message);
}
}
2.2 HarmonyAxios核心实现
/**
* HarmonyAxios - 符合ArkTS规范的Axios适配器
*/
export class HarmonyAxios {
private defaultConfig: AxiosRequestConfig = new AxiosRequestConfig();
constructor() {
this.defaultConfig.timeout = 60000;
this.defaultConfig.headers.set('Content-Type', 'application/json');
}
/**
* 设置基础URL
*/
setBaseURL(url: string): void {
this.defaultConfig.baseURL = url;
}
/**
* 设置超时时间
*/
setTimeout(timeout: number): void {
this.defaultConfig.timeout = timeout;
}
/**
* 设置请求头
*/
setHeader(key: string, value: string): void {
this.defaultConfig.headers.set(key, value);
}
/**
* 合并配置(避免使用展开运算符)
*/
private mergeConfig(config: AxiosRequestConfig): AxiosRequestConfig {
const merged = new AxiosRequestConfig();
merged.url = config.url || this.defaultConfig.url;
merged.method = config.method || this.defaultConfig.method;
merged.baseURL = config.baseURL || this.defaultConfig.baseURL;
merged.data = config.data || this.defaultConfig.data;
merged.timeout = config.timeout || this.defaultConfig.timeout;
// 使用Map.forEach替代for...in
this.defaultConfig.headers.forEach((value: string, key: string) => {
merged.headers.set(key, value);
});
config.headers.forEach((value: string, key: string) => {
merged.headers.set(key, value);
});
// 合并params
this.defaultConfig.params.forEach((value: string, key: string) => {
merged.params.set(key, value);
});
config.params.forEach((value: string, key: string) => {
merged.params.set(key, value);
});
return merged;
}
/**
* 构建查询字符串
*/
private buildQueryString(params: Map<string, string>): string {
if (params.size === 0) {
return '';
}
const parts: string[] = [];
params.forEach((value: string, key: string) => {
parts.push(`${encodeURIComponent(key)}=${encodeURIComponent(value)}`);
});
return '?' + parts.join('&');
}
/**
* 核心请求方法
*/
async request<T>(config: AxiosRequestConfig): Promise<AxiosResponse<T>> {
const finalConfig = this.mergeConfig(config);
// 构建完整URL
let fullUrl = finalConfig.baseURL + finalConfig.url;
if (finalConfig.params.size > 0) {
fullUrl += this.buildQueryString(finalConfig.params);
}
const httpRequest = http.createHttp();
try {
// 转换Map为Record对象(鸿蒙HTTP API需要)
const headerObj: Record<string, string> = {};
finalConfig.headers.forEach((value: string, key: string) => {
headerObj[key] = value;
});
// 转换HTTP方法
let requestMethod = http.RequestMethod.GET;
if (finalConfig.method === Method.GET) {
requestMethod = http.RequestMethod.GET;
} else if (finalConfig.method === Method.POST) {
requestMethod = http.RequestMethod.POST;
} else if (finalConfig.method === Method.PUT) {
requestMethod = http.RequestMethod.PUT;
} else if (finalConfig.method === Method.DELETE) {
requestMethod = http.RequestMethod.DELETE;
}
// 发送请求
const httpResponse = await httpRequest.request(fullUrl, {
method: requestMethod,
header: headerObj,
extraData: finalConfig.data,
readTimeout: finalConfig.timeout,
connectTimeout: finalConfig.timeout
});
httpRequest.destroy();
// 解析响应数据
let responseData: T;
if (typeof httpResponse.result === 'string') {
try {
responseData = JSON.parse(httpResponse.result) as T;
} catch (e) {
responseData = httpResponse.result as T;
}
} else {
responseData = httpResponse.result as T;
}
// 构建响应对象
const response = new AxiosResponse<T>(responseData);
response.status = httpResponse.responseCode;
response.statusText = httpResponse.responseCode === 200 ? 'OK' : 'Error';
response.config = finalConfig;
// 检查HTTP状态码
if (httpResponse.responseCode < 200 || httpResponse.responseCode >= 300) {
const error = new AxiosError(`Request failed with status code ${httpResponse.responseCode}`);
error.config = finalConfig;
error.status = httpResponse.responseCode;
throw error;
}
return response;
} catch (e) {
httpRequest.destroy();
if (e instanceof AxiosError) {
throw e;
}
const error = new AxiosError('Network error');
error.config = finalConfig;
throw error;
}
}
/**
* GET请求
*/
async get<T>(url: string): Promise<AxiosResponse<T>> {
const config = new AxiosRequestConfig();
config.url = url;
config.method = Method.GET;
return this.request<T>(config);
}
/**
* POST请求
*/
async post<T>(url: string, data: string): Promise<AxiosResponse<T>> {
const config = new AxiosRequestConfig();
config.url = url;
config.method = Method.POST;
config.data = data;
return this.request<T>(config);
}
/**
* PUT请求
*/
async put<T>(url: string, data: string): Promise<AxiosResponse<T>> {
const config = new AxiosRequestConfig();
config.url = url;
config.method = Method.PUT;
config.data = data;
return this.request<T>(config);
}
/**
* DELETE请求
*/
async delete<T>(url: string): Promise<AxiosResponse<T>> {
const config = new AxiosRequestConfig();
config.url = url;
config.method = Method.DELETE;
return this.request<T>(config);
}
}
/**
* 创建实例
*/
export function create(baseURL: string): HarmonyAxios {
const instance = new HarmonyAxios();
instance.setBaseURL(baseURL);
return instance;
}
/**
* 默认实例
*/
const defaultInstance = new HarmonyAxios();
export default defaultInstance;
三、实战应用场景
3.1 API配置
创建全局API客户端实例:
// entry/src/main/ets/common/utils/ApiConfig.ets
import { create } from './HarmonyAxios';
// 使用JSONPlaceholder作为测试API
const apiClient = create('https://jsonplaceholder.typicode.com');
apiClient.setTimeout(30000);
apiClient.setHeader('Content-Type', 'application/json');
export default apiClient;
3.2 用户服务封装
// entry/src/main/ets/services/UserService.ets
import apiClient from '../common/utils/ApiConfig';
// 用户数据类(使用class替代interface)
export class UserAddress {
street: string = '';
suite: string = '';
city: string = '';
zipcode: string = '';
}
export class UserCompany {
name: string = '';
catchPhrase: string = '';
bs: string = '';
}
export class User {
id: number = 0;
name: string = '';
username: string = '';
email: string = '';
phone: string = '';
website: string = '';
address: UserAddress = new UserAddress();
company: UserCompany = new UserCompany();
}
class UserService {
/**
* 获取单个用户信息
*/
async getUserInfo(userId: number): Promise<User> {
const response = await apiClient.get<User>(`/users/${userId}`);
return response.data;
}
/**
* 获取用户列表
*/
async getUserList(): Promise<User[]> {
const response = await apiClient.get<User[]>('/users');
return response.data;
}
/**
* 更新用户信息
*/
async updateUserInfo(userId: number, name: string, email: string): Promise<boolean> {
const data = JSON.stringify({ name: name, email: email });
const response = await apiClient.put<User>(`/users/${userId}`, data);
return response.status === 200;
}
/**
* 创建用户
*/
async createUser(name: string, email: string): Promise<User> {
const data = JSON.stringify({ name: name, email: email });
const response = await apiClient.post<User>('/users', data);
return response.data;
}
/**
* 删除用户
*/
async deleteUser(userId: number): Promise<boolean> {
const response = await apiClient.delete<Object>(`/users/${userId}`);
return response.status === 200;
}
}
const userService = new UserService();
export default userService;

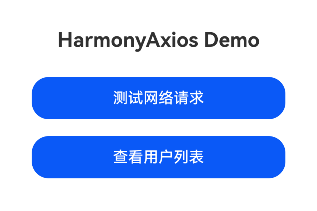

3.3 首页 - 快速测试
// entry/src/main/ets/pages/Index.ets
import router from '@ohos.router';
import axios from '../common/utils/HarmonyAxios';
import { User } from '../services/UserService';
@Entry
@Component
struct Index {
@State message: string = 'HarmonyAxios Demo';
@State testResult: string = '';
@State isLoading: boolean = false;
async testAxios() {
this.isLoading = true;
this.testResult = '请求中...';
try {
// 设置API地址
axios.setBaseURL('https://jsonplaceholder.typicode.com');
const response = await axios.get<User>('/users/1');
const user = response.data;
this.testResult = `请求成功!\n用户: ${user.name}\n邮箱: ${user.email}`;
} catch (e) {
this.testResult = `请求失败`;
} finally {
this.isLoading = false;
}
}
navigateToUserList() {
try {
router.pushUrl({ url: 'pages/UserList' });
} catch (e) {
console.error('Navigation failed');
}
}
build() {
Column() {
Text(this.message)
.fontSize(24)
.fontWeight(FontWeight.Bold)
.margin({ top: 50, bottom: 30 })
Button('测试网络请求')
.width('80%')
.height(50)
.fontSize(18)
.onClick(() => this.testAxios())
Button('查看用户列表')
.width('80%')
.height(50)
.fontSize(18)
.margin({ top: 20 })
.onClick(() => this.navigateToUserList())
if (this.isLoading) {
LoadingProgress()
.width(50)
.height(50)
.margin({ top: 30 })
}
if (this.testResult) {
Text(this.testResult)
.fontSize(14)
.width('80%')
.margin({ top: 30 })
.padding(15)
.backgroundColor('#F5F5F5')
.borderRadius(8)
}
}
.width('100%')
.height('100%')
.justifyContent(FlexAlign.Center)
.alignItems(HorizontalAlign.Center)
}
}

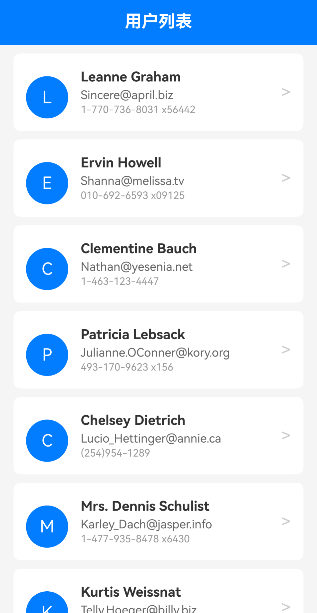

3.4 用户列表页面
// entry/src/main/ets/pages/UserList.ets
import router from '@ohos.router';
import UserService, { User } from '../services/UserService';
// 路由参数类(避免使用any类型)
class RouterParams {
userId: number = 0;
}
@Entry
@Component
struct UserList {
@State users: User[] = [];
@State isLoading: boolean = false;
@State errorMessage: string = '';
aboutToAppear() {
this.loadUsers();
}
async loadUsers() {
this.isLoading = true;
this.errorMessage = '';
try {
this.users = await UserService.getUserList();
} catch (e) {
this.errorMessage = '加载失败,请稍后重试';
console.error('加载用户列表失败');
} finally {
this.isLoading = false;
}
}
navigateToDetail(userId: number) {
try {
const params = new RouterParams();
params.userId = userId;
router.pushUrl({
url: 'pages/UserDetail',
params: params
});
} catch (e) {
console.error('Navigation failed');
}
}
build() {
Column() {
// 标题栏
Row() {
Text('用户列表')
.fontSize(20)
.fontWeight(FontWeight.Bold)
.fontColor(Color.White)
}
.width('100%')
.height(56)
.backgroundColor('#007DFF')
.padding({ left: 16, right: 16 })
.justifyContent(FlexAlign.Center)
if (this.isLoading) {
Column() {
LoadingProgress()
.width(50)
.height(50)
.color('#007DFF')
Text('加载中...')
.fontSize(14)
.fontColor('#666666')
.margin({ top: 10 })
}
.width('100%')
.layoutWeight(1)
.justifyContent(FlexAlign.Center)
} else if (this.errorMessage) {
Column() {
Text(this.errorMessage)
.fontSize(14)
.fontColor(Color.Red)
Button('重试')
.margin({ top: 20 })
.onClick(() => this.loadUsers())
}
.width('100%')
.layoutWeight(1)
.justifyContent(FlexAlign.Center)
} else {
List({ space: 10 }) {
ForEach(this.users, (user: User) => {
ListItem() {
Row() {
// 头像(使用首字母)
Text(user.name.charAt(0).toUpperCase())
.fontSize(20)
.fontColor(Color.White)
.width(50)
.height(50)
.borderRadius(25)
.backgroundColor('#007DFF')
.textAlign(TextAlign.Center)
.margin({ top: 12 })
// 用户信息
Column() {
Text(user.name)
.fontSize(16)
.fontWeight(FontWeight.Bold)
.fontColor('#333333')
Text(user.email)
.fontSize(14)
.fontColor('#666666')
.margin({ top: 4 })
Text(user.phone)
.fontSize(12)
.fontColor('#999999')
.margin({ top: 2 })
}
.alignItems(HorizontalAlign.Start)
.margin({ left: 15 })
.layoutWeight(1)
Text('>')
.fontSize(20)
.fontColor('#CCCCCC')
}
.width('100%')
.padding(15)
.backgroundColor(Color.White)
.borderRadius(8)
.onClick(() => this.navigateToDetail(user.id))
}
})
}
.width('100%')
.layoutWeight(1)
.padding({ left: 16, right: 16, top: 10, bottom: 10 })
}
}
.width('100%')
.height('100%')
.backgroundColor('#F5F5F5')
}
}
3.5 用户详情页面
// entry/src/main/ets/pages/UserDetail.ets
import router from '@ohos.router';
import promptAction from '@ohos.promptAction';
import UserService, { User } from '../services/UserService';
class RouterParams {
userId: number = 0;
}
@Entry
@Component
struct UserDetail {
@State userInfo: User | null = null;
@State isLoading: boolean = false;
@State errorMessage: string = '';
@State isEditing: boolean = false;
@State editName: string = '';
@State editEmail: string = '';
private userId: number = 0;
aboutToAppear() {
try {
const params = router.getParams() as RouterParams;
if (params) {
this.userId = params.userId;
}
} catch (e) {
this.userId = 1;
}
this.loadUserDetail();
}
async loadUserDetail() {
this.isLoading = true;
this.errorMessage = '';
try {
this.userInfo = await UserService.getUserInfo(this.userId);
if (this.userInfo) {
this.editName = this.userInfo.name;
this.editEmail = this.userInfo.email;
}
} catch (e) {
this.errorMessage = '加载失败,请稍后重试';
console.error('加载用户详情失败');
} finally {
this.isLoading = false;
}
}
async saveChanges() {
if (!this.userInfo) return;
try {
const result = await UserService.updateUserInfo(
this.userId,
this.editName,
this.editEmail
);
if (result) {
try {
promptAction.showToast({ message: '保存成功', duration: 2000 });
} catch (e) {
console.info('保存成功');
}
this.isEditing = false;
await this.loadUserDetail();
}
} catch (e) {
console.error('保存失败');
try {
promptAction.showToast({ message: '保存失败', duration: 2000 });
} catch (e2) {
console.error('Toast failed');
}
}
}
build() {
Column() {
// 标题栏
Row() {
Text('<')
.fontSize(24)
.fontColor(Color.White)
.onClick(() => {
try {
router.back();
} catch (e) {
console.error('Back failed');
}
})
Text('用户详情')
.fontSize(20)
.fontWeight(FontWeight.Bold)
.fontColor(Color.White)
.layoutWeight(1)
.textAlign(TextAlign.Center)
Text(this.isEditing ? '保存' : '编辑')
.fontSize(16)
.fontColor(Color.White)
.onClick(() => {
if (this.isEditing) {
this.saveChanges();
} else {
this.isEditing = true;
}
})
}
.width('100%')
.height(56)
.backgroundColor('#007DFF')
.padding({ left: 16, right: 16 })
.justifyContent(FlexAlign.SpaceBetween)
if (this.isLoading) {
Column() {
LoadingProgress()
.width(50)
.height(50)
.color('#007DFF')
Text('加载中...')
.fontSize(14)
.fontColor('#666666')
.margin({ top: 10 })
}
.width('100%')
.layoutWeight(1)
.justifyContent(FlexAlign.Center)
} else if (this.errorMessage) {
Column() {
Text(this.errorMessage)
.fontSize(14)
.fontColor(Color.Red)
Button('重试')
.margin({ top: 20 })
.onClick(() => this.loadUserDetail())
}
.width('100%')
.layoutWeight(1)
.justifyContent(FlexAlign.Center)
} else if (this.userInfo) {
Scroll() {
Column() {
// 头像
Text(this.userInfo.name.charAt(0).toUpperCase())
.fontSize(40)
.fontColor(Color.White)
.width(100)
.height(100)
.borderRadius(50)
.backgroundColor('#007DFF')
.textAlign(TextAlign.Center)
.margin({ top: 30, bottom: 8 })
// 基本信息卡片
Column() {
if (this.isEditing) {
// 编辑模式
Column() {
Text('姓名')
.fontSize(14)
.fontColor('#666666')
.width('100%')
TextInput({ text: this.editName })
.fontSize(16)
.margin({ top: 5 })
.onChange((value: string) => {
this.editName = value;
})
}
.alignItems(HorizontalAlign.Start)
.width('100%')
.margin({ bottom: 15 })
Column() {
Text('邮箱')
.fontSize(14)
.fontColor('#666666')
.width('100%')
TextInput({ text: this.editEmail })
.fontSize(16)
.margin({ top: 5 })
.onChange((value: string) => {
this.editEmail = value;
})
}
.alignItems(HorizontalAlign.Start)
.width('100%')
.margin({ bottom: 15 })
} else {
// 查看模式
this.InfoRow('姓名', this.userInfo.name)
this.InfoRow('用户名', this.userInfo.username)
this.InfoRow('邮箱', this.userInfo.email)
}
this.InfoRow('电话', this.userInfo.phone)
this.InfoRow('网站', this.userInfo.website)
if (this.userInfo.address) {
this.InfoRow('地址', `${this.userInfo.address.city}, ${this.userInfo.address.street}`)
}
if (this.userInfo.company) {
this.InfoRow('公司', this.userInfo.company.name)
}
}
.width('100%')
.backgroundColor(Color.White)
.borderRadius(8)
.padding(20)
.margin({ top: 20 })
if (this.isEditing) {
Button('取消')
.width('100%')
.height(45)
.margin({ top: 20 })
.backgroundColor('#CCCCCC')
.onClick(() => {
this.isEditing = false;
if (this.userInfo) {
this.editName = this.userInfo.name;
this.editEmail = this.userInfo.email;
}
})
}
}
.width('100%')
.padding(20)
}
.layoutWeight(1)
}
}
.width('100%')
.height('100%')
.backgroundColor('#F5F5F5')
}
@Builder
InfoRow(label: string, value: string) {
Column() {
Text(label)
.fontSize(14)
.fontColor('#666666')
.width('100%')
Text(value)
.fontSize(16)
.fontColor('#333333')
.width('100%')
.margin({ top: 5 })
}
.alignItems(HorizontalAlign.Start)
.width('100%')
.margin({ bottom: 15 })
}
}
四、项目配置
4.1 配置网络权限
在entry/src/main/module.json5中添加:
{
"module": {
"requestPermissions": [
{
"name": "ohos.permission.INTERNET"
}
]
}
}

4.2 配置页面路由
在entry/src/main/resources/base/profile/main_pages.json中添加:
{
"src": [
"pages/Index",
"pages/UserList",
"pages/UserDetail"
]
}
4.3 项目结构
harmony_axios_demo/
├── entry/
│ └── src/
│ └── main/
│ ├── ets/
│ │ ├── common/
│ │ │ └── utils/
│ │ │ ├── HarmonyAxios.ets # 核心适配器
│ │ │ └── ApiConfig.ets # API配置
│ │ ├── services/
│ │ │ └── UserService.ets # 用户服务
│ │ └── pages/
│ │ ├── Index.ets # 首页
│ │ ├── UserList.ets # 用户列表
│ │ └── UserDetail.ets # 用户详情
│ ├── resources/
│ └── module.json5
└── README.md
五、关键技术点总结
5.1 ArkTS适配要点
-
使用Map替代对象字面量
// 不符合ArkTS headers: Record<string, string> // 符合ArkTS headers: Map<string, string> -
使用forEach替代for...in
// 不符合ArkTS for (const key in obj) { } // 符合ArkTS map.forEach((value, key) => { }) -
明确所有类型,避免any
// 不符合ArkTS data: any // 符合ArkTS data: string -
异常处理必须try-catch
// 所有可能抛出异常的API都要包裹 try { router.pushUrl({ url: 'pages/UserList' }); } catch (e) { console.error('Navigation failed'); }
5.2 HTTP请求处理
- 请求数据序列化:手动调用
JSON.stringify() - 响应数据解析:处理string和object两种情况
- HTTP方法映射:将Method枚举映射到
http.RequestMethod - 资源管理:请求完成后调用
httpRequest.destroy()
5.3 错误处理策略
- 网络错误:捕获连接失败、超时等异常
- HTTP错误:检查状态码,抛出AxiosError
- JSON解析错误:try-catch处理解析失败
- UI反馈:加载状态、错误提示、重试机制
八、参考资源
官方文档
相关技术
更多推荐



所有评论(0)
