引言

在鸿蒙Stage模型中，ExtensionAbility组件是面向特定场景的应用组件，为开发者提供了丰富的扩展能力。与UIAbility不同，ExtensionAbility专注于后台服务、系统集成、特殊功能等非UI场景，是构建完整应用生态的重要组成部分。深入理解ExtensionAbility的类型体系、开发模式以及使用场景，对于开发功能丰富、系统集成的鸿蒙应用至关重要。本文将系统解析ExtensionAbility组件的核心概念、开发实践以及典型应用场景。

一、ExtensionAbility组件体系概述

ExtensionAbility 的核心是 “场景专业化”—— 每种类型对应特定功能场景，选对类型是开发成功的第一步。

1.1 ExtensionAbility设计理念

ExtensionAbility组件是鸿蒙系统为特定场景设计的应用组件，其核心设计理念包括：

设计目标：

• 场景专业化：针对特定使用场景提供专门的能力
• 系统集成：深度集成系统服务，提供标准化接口
• 后台服务：支持无界面的后台服务能力
• 安全隔离：确保扩展能力的安全性和稳定性

1.2 ExtensionAbility类型体系

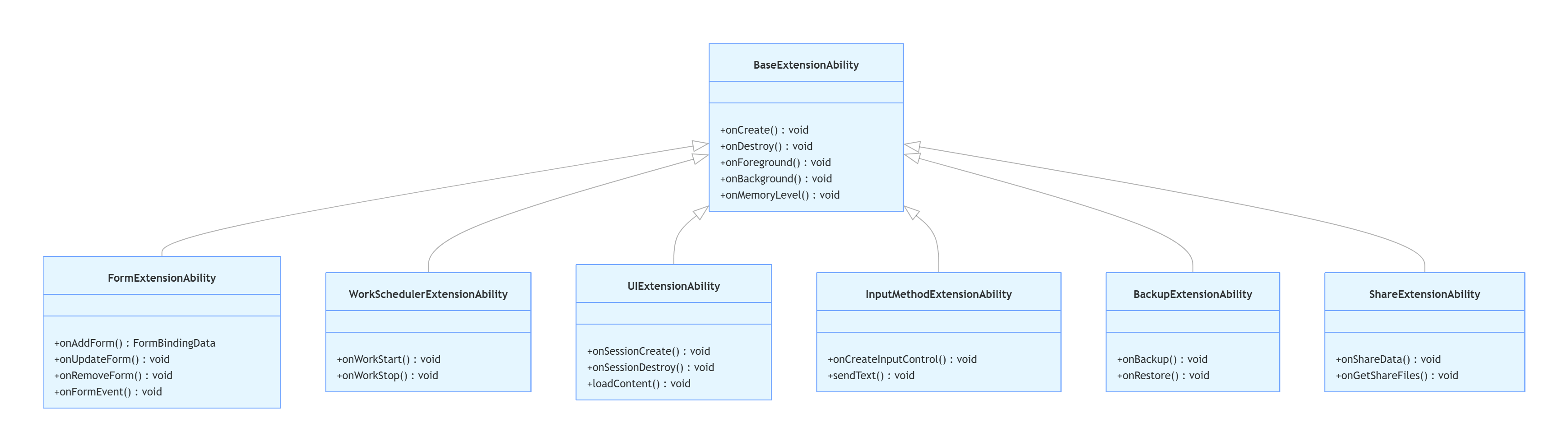

1. 类型继承关系类图

2. 核心类型对比表（开发选型指南）

类型	核心能力	适用场景	关键限制	配置要点
FormExtensionAbility	桌面卡片展示、轻量交互、定时更新	1. 天气 / 步数卡片2. 快捷操作入口（如播放控制）3. 实时数据展示（如股价）	1. 界面尺寸有限（最大 4*4）2. 更新频率受系统限制	1. 需在 profile 中配置卡片尺寸2. exported=true（系统需调用）
WorkSchedulerExtensionAbility	后台任务调度、延迟执行、周期任务	1. 数据同步（如夜间备份）2. 定时提醒（如闹钟）3. 周期性检测（如设备健康）	1. 后台运行受电量限制2. 长时间任务需申请权限	1. 无需 exported（仅应用内调用）2. 需声明后台任务权限
UIExtensionAbility	跨进程 UI 嵌入、多会话管理、独立界面渲染	1. 第三方应用嵌入播放器2. 跨应用文档预览3. 共享组件（如地图控件）	1. 需处理跨进程通信2. 内存占用较高	1. exported=true（外部应用需调用）2. 需配置 URI Scheme
ShareExtensionAbility	系统分享面板集成、多格式数据分享	1. 自定义分享内容（如带链接的图片）2. 对接第三方分享平台（如社交软件）	1. 需符合系统分享协议2. 仅在分享时启动	1. 需配置 skills 为 “ohos.want.action.sendData”2. 需处理多格式数据

二、核心ExtensionAbility开发详解

2.1 FormExtensionAbility开发实战

FormExtensionAbility用于开发服务卡片，提供轻量级的UI展示和交互能力：

import { FormExtensionAbility, formInfo, formBindingData } from '@kit.FormKit';
import { Want } from '@kit.AbilityKit';

export default class MyFormAbility extends FormExtensionAbility {

    // 创建卡片时调用
    onAddForm(want: Want): formBindingData.FormBindingData {
        console.info('FormExtensionAbility onAddForm');

        // 解析卡片配置
        const formId = want.parameters?.['ohos.extra.param.key.form_identity'] as string;
        const formName = want.parameters?.['ohos.extra.param.key.form_name'] as string;

        console.info(`Creating form: ${formName}, ID: ${formId}`);

        // 创建卡片数据
        let formData: Record<string, Object> = {
            'title': '智能卡片',
            'content': '欢迎使用鸿蒙卡片',
            'updateTime': new Date().toLocaleTimeString(),
            'temperature': this.getCurrentTemperature(),
            'weather': this.getCurrentWeather()
        };

        return formBindingData.createFormBindingData(formData);
    }

    // 更新卡片数据
    onUpdateForm(formId: string): void {
        console.info('FormExtensionAbility onUpdateForm for form:', formId);

        // 更新卡片数据
        const updatedData: Record<string, Object> = {
            'title': '智能卡片',
            'content': '数据已更新',
            'updateTime': new Date().toLocaleTimeString(),
            'temperature': this.getCurrentTemperature(),
            'weather': this.getCurrentWeather()
        };

        // 通知卡片更新
        this.updateForm(formId, formBindingData.createFormBindingData(updatedData));
    }

    // 删除卡片时调用
    onRemoveForm(formId: string): void {
        console.info('FormExtensionAbility onRemoveForm for form:', formId);

        // 清理卡片相关资源
        this.cleanupFormResources(formId);
    }

    // 处理卡片事件
    onFormEvent(formId: string, message: string): void {
        console.info(`FormExtensionAbility onFormEvent: form=${formId}, message=${message}`);

        // 处理卡片交互事件
        this.handleFormInteraction(formId, message);
    }

    // 卡片可见性变化
    onVisibilityChange(newStatus: { [key: string]: number }): void {
        console.info('FormExtensionAbility onVisibilityChange:', newStatus);

        // 根据可见性调整卡片行为
        this.adjustFormBehavior(newStatus);
    }

    // 卡片配置更新
    onConfigurationUpdate(config: Configuration): void {
        console.info('FormExtensionAbility onConfigurationUpdate');

        // 响应配置变化
        this.handleConfigurationChange(config);
    }

    private getCurrentTemperature(): number {
        // 模拟获取当前温度
        return 25 + Math.random() * 10;
    }

    private getCurrentWeather(): string {
        // 模拟获取天气信息
        const weatherTypes = ['晴朗', '多云', '小雨', '阴天'];
        return weatherTypes[Math.floor(Math.random() * weatherTypes.length)];
    }

    private handleFormInteraction(formId: string, message: string): void {
        // 处理卡片交互
        switch (message) {
            case 'refresh':
                this.onUpdateForm(formId);
                break;
            case 'open_app':
                this.openMainApplication();
                break;
            default:
                console.info(`Unknown form event: ${message}`);
        }
    }

    private openMainApplication(): void {
        // 打开主应用
        console.info('Opening main application from form');
    }

    private cleanupFormResources(formId: string): void {
        // 清理卡片相关资源
        console.info(`Cleaning up resources for form ${formId}`);
    }

    private adjustFormBehavior(status: { [key: string]: number }): void {
        // 根据可见性调整卡片行为
        console.info('Adjusting form behavior based on visibility');
    }

    private handleConfigurationChange(config: Configuration): void {
        // 处理配置变化
        console.info('Handling configuration change for forms');
    }
}

2.2 WorkSchedulerExtensionAbility开发实战

WorkSchedulerExtensionAbility用于执行延迟任务，支持后台任务调度：

import { WorkSchedulerExtensionAbility } from '@kit.WorkSchedulerKit';
import { WorkInfo } from '@kit.WorkSchedulerKit';

export default class BackgroundWorkAbility extends WorkSchedulerExtensionAbility {

    // 任务开始执行时调用
    onWorkStart(work: WorkInfo): void {
        console.info('WorkSchedulerExtensionAbility onWorkStart');

        const workId = work.workId;
        const bundleName = work.bundleName;
        const abilityName = work.abilityName;

        console.info(`Work started: ID=${workId}, Bundle=${bundleName}, Ability=${abilityName}`);

        // 执行后台任务
        this.executeBackgroundWork(work);
    }

    // 任务停止时调用
    onWorkStop(work: WorkInfo): void {
        console.info('WorkSchedulerExtensionAbility onWorkStop');

        // 清理任务资源
        this.cleanupWorkResources(work);
    }

    private async executeBackgroundWork(work: WorkInfo): Promise<void> {
        const workId = work.workId;

        try {
            console.info(`Executing background work: ${workId}`);

            // 模拟后台数据处理
            await this.processBackgroundData();

            // 模拟网络请求
            await this.performNetworkRequest();

            // 模拟文件操作
            await this.performFileOperations();

            console.info(`Background work ${workId} completed successfully`);

        } catch (error) {
            console.error(`Background work ${workId} failed:`, error);
            this.handleWorkError(work, error);
        }
    }

    private async processBackgroundData(): Promise<void> {
        // 模拟数据处理
        console.info('Processing background data');
        await new Promise(resolve => setTimeout(resolve, 1000));
    }

    private async performNetworkRequest(): Promise<void> {
        // 模拟网络请求
        console.info('Performing network request');
        await new Promise(resolve => setTimeout(resolve, 2000));
    }

    private async performFileOperations(): Promise<void> {
        // 模拟文件操作
        console.info('Performing file operations');
        await new Promise(resolve => setTimeout(resolve, 500));
    }

    private cleanupWorkResources(work: WorkInfo): void {
        // 清理任务资源
        console.info(`Cleaning up resources for work ${work.workId}`);
    }

    private handleWorkError(work: WorkInfo, error: any): void {
        // 处理任务错误
        console.error(`Work ${work.workId} error:`, error);

        // 可以根据错误类型决定是否重试
        if (this.shouldRetryWork(error)) {
            this.scheduleWorkRetry(work);
        }
    }

    private shouldRetryWork(error: any): boolean {
        // 判断是否应该重试任务
        return error instanceof NetworkError;
    }

    private scheduleWorkRetry(work: WorkInfo): void {
        // 调度任务重试
        console.info(`Scheduling retry for work ${work.workId}`);
    }
}

// 自定义错误类型
class NetworkError extends Error {
    constructor(message: string) {
        super(message);
        this.name = 'NetworkError';
    }
}

2.3 UIExtensionAbility开发实战

UIExtensionAbility提供带界面的扩展能力，支持跨进程UI嵌入：

import { UIExtensionAbility } from '@kit.ArkUI';
import { UIExtensionContentSession, UIExtensionContext } from '@kit.ArkUI';

export default class MyUIExtensionAbility extends UIExtensionAbility {

    private sessions: Map<string, UIExtensionContentSession> = new Map();

    // 会话创建时调用
    onSessionCreate(want: Want, session: UIExtensionContentSession): void {
        console.info('UIExtensionAbility onSessionCreate');

        const sessionId = this.generateSessionId();
        this.sessions.set(sessionId, session);

        console.info(`UIExtension session created: ${sessionId}`);

        // 加载扩展UI内容
        this.loadExtensionContent(session, want);

        // 设置会话事件监听
        this.setupSessionEventListeners(session, sessionId);
    }

    // 会话销毁时调用
    onSessionDestroy(session: UIExtensionContentSession): void {
        console.info('UIExtensionAbility onSessionDestroy');

        // 查找并移除会话
        let sessionIdToRemove: string | null = null;
        for (const [id, sess] of this.sessions.entries()) {
            if (sess === session) {
                sessionIdToRemove = id;
                break;
            }
        }

        if (sessionIdToRemove) {
            this.sessions.delete(sessionIdToRemove);
            console.info(`UIExtension session destroyed: ${sessionIdToRemove}`);
        }

        // 清理会话资源
        this.cleanupSessionResources(session);
    }

    private generateSessionId(): string {
        return `session_${Date.now()}_${Math.random().toString(36).substr(2, 9)}`;
    }

    private loadExtensionContent(session: UIExtensionContentSession, want: Want): void {
        // 解析启动参数
        const contentType = want.parameters?.['contentType'] as string || 'default';
        const config = want.parameters?.['config'] as Record<string, any> || {};

        console.info(`Loading extension content of type: ${contentType}`);

        // 根据内容类型加载不同的UI
        switch (contentType) {
            case 'media_player':
                this.loadMediaPlayerUI(session, config);
                break;
            case 'document_viewer':
                this.loadDocumentViewerUI(session, config);
                break;
            case 'custom_widget':
                this.loadCustomWidgetUI(session, config);
                break;
            default:
                this.loadDefaultUI(session, config);
        }
    }

    private loadMediaPlayerUI(session: UIExtensionContentSession, config: Record<string, any>): void {
        const mediaUrl = config.mediaUrl;
        const autoPlay = config.autoPlay || false;

        console.info(`Loading media player UI for: ${mediaUrl}`);

        // 加载媒体播放器UI
        session.loadContent('pages/MediaPlayer', (err, data) => {
            if (err.code) {
                console.error('Failed to load media player UI:', err);
                return;
            }
            console.info('Media player UI loaded successfully');

            // 传递配置参数
            this.sendConfigurationToUI(session, { mediaUrl, autoPlay });
        });
    }

    private loadDocumentViewerUI(session: UIExtensionContentSession, config: Record<string, any>): void {
        const documentPath = config.documentPath;
        const pageNumber = config.pageNumber || 1;

        console.info(`Loading document viewer UI for: ${documentPath}`);

        // 加载文档查看器UI
        session.loadContent('pages/DocumentViewer', (err, data) => {
            if (err.code) {
                console.error('Failed to load document viewer UI:', err);
                return;
            }
            console.info('Document viewer UI loaded successfully');

            // 传递配置参数
            this.sendConfigurationToUI(session, { documentPath, pageNumber });
        });
    }

    private loadCustomWidgetUI(session: UIExtensionContentSession, config: Record<string, any>): void {
        const widgetType = config.widgetType;
        const dataSource = config.dataSource;

        console.info(`Loading custom widget UI of type: ${widgetType}`);

        // 加载自定义组件UI
        session.loadContent('pages/CustomWidget', (err, data) => {
            if (err.code) {
                console.error('Failed to load custom widget UI:', err);
                return;
            }
            console.info('Custom widget UI loaded successfully');

            // 传递配置参数
            this.sendConfigurationToUI(session, { widgetType, dataSource });
        });
    }

    private loadDefaultUI(session: UIExtensionContentSession, config: Record<string, any>): void {
        console.info('Loading default extension UI');

        // 加载默认UI
        session.loadContent('pages/DefaultExtension', (err, data) => {
            if (err.code) {
                console.error('Failed to load default extension UI:', err);
                return;
            }
            console.info('Default extension UI loaded successfully');
        });
    }

    private sendConfigurationToUI(session: UIExtensionContentSession, config: Record<string, any>): void {
        // 向UI传递配置参数
        // 这里可以使用EventHub或其他通信机制
        console.info('Sending configuration to UI:', config);
    }

    private setupSessionEventListeners(session: UIExtensionContentSession, sessionId: string): void {
        // 设置会话事件监听
        session.on('ui_event', (event: any) => {
            this.handleUIEvent(sessionId, event);
        });

        session.on('data_update', (data: any) => {
            this.handleDataUpdate(sessionId, data);
        });

        session.on('session_close', () => {
            this.handleSessionCloseRequest(sessionId);
        });
    }

    private handleUIEvent(sessionId: string, event: any): void {
        console.info(`UI event from session ${sessionId}:`, event);

        // 处理UI事件
        switch (event.type) {
            case 'button_click':
                this.handleButtonClick(sessionId, event.data);
                break;
            case 'selection_change':
                this.handleSelectionChange(sessionId, event.data);
                break;
            case 'input_submit':
                this.handleInputSubmit(sessionId, event.data);
                break;
            default:
                console.warn(`Unknown UI event type: ${event.type}`);
        }
    }

    private handleDataUpdate(sessionId: string, data: any): void {
        console.info(`Data update from session ${sessionId}:`, data);

        // 处理数据更新
        this.processSessionData(sessionId, data);
    }

    private handleSessionCloseRequest(sessionId: string): void {
        console.info(`Session close request from ${sessionId}`);

        // 处理会话关闭请求
        const session = this.sessions.get(sessionId);
        if (session) {
            session.terminate();
        }
    }

    private handleButtonClick(sessionId: string, data: any): void {
        // 处理按钮点击事件
        console.info(`Button click in session ${sessionId}:`, data);
    }

    private handleSelectionChange(sessionId: string, data: any): void {
        // 处理选择变化事件
        console.info(`Selection change in session ${sessionId}:`, data);
    }

    private handleInputSubmit(sessionId: string, data: any): void {
        // 处理输入提交事件
        console.info(`Input submit in session ${sessionId}:`, data);
    }

    private processSessionData(sessionId: string, data: any): void {
        // 处理会话数据
        console.info(`Processing data for session ${sessionId}`);
    }

    private cleanupSessionResources(session: UIExtensionContentSession): void {
        // 清理会话资源
        console.info('Cleaning up session resources');
    }
}

三、ExtensionAbility配置与声明

ExtensionAbility 的配置错误是开发中最常见的问题（如 “卡片不显示”“后台任务不执行”），以下是修正后的配置示例及关键说明。

3.1 module.json5配置详解

ExtensionAbility组件需要在module.json5配置文件中进行详细声明：

{
  "module": {
    "extensionAbilities": [
      {
        "name": "WeatherFormAbility",
        "srcEntry": "./ets/weatherability/WeatherFormAbility.ets",
        "description": "$string:WeatherFormAbility_desc",
        "icon": "$media:weather_icon",
        "label": "$string:WeatherFormAbility_label",
        "type": "form",
        "exported": true,
        "permissions": ["ohos.permission.INTERNET"],
        "metadata": [
          {
            "name": "ohos.extension.form",
            "resource": "$profile:weather_form_config"
          }
        ],
        "skills": [
          {
            "entities": ["entity.system.form"],
            "actions": ["ohos.want.action.viewData"]
          }
        ]
      },
      {
        "name": "BackgroundSyncAbility",
        "srcEntry": "./ets/backgroundability/BackgroundSyncAbility.ets",
        "description": "$string:BackgroundSyncAbility_desc",
        "type": "workScheduler",
        "exported": false,
        "permissions": [
          "ohos.permission.INTERNET",
          "ohos.permission.LOCATION"
        ],
        "skills": [
          {
            "entities": ["entity.system.background"],
            "actions": ["ohos.want.action.scheduleWork"]
          }
        ]
      },
      {
        "name": "MediaExtensionAbility",
        "srcEntry": "./ets/mediaability/MediaExtensionAbility.ets",
        "description": "$string:MediaExtensionAbility_desc",
        "type": "uiExtension",
        "exported": true,
        "permissions": ["ohos.permission.READ_MEDIA"],
        "skills": [
          {
            "entities": ["entity.system.media"],
            "actions": ["ohos.want.action.viewData"],
            "uris": [
              {
                "scheme": "media",
                "host": "player",
                "path": "/embed"
              }
            ]
          }
        ]
      }
    ]
  }
}

3.2 卡片配置文件示例

FormExtensionAbility需要额外的卡片配置文件：

// resources/base/profile/weather_form_config.json
{
  "forms": [
    {
      "name": "weather_widget",
      "description": "$string:weather_widget_desc",
      "src": "./ets/weatherform/pages/WeatherWidget.ets",
      "window": {
        "designWidth": 360,
        "autoDesignWidth": false
      },
      "colorMode": "auto",
      "isDefault": true,
      "updateEnabled": true,
      "scheduledUpdateTime": "08:00",
      "updateDuration": 1,
      "defaultDimension": "2*2",
      "supportDimensions": ["2*2", "2*4", "4*4"]
    }
  ]
}

3.3 配置避坑指南

1. 坑 1：FormExtension 的 src 路径错误

   → 现象：卡片显示空白或 “加载失败”；

   → 解决：src 路径需从 module 根目录开始（如示例中 “./ets/extensions/weatherform/...”），而非相对路径。

2. 坑 2：WorkScheduler 未声明长任务权限

   → 现象：任务执行超过 30 秒被系统杀死；

   → 解决：在 permissions 中添加 “ohos.permission.KEEP_BACKGROUND_RUNNING”，并在代码中申请。

3. 坑 3：UIExtension 的 exported 设为 false

   → 现象：外部应用无法启动嵌入 UI；

   → 解决：exported 必须设为 true，且在 skills 中配置正确的 URI 或 action。

四、ExtensionAbility生命周期管理

不同类型 ExtensionAbility 的生命周期差异较大，错误处理会导致 “内存泄漏”“更新失败” 等问题。

4.1 通用生命周期回调

import { ExtensionAbility } from '@kit.AbilityKit';

export class LifecycleManagedExtension extends ExtensionAbility {

    // ExtensionAbility创建时调用
    onCreate(): void {
        console.info('ExtensionAbility onCreate');

        // 执行初始化操作
        this.performInitialization();
    }

    // ExtensionAbility销毁时调用
    onDestroy(): void {
        console.info('ExtensionAbility onDestroy');

        // 执行清理操作
        this.performCleanup();
    }

    // 应用进入前台时调用
    onForeground(): void {
        console.info('ExtensionAbility onForeground');

        // 恢复扩展能力
        this.resumeExtension();
    }

    // 应用进入后台时调用
    onBackground(): void {
        console.info('ExtensionAbility onBackground');

        // 暂停扩展能力
        this.suspendExtension();
    }

    // 配置更新时调用
    onConfigurationUpdate(config: Configuration): void {
        console.info('ExtensionAbility onConfigurationUpdate');

        // 响应配置变化
        this.handleConfigurationChange(config);
    }

    // 内存级别变化时调用
    onMemoryLevel(level: AbilityConstant.MemoryLevel): void {
        console.info(`ExtensionAbility onMemoryLevel: ${level}`);

        // 根据内存级别调整行为
        this.adjustBehaviorForMemoryLevel(level);
    }

    private performInitialization(): void {
        // 执行初始化操作
        console.info('Performing extension initialization');
    }

    private performCleanup(): void {
        // 执行清理操作
        console.info('Performing extension cleanup');
    }

    private resumeExtension(): void {
        // 恢复扩展能力
        console.info('Resuming extension functionality');
    }

    private suspendExtension(): void {
        // 暂停扩展能力
        console.info('Suspending extension functionality');
    }

    private handleConfigurationChange(config: Configuration): void {
        // 处理配置变化
        console.info('Handling configuration change');
    }

    private adjustBehaviorForMemoryLevel(level: AbilityConstant.MemoryLevel): void {
        // 根据内存级别调整行为
        console.info(`Adjusting behavior for memory level: ${level}`);
    }
}

4.2 类型特定生命周期管理

FormExtensionAbility生命周期

import { FormExtensionAbility } from '@kit.FormKit';

export class FormLifecycleAbility extends FormExtensionAbility {

    private activeForms: Map<string, FormState> = new Map();

    onAddForm(want: Want): formBindingData.FormBindingData {
        const formId = this.extractFormId(want);

        // 记录活跃卡片
        this.activeForms.set(formId, {
            id: formId,
            state: 'active',
            createTime: Date.now()
        });

        console.info(`Form ${formId} added, total active forms: ${this.activeForms.size}`);

        return this.createFormData(want);
    }

    onRemoveForm(formId: string): void {
        // 移除卡片记录
        this.activeForms.delete(formId);

        console.info(`Form ${formId} removed, total active forms: ${this.activeForms.size}`);
    }

    onBackground(): void {
        // 进入后台时暂停卡片更新
        console.info('Pausing form updates in background');
        this.pauseFormUpdates();
    }

    onForeground(): void {
        // 进入前台时恢复卡片更新
        console.info('Resuming form updates in foreground');
        this.resumeFormUpdates();
    }

    onMemoryLevel(level: AbilityConstant.MemoryLevel): void {
        // 根据内存级别管理卡片
        this.manageFormsForMemoryLevel(level);
    }

    private manageFormsForMemoryLevel(level: AbilityConstant.MemoryLevel): void {
        switch (level) {
            case AbilityConstant.MemoryLevel.LOW:
                this.aggressiveFormCleanup();
                break;
            case AbilityConstant.MemoryLevel.MODERATE:
                this.moderateFormCleanup();
                break;
            case AbilityConstant.MemoryLevel.NORMAL:
                this.normalFormMaintenance();
                break;
        }
    }

    private aggressiveFormCleanup(): void {
        // 激进清理：保留最少必要卡片
        console.info('Performing aggressive form cleanup');
    }

    private moderateFormCleanup(): void {
        // 适度清理：释放部分资源
        console.info('Performing moderate form cleanup');
    }

    private normalFormMaintenance(): void {
        // 正常维护：常规资源管理
        console.info('Performing normal form maintenance');
    }

    private extractFormId(want: Want): string {
        return want.parameters?.['ohos.extra.param.key.form_identity'] as string || 'unknown';
    }
}

interface FormState {
    id: string;
    state: 'active' | 'inactive' | 'paused';
    createTime: number;
}

五、实战案例：智能家居扩展应用

实际项目中常需多种 ExtensionAbility 协同（如卡片展示状态 + 后台同步数据 + 跨应用控制），以下是相关案例。

5.1 多ExtensionAbility智能家居应用

// 智能家居FormExtensionAbility
import { FormExtensionAbility, formBindingData } from '@kit.FormKit';

export class SmartHomeFormAbility extends FormExtensionAbility {

    onAddForm(want: Want): formBindingData.FormBindingData {
        const room = want.parameters?.['room'] as string || 'living_room';
        const deviceType = want.parameters?.['deviceType'] as string || 'general';

        console.info(`Creating smart home form for ${room}, device: ${deviceType}`);

        // 根据房间和设备类型创建不同的卡片数据
        const formData = this.createRoomSpecificData(room, deviceType);

        return formBindingData.createFormBindingData(formData);
    }

    onUpdateForm(formId: string): void {
        // 获取设备状态并更新卡片
        const deviceStatus = this.getDeviceStatus(formId);
        const updatedData = this.createUpdatedFormData(deviceStatus);

        this.updateForm(formId, formBindingData.createFormBindingData(updatedData));
    }

    private createRoomSpecificData(room: string, deviceType: string): Record<string, Object> {
        const baseData = {
            'room': room,
            'updateTime': new Date().toLocaleTimeString(),
            'temperature': this.getRoomTemperature(room),
            'humidity': this.getRoomHumidity(room)
        };

        // 根据设备类型添加特定数据
        switch (deviceType) {
            case 'light':
                return {
                    ...baseData,
                    'lightStatus': this.getLightStatus(room),
                    'brightness': this.getLightBrightness(room)
                };
            case 'thermostat':
                return {
                    ...baseData,
                    'targetTemperature': this.getTargetTemperature(room),
                    'mode': this.getThermostatMode(room)
                };
            case 'security':
                return {
                    ...baseData,
                    'securityStatus': this.getSecurityStatus(room),
                    'alarmEnabled': this.isAlarmEnabled(room)
                };
            default:
                return baseData;
        }
    }

    private getRoomTemperature(room: string): number {
        // 模拟获取房间温度
        return 20 + Math.random() * 10;
    }

    private getRoomHumidity(room: string): number {
        // 模拟获取房间湿度
        return 40 + Math.random() * 30;
    }

    // 其他设备状态获取方法...
}

// 智能家居WorkSchedulerExtensionAbility
import { WorkSchedulerExtensionAbility } from '@kit.WorkSchedulerKit';

export class SmartHomeWorkAbility extends WorkSchedulerExtensionAbility {

    onWorkStart(work: WorkInfo): void {
        const workType = work.parameters?.['workType'] as string;

        console.info(`Starting smart home work: ${workType}`);

        switch (workType) {
            case 'temperature_sync':
                this.syncTemperatureData();
                break;
            case 'device_health_check':
                this.performDeviceHealthCheck();
                break;
            case 'energy_usage_report':
                this.generateEnergyReport();
                break;
            default:
                console.warn(`Unknown work type: ${workType}`);
        }
    }

    private async syncTemperatureData(): Promise<void> {
        console.info('Syncing temperature data from all devices');

        // 模拟温度数据同步
        await this.fetchTemperatureFromDevices();
        await this.uploadTemperatureData();

        console.info('Temperature data sync completed');
    }

    private async performDeviceHealthCheck(): Promise<void> {
        console.info('Performing device health check');

        // 模拟设备健康检查
        const deviceStatus = await this.checkAllDevices();
        await this.reportDeviceHealth(deviceStatus);

        console.info('Device health check completed');
    }

    private async generateEnergyReport(): Promise<void> {
        console.info('Generating energy usage report');

        // 模拟能耗报告生成
        const energyData = await this.collectEnergyData();
        await this.createEnergyReport(energyData);

        console.info('Energy usage report generated');
    }

    // 其他后台任务方法...
}

六、总结与展望

6.1 ExtensionAbility 核心价值

1. 场景解耦：将非 UI 能力拆分为独立组件，降低主应用复杂度（如后台任务单独维护）；

2. 系统标准化：无需关注底层实现，即可对接系统能力（如桌面卡片、后台调度）；

3. 跨应用协作：通过标准化接口实现应用间能力共享（如第三方应用嵌入播放器）；

4. 资源优化：系统统一管理 ExtensionAbility 的资源（如低内存时自动回收）。

6.2 开发最佳实践（避坑指南）

场景	最佳实践	常见错误
类型选择	1. 桌面轻量交互→FormExtension2. 后台任务→WorkScheduler3. 跨进程 UI→UIExtension	1. 用 WorkScheduler 做实时更新2. 用 UIExtension 做卡片
配置	1. 对外服务→exported=true2. 卡片 src 路径绝对化3. 长任务声明 KEEP_BACKGROUND_RUNNING	1. 配置路径错误导致卡片不显示2. 未声明权限导致功能失效
生命周期	1. 销毁后不执行操作（用 isDestroyed 标记）2. 后台时暂停非必要更新3. 低内存时释放资源	1. 销毁后仍调用 updateForm2. 不清理定时器导致内存泄漏
通信	1. 跨进程用 session.postMessage2. 卡片跳转用 Want 传递参数3. 后台任务用事件中心解耦	1. 跨进程通信未处理异常2. 卡片跳转未传递上下文参数

ExtensionAbility组件作为鸿蒙应用生态的重要组成部分，为开发者提供了丰富的扩展能力。掌握ExtensionAbility的开发技巧和最佳实践，是构建功能丰富、系统集成的鸿蒙应用的关键。建议开发者在实际项目中不断实践和优化，为鸿蒙生态的繁荣贡献力量。

---

版权声明：本文为原创技术文章，转载请注明出处。
