LTS（light-task-scheduler），是一款分布式任务调度框架，支持实时任务、定时任务、Cron任务。本篇简单概述下其使用方法。

准备工作：

1. 搭建springboot脚手架并成功运行，可参考历史分享springboot+mybatis

2. 启动LTS服务(jobTracker 及 admin)（搭建配置jobTracker服务，后续会在运维章节另行讲述）

1. maven添加LTS依赖

<properties>    <project.build.sourceEncoding>UTF-8</project.build.sourceEncoding>    <project.reporting.outputEncoding>UTF-8</project.reporting.outputEncoding>    <java.version>1.8</java.version>    <lts.version>1.7.2</lts.version></properties>​<dependencies>  <dependency>      <groupId>com.github.ltsopensource</groupId>      <artifactId>lts-tasktracker</artifactId>      <version>${lts.version}</version>  </dependency>  <dependency>      <groupId>com.github.ltsopensource</groupId>      <artifactId>lts-jobclient</artifactId>      <version>${lts.version}</version>  </dependency>  <dependency>      <groupId>com.github.ltsopensource</groupId>      <artifactId>lts-spring</artifactId>      <version>${lts.version}</version>  </dependency>  <dependency>      <groupId>com.github.ltsopensource</groupId>      <artifactId>lts-core</artifactId>      <version>${lts.version}</version>  </dependency>  <dependency>      <groupId>org.mapdb</groupId>      <artifactId>mapdb</artifactId>      <version>2.0-beta10</version>  </dependency>  <dependency>      <groupId>io.netty</groupId>      <artifactId>netty-all</artifactId>      <version>4.1.36.Final</version>  </dependency></dependencies>

2. LTS配置(xml资源文件形式)

2.1 yml

lts:  cluster:    name: my_lts_cluster  registry:    address: zookeeper://192.168.2.7:2181,192.168.2.8:2181,192.168.2.9:2181  jobclient:    nodegroup: order_jobclient  tasktracker:    nodegroup: order_tasktracker

2.2 spring-lts-jobclient.xml

<?xml version="1.0" encoding="UTF-8"?><beans xmlns="http://www.springframework.org/schema/beans"       xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"       xsi:schemaLocation="http://www.springframework.org/schema/beans http://www.springframework.org/schema/beans/spring-beans.xsd">​    <bean id="jobClient" class="com.github.ltsopensource.spring.JobClientFactoryBean" init-method="start">        <property name="clusterName" value="${lts.cluster.name}"/>        <property name="registryAddress" value="${lts.registry.address}"/>        <property name="nodeGroup" value="${lts.jobclient.nodegroup}"/>        <property name="jobCompletedHandler">            <bean class="com.demo.lts.handler.JobCompletedHandlerImpl"/>        </property>        <property name="configs">            <props>                <prop key="job.fail.store">mapdb</prop>            </props>        </property>    </bean>​    <bean id="ltsJobClient" class="com.demo.lts.client.LtsJobClient">        <property name="jobClient" ref="jobClient"/>        <property name="taskTrackerNodeGroups">            <array>                <value>${lts.tasktracker.nodegroup}</value>            </array>        </property>    </bean>​</beans>

2.3 spring-lts-tasktracker.xml

<?xml version="1.0" encoding="UTF-8"?><beans xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"       xmlns="http://www.springframework.org/schema/beans"       xsi:schemaLocation="http://www.springframework.org/schema/beans        http://www.springframework.org/schema/beans/spring-beans-4.0.xsd">​    <bean id="taskTracker" class="com.github.ltsopensource.spring.TaskTrackerAnnotationFactoryBean" init-method="start">        <property name="jobRunnerClass" value="com.github.ltsopensource.spring.tasktracker.JobDispatcher"/>        <!-- shardField:bizType; shardValue:MSG_SUBSCRIBE -->        <property name="shardField" value="bizType"/>        <property name="bizLoggerLevel" value="INFO"/>        <property name="clusterName" value="${lts.cluster.name}"/>        <property name="registryAddress" value="${lts.registry.address}"/>        <property name="nodeGroup" value="${lts.tasktracker.nodegroup}"/>        <property name="workThreads" value="16"/>        <property name="configs">            <props>                <prop key="job.fail.store">mapdb</prop>            </props>        </property>    </bean>​    <bean class="com.github.ltsopensource.spring.tasktracker.Scanner">        <!--  要扫描的JobRunnerItem注解的包 -->        <property name="basePackage" value="com.demo.lts.processer"/>    </bean>​    <!--Cron任务配置-->    <!--定时刷新token-->    <bean id="refreshTokenTask" class="com.demo.lts.RefreshTokenTask"/>    <bean id="quartzTaskRunner" class="com.demo.lts.runner.impl.LtsDispatcherRunner">         <property name="processers">            <list>                <ref bean="refreshTokenTask"/>            </list>        </property>    </bean>    <bean class="com.github.ltsopensource.spring.tasktracker.MethodInvokingJobRunner">        <property name="targetObject" ref="quartzTaskRunner"/>        <property name="targetMethod" value="run"/>        <!-- bizType:QUARTZ_TASK -->        <property name="shardValue" value="QUARTZ_TASK"/>    </bean>​    <!--即时任务或定时任务配置-->    <!--订单支付1小时后通知商家发货-->    <bean id="orderPaymentProcesser" class="com.demo.lts.OrderPaymentProcesser"/>    <bean id="msgSubscribeRunner" class="com.demo.lts.runner.impl.LtsDispatcherRunner">        <property name="processers">            <list>                <ref bean="orderPaymentProcesser"/>            </list>        </property>    </bean>    <bean class="com.github.ltsopensource.spring.tasktracker.MethodInvokingJobRunner">        <property name="targetObject" ref="msgSubscribeRunner"/>        <property name="targetMethod" value="run"/>        <!-- bizType:MSG_SUBSCRIBE -->        <property name="shardValue" value="MSG_SUBSCRIBE"/>    </bean>​</beans>

2.4 扫描加载xml配置资源文件

import org.springframework.context.annotation.Configuration;import org.springframework.context.annotation.ImportResource;​@Configuration@ImportResource(locations = {"classpath:context/*.xml", "classpath:config/*.xml"})public class ResourceConfig {}

3. LTS工具类封装

3.1 LtsJobClient

import com.github.ltsopensource.core.domain.Job;import com.github.ltsopensource.jobclient.JobClient;import com.github.ltsopensource.jobclient.domain.Response;import lombok.extern.slf4j.Slf4j;import org.apache.commons.lang3.StringUtils;​import java.util.Date;import java.util.HashMap;import java.util.Map;​@Slf4jpublic class LtsJobClient {​    private static final ThreadLocal<StringBuilderHelper> threadLocalStringBuilderHolder =            ThreadLocal.withInitial(() -> new StringBuilderHelper(100));​    // 请求参数    private Map<String, String> params = new HashMap<>();​    // 是否要反馈给客户端    private boolean needFeedback = false;​    // 该任务最大的重试次数,默认3次    private int maxRetryTimes = LtsConstant.DEFAULT_MAX_RETRY_TIMES;​    // 当任务队列中存在这个任务的时候，是否替换更新    private boolean replaceOnExist = true;​    // 是否去除重复消息    private boolean isDuplicate = false;​    // 优先级    private LtsConstant.PRIORITY priority = LtsConstant.PRIORITY.DEFAULT;​    // 定时任务    private String cronExpression;​    // 定时任务触发时间, 如果设置了cronExpression，那么这个字段没用    private Date triggerTime;​    // 业务pk id    private String bizId;​    // 业务类型    private String bizType;​    // 事件类型    private String eventType;​    // 节点组    private static String[] taskTrackerNodeGroups;​    // spring 注入    private static JobClient jobClient;​    public static LtsJobClient getInstance(){        return new LtsJobClient();    }​    /**     * spring 注入调用     * @param jobClient     */    public void setJobClient(JobClient jobClient) {        LtsJobClient.jobClient = jobClient;    }​    public static JobClient getJobClient(){        return jobClient;    }​    /**     * 提交任务时若不指定任务执行节点，Spring注入默认配置节点     * @param taskTrackerNodeGroups     */    public void setTaskTrackerNodeGroups(String[] taskTrackerNodeGroups) {        LtsJobClient.taskTrackerNodeGroups = taskTrackerNodeGroups;    }​    /**     * 任务执行节点组     * @param taskTrackerNodeGroups     * @return     */    public LtsJobClient taskTrackerNodeGroup(String... taskTrackerNodeGroups){        LtsJobClient.taskTrackerNodeGroups = taskTrackerNodeGroups;        return this;    }​    /**     * 业务ID     * @param bizId     * @return     */    public LtsJobClient bizId(String bizId) {        this.bizId = bizId;        params.put(LtsConstant.BIZID, bizId);        return this;    }​    /**     * 业务类型     * @param bizType     * @return     */    public LtsJobClient bizType(String bizType) {        this.bizType = bizType;        params.put(LtsConstant.BIZTYPE, bizType);        return this;    }​    /**     * 事件类型     * @param eventType     * @return     */    public LtsJobClient eventType(String eventType) {        this.eventType = eventType;        params.put(LtsConstant.EVENTTYPE, eventType);        return this;    }​    /**     * 消息参数 键值对     * @param key     * @param value     * @return     */    public LtsJobClient setParam(String key,String value){        params.put(key, value);        return this;    }​    public LtsJobClient setReplaceOnExist(boolean replaceOnExist){        this.replaceOnExist = replaceOnExist;        return this;    }​    public LtsJobClient setIsDuplicate(boolean isDuplicate){        this.isDuplicate = isDuplicate;        return this;    }​    /**     * 优先级     * @return     */    public LtsJobClient setPriority(LtsConstant.PRIORITY priority) {        if (priority == null) {            priority = LtsConstant.PRIORITY.DEFAULT;        }        this.priority = priority;        return this;    }​    public LtsJobClient setNeedFeedback(boolean needFeedback){        this.needFeedback = needFeedback;        return this;    }​    public LtsJobClient setMaxRetryTimes(int maxRetryTimes){        this.maxRetryTimes = maxRetryTimes;        return this;    }​    public LtsJobClient setCronExpression(String cronExpression) {        this.cronExpression = cronExpression;        return this;    }​    public LtsJobClient setTriggerTime(Date date) {        this.triggerTime = date;        return this;    }​    /**     * 提交执行任务     * @return     */    public Map<Job, Response> submit(){        if(taskTrackerNodeGroups == null || taskTrackerNodeGroups.length == 0){            throw new IllegalArgumentException("taskTrackerNodeGroups can not be null");        }        if(StringUtils.isEmpty(this.bizType)){            throw new IllegalArgumentException("bizType can not be null");        }        if(StringUtils.isEmpty(this.eventType)){            throw new IllegalArgumentException("eventType can not be null");        }​        if(StringUtils.isEmpty(this.bizId)){            this.bizId = LtsConstant.BIZID;        }​        // 按任务执行节点，分发任务        Map<Job, Response> jobResponseMap = new HashMap<>();        for (String taskTrackerNodeGroup : taskTrackerNodeGroups) {            Job job = this.createJob(taskTrackerNodeGroup);            Response response = jobClient.submitJob(job);            jobResponseMap.put(job, response);        }​        return jobResponseMap;    }​    /**     * 创建job     * @param taskTrackerNodeGroup     * @return     */    private Job createJob(String taskTrackerNodeGroup){        String taskId = this.buildTaskId(taskTrackerNodeGroup, bizId, bizType, eventType);        log.info(taskId);​        Job job = new Job();        job.setTaskId(StringUtils.abbreviate(MD5Util.md5(taskId), 60));        job.setExtParams(this.params);        job.setTaskTrackerNodeGroup(taskTrackerNodeGroup);        job.setNeedFeedback(this.needFeedback);        job.setReplaceOnExist(this.replaceOnExist);        job.setMaxRetryTimes(this.maxRetryTimes);        job.setPriority(this.priority.getLevel());        job.setCronExpression(this.cronExpression);        job.setTriggerDate(this.triggerTime);​        log.info(job.toString());​        return job;    }​    /**     * 更改job事件类型     * @param job     * @param eventType     * @return     */    public static Job createNewJob(Job job, String eventType){        job.setParam(LtsConstant.EVENTTYPE, eventType);        job.setTaskId(StringUtils.abbreviate(job.getTaskId() + "_" + eventType, 60));​        return job;    }​    /**     * 构建taskId     * @param taskTrackerNodeGroup     * @param bizId     * @param bizType     * @param eventType     * @return     */    private String buildTaskId(String taskTrackerNodeGroup, String bizId, String bizType, String eventType){        StringBuilder taskId = threadLocalStringBuilderHolder.get().resetAndGetStringBuilder();        taskId.append(taskTrackerNodeGroups).append("_").append(bizId)                .append("_").append(bizType).append("_").append(eventType);        String addition = this.params.get(LtsConstant.ADDITION);        if(StringUtils.isNotEmpty(addition)){            taskId.append("_").append(addition);        }        if (this.isDuplicate) {            taskId.append("_").append(System.currentTimeMillis());        }​        return taskId.toString();    }​    /**     * 取消job     * @param taskTrackerNodeGroup     * @param bizId     * @param bizType     * @param eventType     * @return     */    public Map<Job, Response> cancelJob(String taskTrackerNodeGroup, String bizId, String bizType, String eventType){        String taskId = this.buildTaskId(taskTrackerNodeGroup, bizId, bizType, eventType);​        Response response = jobClient.cancelJob(StringUtils.abbreviate(MD5Util.md5(taskId), 60), taskTrackerNodeGroup);        Job job = this.createJob(taskTrackerNodeGroup);        Map<Job, Response> responseMap = new HashMap<>();        responseMap.put(job, response);​        return responseMap;    }​    /**     * 可重用的StringBuilder(节约StringBuilder内部的char[])    */     class StringBuilderHelper {            private final StringBuilder stringBuilder;            public StringBuilderHelper(int capacity) {            stringBuilder = new StringBuilder(capacity);        }            /**         * 重置StringBuilder内部的writerIndex, 而char[]保留不动.         */        public StringBuilder resetAndGetStringBuilder() {            stringBuilder.setLength(0);            return stringBuilder;        }    }}

3.2 通用常量定义

public class LtsConstant {​    public static final String BIZID = "bizId";    public static final String BIZTYPE = "bizType";    public static final String EVENTTYPE = "eventType";    public static final String ADDITION = "addition";​    public static final int DEFAULT_MAX_RETRY_TIMES = 2;​    /**     * 业务类型     * spring-lts-tasktracker.xml中     * 指定shardField=“bizType”, shardValue="MSG_SUBSCRIBE"     */    @Getter    public enum BIZ_TYPE{​        QUARTZ_TASK("quartz 定时任务"),​        MSG_SUBSCRIBE("消息订阅");​        private String desc;​        BIZ_TYPE(String desc) {            this.desc = desc;        }    }​    /**     * 业务事件类型     */    @Getter    public enum EVENT_TYPE{​        /** 固定Cron任务, 对应 BIZ_TYPE -> QUARTZ_TASK **/        REFRESH_TOKEN(), // API接口自动化测试 // 0 0 0/1 * * ?​        /** 一次性定时任务, 对应 BIZ_TYPE -> MSG_SUBSCRIBE **/        ORDER_PAYMENT_MSG(),  // 订单支付消息    }​    /**     * 任务优先级     */    public enum PRIORITY {        HIGHEST(5,"最高"),        HIGH(7,"较高"),        MIDDLE(9,"中"),        LOW(11,"较低"),        LOWEST(13,"最低"),        DEFAULT(100,"默认");​        private final String desc;​        private final Integer level;​        PRIORITY(Integer level, String desc) {            this.level = level;            this.desc = desc;        }​        public String getDesc() {            return desc;        }​        public Integer getLevel() {            return level;        }    }​    /**     * 分布式任务调度（任务提交及执行）节点     * @author Bruce     * @date 2021/3/12     */    class TopicNodeGroup {​        private final Map<LtsJobTopic, String[]> topicMap = new HashMap<>();            private TopicNodeGroup() {            this.init();        }            public static TopicNodeGroup getInstance() {            return new TopicNodeGroup();        }            /**         * 任务执行节点组分类配置         * taskTracker nodeGroup         */        private void init() {            // user            String[] userNodes = new String[]{"user_tasktracker"};            topicMap.put(LtsJobTopic.USER, userNodes);                // shop            String[] shopNodes = new String[]{"shop_tasktracker"};            topicMap.put(LtsJobTopic.SHOP, shopNodes);                // product            String[] goodsNodes = new String[]{"product_tasktracker"};            topicMap.put(LtsJobTopic.PRODUCT, goodsNodes);                // order            String[] orderNodes = new String[]{"order_tasktracker"};            topicMap.put(LtsJobTopic.ORDER, orderNodes);        }            public String[] getJobNodeGroups(LtsJobTopic topic) {            return topicMap.get(topic);        }            /**         * lts任务提交类型Topic         */        public enum LtsJobTopic {            USER,            SHOP,            PRODUCT,            ORDER        }    }}

3.3 handler(spring-lts-jobclient.xml中有配置指定)

import com.github.ltsopensource.core.commons.utils.CollectionUtils;import com.github.ltsopensource.core.domain.JobResult;import com.github.ltsopensource.jobclient.support.JobCompletedHandler;import lombok.extern.slf4j.Slf4j;​import java.text.SimpleDateFormat;import java.util.Date;import java.util.List;​@Slf4jpublic class JobCompletedHandlerImpl implements JobCompletedHandler {​    @Override    public void onComplete(List<JobResult> jobResults) {        // 任务执行反馈结果处理        if (CollectionUtils.isNotEmpty(jobResults)) {            for (JobResult jobResult : jobResults) {                log.info("{}任务执行完成:{}", new SimpleDateFormat("yyyy-MM-dd HH:mm:ss").format(new Date()), jobResult);            }        }    }​}

3.4 runner(spring-lts-tasktracker.xml中有配置指定)

import com.alibaba.fastjson.JSON;import com.github.ltsopensource.core.domain.Action;import com.github.ltsopensource.core.domain.Job;import com.github.ltsopensource.tasktracker.Result;import com.github.ltsopensource.tasktracker.runner.JobContext;import com.github.ltsopensource.tasktracker.runner.JobRunner;import lombok.extern.slf4j.Slf4j;​import java.util.ArrayList;import java.util.List;​@Slf4jpublic class LtsDispatcherRunner implements JobRunner {​    protected List<JobRunner> processers = new ArrayList<>();​    @Override    public Result run(JobContext jobContext) throws Throwable {        log.info(JSON.toJSONString(jobContext));        Job job = jobContext.getJob();​        for(JobRunner processer : processers){            try{                processer.run(jobContext);            }catch(Exception e){                log.info("任务处理异常(" + processer.getClass().getName() + "): ", e);                if(processer instanceof RetryJobRunner){                    this.retry(job);                }            }        }        return new Result(Action.EXECUTE_SUCCESS);    }​    /**     * 重新提交任务重试     * @param job     */    public void retry(Job job){        try {            if(job.getMaxRetryTimes() < LtsConstant.DEFAULT_MAX_RETRY_TIMES){                job.setTaskId(job.getTaskId() + "_retry");                LtsJobClient.getJobClient().submitJob(job);            }        } catch (Throwable e) {            log.error("重试任务异常:", e);        }    }​    public void setProcessers(List<JobRunner> processers) {        this.processers = processers;    }​}

/** * 标识接口 是否需要重试 */@FunctionalInterfacepublic interface RetryJobRunner extends JobRunner {​}

3.5 cron task

import com.github.ltsopensource.core.domain.Action;import com.github.ltsopensource.tasktracker.Result;import com.github.ltsopensource.tasktracker.runner.JobContext;import com.github.ltsopensource.tasktracker.runner.JobRunner;import lombok.extern.slf4j.Slf4j;import org.springframework.beans.factory.annotation.Autowired;​@Slf4jpublic class RefreshTokenTask implements JobRunner {​    @Autowired    private TokenService tokenService;​    /**     * 0 0 0/1 * * ?     * {"bizType":"QUARTZ_TASK","eventType":"REFRESH_TOKEN"}     * @param jobContext     * @return     */    @Override    public Result run(JobContext jobContext) {        try{            String bizType = jobContext.getJob().getParam(LtsConstant.BIZTYPE);            String eventType = jobContext.getJob().getParam(LtsConstant.EVENTTYPE);​            if(LtsConstant.BIZ_TYPE.QUARTZ_TASK.name().equals(bizType)                    && LtsConstant.EVENT_TYPE.REFRESH_TOKEN.name().equals(eventType)){​                log.info("REFRESH_TOKEN, job:{}", jobContext.getJob());​                log.info("刷新 Token 开始");​                tokenService.refreshToken();​                log.info("刷新 Token 结束");            }        } catch (Exception e) {            log.error("REFRESH_TOKEN Task Execute Occurs Exception", e);            return new Result(Action.EXECUTE_LATER, e.getMessage());        }​        return new Result(Action.EXECUTE_SUCCESS, "REFRESH_TOKEN Task Execute Success!");    }​}

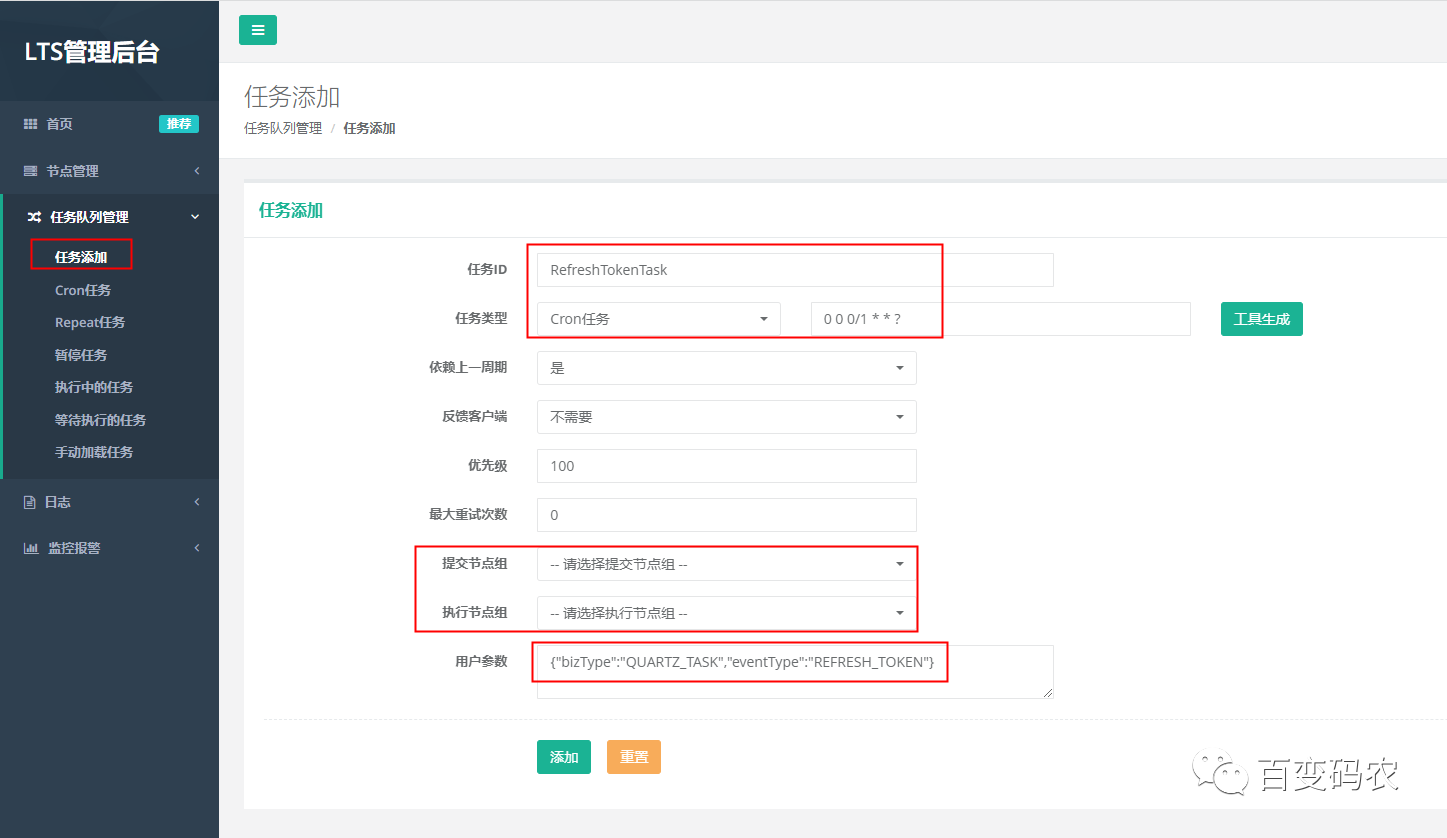

LTS-Admin控制台手动添加提交Cron任务（对应配置即可）

3.6 processer

import com.alibaba.dubbo.config.annotation.Reference;import com.github.ltsopensource.core.domain.Action;import com.github.ltsopensource.tasktracker.Result;import com.github.ltsopensource.tasktracker.runner.JobContext;​import lombok.extern.slf4j.Slf4j;import org.apache.commons.lang3.StringUtils;import org.springframework.beans.factory.annotation.Autowired;​/** * 下单1小时后通知商家发货 */@Slf4jpublic class OrderPaymentProcesser implements RetryJobRunner {​    @Autowired    private OrderService orderService;​    @Override    public Result run(JobContext jobContext) {        try{            String bizType = jobContext.getJob().getParam(LtsConstant.BIZTYPE);            String eventType = jobContext.getJob().getParam(LtsConstant.EVENTTYPE);​            if(LtsConstant.BIZ_TYPE.MSG_SUBSCRIBE.name().equals(bizType)){                if(LtsConstant.EVENT_TYPE.ORDER_PAYMENT_MSG.name().equals(eventType)){​                    log.info("下单1小时后提醒发货, job:{}", jobContext.getJob());​                    String orderId = jobContext.getJob().getParam(LtsConstant.BIZID);                    if(StringUtils.isNotEmpty(orderId)){                        // 通知商家发货                        orderService.noticeDelivery(orderId);                    }                }            }        } catch (Exception e) {            log.error("下单1小时后提醒发货 Execute Occurs Exception", e);            return new Result(Action.EXECUTE_LATER, e.getMessage());        }​        return new Result(Action.EXECUTE_SUCCESS, "下单1小时后提醒发货 Execute Success!");    }}

3.7 ltsJobFactory

import com.github.ltsopensource.core.commons.utils.CollectionUtils;import com.github.ltsopensource.core.commons.utils.DateUtils;import com.github.ltsopensource.core.domain.Job;import com.github.ltsopensource.core.json.JSON;import com.github.ltsopensource.jobclient.domain.Response;​import lombok.extern.slf4j.Slf4j;​import java.util.Date;import java.util.Map;​@Slf4jpublic class LtsJobFactory {​    /**     * 订单支付1小时后，通知商家发货     * @param shopIdAndGoodsId     */    public static void submitOrderPaymentJob(String orderId) {        try {            Map<Job, Response> jobResponseMap = LtsJobClient.getInstance()                    .taskTrackerNodeGroup(TopicNodeGroup.getInstance().getJobNodeGroups(TopicNodeGroup.LtsJobTopic.ORDER))                    .bizId(shopIdAndGoodsId)                    .bizType(LtsConstant.BIZ_TYPE.MSG_SUBSCRIBE.name())                    .eventType(LtsConstant.EVENT_TYPE.ORDER_PAYMENT_MSG.name())                    .setTriggerTime(DateUtil.addHours(new Date(), 1))                    .submit();​            // 定时任务错时重试            retryTriggerJob(jobResponseMap);​            log.info("submitOrderPaymentJobresult:{}", JSON.toJSONString(jobResponseMap));        } catch (Exception e) {            log.error("submitOrderPaymentJoboccurs exception:", e);        }    }    /**     * 任务重试     * @param jobResponseMap     */    private static void retryTriggerJob(Map<Job, Response> jobResponseMap){        Date now = new Date();        if(CollectionUtils.isNotEmpty(jobResponseMap)){            jobQueue:            for(Map.Entry<Job, Response> jobResponse : jobResponseMap.entrySet()){                Job job = jobResponse.getKey();                Response response = jobResponse.getValue();                if(!response.isSuccess()){                    for(int i = 0; i < LtsConstant.DEFAULT_MAX_RETRY_TIMES; i++){                        // 对于执行时间已过期未提交成功的Job,提交为5分钟后立马执行                        Long triggerTime = job.getTriggerTime();                        if(triggerTime != null && triggerTime.compareTo(now.getTime()) <= 0){                            job.setTriggerDate(DateUtils.addMinute(now, 5));                        }                        response = LtsJobClient.getJobClient().submitJob(job);                        if(response.isSuccess()) {                            continue jobQueue;                        }                    }                }            }        }    }​}

3.8 通过JobFactory提交实时任务或定时任务

// 在订单支付成功回调后，调用定时任务LtsJobFactory.submitOrderPaymentJob(orderId);

LTS如果提交的是即时任务，其实也可以作为一个简易的消息系统来使用。
