建立应用侧与前端页面数据通道(C/C++)

适用的应用架构

应用使用ArkTS、C++语言混合开发，或本身应用架构较贴近于小程序架构，自带C++侧环境，推荐使用ArkWeb在Native侧提供的[ArkWeb_ControllerAPI]、[ArkWeb_WebMessageAPI]、[ArkWeb_WebMessagePortAPI]实现PostWebMessage功能。

外链图片转存失败,源站可能有防盗链机制,建议将图片保存下来直接上传

上图展示了具有普遍适用性的小程序的通用架构。在这一架构中，逻辑层依赖于应用程序自带的JavaScript运行时，该运行时在一个已有的C++环境中运行。通过Native接口，逻辑层能够直接在C++环境中与视图层（其中ArkWeb充当渲染器）进行通信，无需回退至ArkTS环境使用ArkTS PostWebMessage接口。

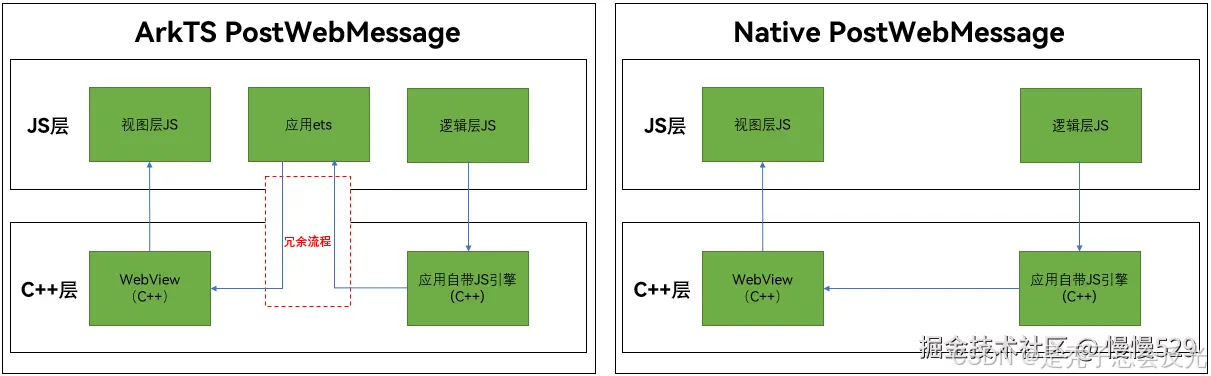

左图是使用ArkTS PostWebMessage接口构建小程序的方案，，如红框所示，应用需要先调用到ArkTS环境，再调用到C++环境。右图是使用Native PostWebMessage接口构建小程序的方案，不需要ArkTS环境和C++环境的切换，执行效率更高。

外链图片转存失败,源站可能有防盗链机制,建议将图片保存下来直接上传

使用Native接口实现PostWebMessage通信

使用Native接口绑定ArkWeb

ArkWeb组件声明在ArkTS侧，需要用户自定义一个标识webTag，并将webTag通过Node-API传至应用C++侧。后续ArkWeb Native接口使用时，均需webTag作为对应组件的唯一标识。

ArkTS侧

import { webview } from '@kit.ArkWeb';
// 自定义webTag，在WebviewController创建时作为入参传入，建立controller与webTag的映射关系
webTag: string = 'ArkWeb1';
controller: webview.WebviewController = new webview.WebviewController(this.webTag);
...
// aboutToAppear中将webTag通过Node-API接口传入C++侧，作为C++侧ArkWeb组件的唯一标识
aboutToAppear() {
  console.info("aboutToAppear")
  // 初始化web ndk
  testNapi.nativeWebInit(this.webTag);
}
...
ts

使用Native接口获取API结构体

ArkWeb Native侧得先获取API结构体，才能调用结构体里的Native API。ArkWeb Native侧API通过函数[OH_ArkWeb_GetNativeAPI]获取，根据入参type不同，可获取对应的函数指针结构体。

static ArkWeb_ControllerAPI *controller = nullptr;
static ArkWeb_WebMessagePortAPI *webMessagePort = nullptr;
static ArkWeb_WebMessageAPI *webMessage = nullptr;
...
controller = reinterpret_cast<ArkWeb_ControllerAPI *>(OH_ArkWeb_GetNativeAPI(ARKWEB_NATIVE_CONTROLLER));
webMessagePort =
    reinterpret_cast<ArkWeb_WebMessagePortAPI *>(OH_ArkWeb_GetNativeAPI(ARKWEB_NATIVE_WEB_MESSAGE_PORT));
webMessage = reinterpret_cast<ArkWeb_WebMessageAPI *>(OH_ArkWeb_GetNativeAPI(ARKWEB_NATIVE_WEB_MESSAGE));
c++

完整示例

在调用API前建议通过[ARKWEB_MEMBER_MISSING]校验该函数结构体是否有对应函数指针，避免SDK与设备ROM不匹配导致crash问题。[createWebMessagePorts]、[postWebMessage]、[close]需运行在UI线程。

前端页面代码

<!-- entry/src/main/resources/rawfile/index.html -->
<!-- index.html -->
<!DOCTYPE html>
<html lang="en-gb">
<body>
<h1>etsRunJavaScriptExt测试demo</h1>
<h1 id="h1"></h1>
<h3 id="msg">Receive string:</h3>
<h3 id="msg2">Receive arraybuffer:</h3>

</body>
<script type="text/javascript">
var h5Port;

window.addEventListener('message', function (event) {
    if (event.data == 'init_web_messageport') {
        const port = event.ports.at(0); // 1. 保存从应用侧发送过来的端口。
        if (port) {
            console.log("hwd In html got message");
            h5Port = port;
            port.onmessage = function (event) {
                console.log("hwd In html got message");
                // 2. 接收应用侧发送过来的消息.
                var result = event.data;
                var type_s = typeof (result)
                switch (type_s) {
                    case "object":
                        if (result instanceof ArrayBuffer) {
                            type_s = "ArrayBuffer";
                            var view = new Uint8Array(result);
                            const decoder = new TextDecoder('utf-8');
                            result = decoder.decode(result);
                        } else if (result instanceof Error) {
                            type_s = "Error";
                        } else if (result instanceof Array) {
                            type_s = "Array";
                        }
                        break;
                    default:
                        break;
                }
                console.log("H5 recv type: " + type_s + "\nH5 recv result: " + result)
                document.getElementById("msg").innerHTML = "recv type: " + type_s;
                document.getElementById("msg2").innerHTML = "recv value: " + result;
            }
            h5Port.onmessageerror = (event) => {
                console.error(`hwd In html Error receiving message: ${event}`);
            };
        }
    }
})
window.onerror = function(message, url, line, column, error) {
  console.log("JavaScript Error: " + message + " on line " + line + " in " + url);
  document.getElementById("h1").innerHTML = "执行函数失败"
};

// 3. 使用h5Port向应用侧发送消息。
function postStringToApp() {
    if (h5Port) {
        h5Port.postMessage("send string from H5");
    } else {
        console.error("In html h5port is null, please init first");
    }
}
function postBufferToApp() {
    if (h5Port) {
        const str = "Hello, World!";
        const encoder = new TextEncoder();
        const uint8Array = encoder.encode(str);
        h5Port.postMessage(uint8Array.buffer);
    } else {
        console.error("In html h5port is null, please init first");
    }
}

function postJsonToApp() {
    if (h5Port) {
        var e = {"json": "json"};
        h5Port.postMessage(e);
    } else {
        console.error("In html h5port is null, please init first");
    }
}

function postArrayStringToApp() {
    if (h5Port) {
        h5Port.postMessage(["1", "2", "3"]);
    } else {
        console.error("In html h5port is null, please init first");
    }
}

function postNumberToApp() {
    if (h5Port) {
        h5Port.postMessage(123);
    } else {
        console.error("In html h5port is null, please init first");
    }
}
class MyClass {
  constructor() {
    // 构造器
    this.myProperty = 'Hello, World!';
  }

  myMethod() {
    // 实例方法
    console.log(this.myProperty);
  }

  static myStaticMethod() {
    // 静态方法
    console.log('This is a static method.');
  }
}
function postObjectToApp() {
    if (h5Port) {
        h5Port.postMessage(new MyClass());
    } else {
        console.error("In html h5port is null, please init first");
    }
}

</script>
</html>
html

ArkTS侧代码

// entry/src/main/ets/pages/Index.ets
import testNapi from 'libentry.so'
import web_webview from '@ohos.web.webview';
import { BusinessError } from '@ohos.base';

@Entry
@Component
struct Index {
  @State webTag: string = 'postMessage';
  controller: web_webview.WebviewController = new web_webview.WebviewController(this.webTag);
  @State h5Log: string = 'Display received message send from HTML';

  aboutToAppear() {
    web_webview.WebviewController.setWebDebuggingAccess(true);
    // 初始化web ndk
    testNapi.nativeWebInit(this.webTag);
  }

  aboutToDisAppear() {
    console.error("aboutToDisAppear")
  }

  build() {
    Scroll() {
      Column({ space: 10 }) {
        // 展示H5接收到的内容
        Text("H5侧接收到应用侧发送消息展示")
        TextArea({text: this.h5Log})
          .id("log_area")
          .width("100%")
          .height(100)
          .border({ width: 1 })
        Text("应用侧按钮")
        Row() {
          Button('createNoControllerTagPort')
            .id("create_no_tag_btn")
            .onClick(() => {
              try {
                testNapi.createWebMessagePorts("noTag");
              } catch (error) {
                console.error(`ErrorCode: ${(error as BusinessError).code},  Message: ${(error as BusinessError).message}`);
              }
            })
          Button('createPort')
            .id("create_port_btn")
            .onClick(() => {
              try {
                testNapi.createWebMessagePorts(this.webTag);
              } catch (error) {
                console.error(`ErrorCode: ${(error as BusinessError).code},  Message: ${(error as BusinessError).message}`);
              }
            })
        }

        Row({ space: 10 }) {

          Button('setHandler')
            .id("set_handler_btn")
            .onClick(() => {
              try {
                testNapi.setMessageEventHandler(this.webTag);
              } catch (error) {
                console.error(`ErrorCode: ${(error as BusinessError).code},  Message: ${(error as BusinessError).message}`);
              }
            })

          Button('setHandlerThread')
            .id("set_handler_thread_btn")
            .onClick(() => {
              try {
                testNapi.setMessageEventHandlerThread(this.webTag);
              } catch (error) {
                console.error(`ErrorCode: ${(error as BusinessError).code},  Message: ${(error as BusinessError).message}`);
              }
            })
        }

        Row({ space: 10 }) {
          Button('SendString')
            .id("send_string_btn")
            .onClick(() => {
              try {
                this.h5Log = ""
                testNapi.postMessage(this.webTag);
              } catch (error) {
                console.error(`ErrorCode: ${(error as BusinessError).code},  Message: ${(error as BusinessError).message}`);
              }
            })
          Button('SendStringThread')
            .id("send_string_thread_btn")
            .onClick(() => {
              try {
                this.h5Log = ""
                testNapi.postMessageThread(this.webTag);
              } catch (error) {
                console.error(`ErrorCode: ${(error as BusinessError).code},  Message: ${(error as BusinessError).message}`);
              }
            })
        }

        Row({ space: 10 }) {
          Button('SendBuffer')
            .id("send_buffer_btn")
            .onClick(() => {
              try {
                this.h5Log = ""
                testNapi.postBufferMessage(this.webTag);
              } catch (error) {
                console.error(`ErrorCode: ${(error as BusinessError).code},  Message: ${(error as BusinessError).message}`);
              }
            })
          Button('SendNone')
            .id("send_none_btn")
            .onClick(() => {
              try {
                this.h5Log = ""
                testNapi.postNoneMessage(this.webTag);
              } catch (error) {
                console.error(`ErrorCode: ${(error as BusinessError).code},  Message: ${(error as BusinessError).message}`);
              }
            })
        }

        Row({ space: 10 }) {

          Button('closePort')
            .id("close_port_btn")
            .onClick(() => {
              try {
                testNapi.closeMessagePort(this.webTag);
              } catch (error) {
                console.error(`ErrorCode: ${(error as BusinessError).code},  Message: ${(error as BusinessError).message}`);
              }
            })
          Button('destroyNullPort')
            .id("destroy_null_btn")
            .onClick(() => {
              try {
                testNapi.destroyNullMessagePort(this.webTag);
              } catch (error) {
                console.error(`ErrorCode: ${(error as BusinessError).code},  Message: ${(error as BusinessError).message}`);
              }
            })
          Button('destroyPort')
            .id("destroy_port_btn")
            .onClick(() => {
              try {
                testNapi.destroyMessagePort(this.webTag);
              } catch (error) {
                console.error(`ErrorCode: ${(error as BusinessError).code},  Message: ${(error as BusinessError).message}`);
              }
            })
        }
        .width("100%")
        .padding(10)
        .border({ width: 1 })

        Column({ space: 10 }) {
          Text("H5侧发送按钮")
          Row({ space: 10 }) {
            Button('H5String')
              .id("h5_send_string_btn")
              .onClick(() => {
                try {
                  this.controller.runJavaScript("for(var i = 0; i < 2000; i++) postStringToApp()")
                } catch (error) {
                  console.error(`ErrorCode: ${(error as BusinessError).code},  Message: ${(error as BusinessError).message}`);
                }
              })
            Button('H5Buffer')
              .id("h5_send_buffer_btn")
              .onClick(() => {
                try {
                  this.controller.runJavaScript("postBufferToApp()")
                } catch (error) {
                  console.error(`ErrorCode: ${(error as BusinessError).code},  Message: ${(error as BusinessError).message}`);
                }
              })
            Button('H5Number')
              .id("h5_send_number_btn")
              .onClick(() => {
                try {
                  this.controller.runJavaScript("postNumberToApp()")
                } catch (error) {
                  console.error(`ErrorCode: ${(error as BusinessError).code},  Message: ${(error as BusinessError).message}`);
                }
              })
          }

          Row({ space: 10 }) {
            Button('H5Json')
              .id("h5_send_json_btn")
              .onClick(() => {
                try {
                  this.controller.runJavaScript("postJsonToApp()")
                } catch (error) {
                  console.error(`ErrorCode: ${(error as BusinessError).code},  Message: ${(error as BusinessError).message}`);
                }
              })
            Button('H5Array')
              .id("h5_send_array_btn")
              .onClick(() => {
                try {
                  this.controller.runJavaScript("postArrayStringToApp()")
                } catch (error) {
                  console.error(`ErrorCode: ${(error as BusinessError).code},  Message: ${(error as BusinessError).message}`);
                }
              })
            Button('H5Object')
              .id("h5_send_object_btn")
              .onClick(() => {
                try {
                  this.controller.runJavaScript("postObjectToApp()")
                } catch (error) {
                  console.error(`ErrorCode: ${(error as BusinessError).code},  Message: ${(error as BusinessError).message}`);
                }
              })
          }
        }
        .width("100%")
        .margin(10)
        .padding(10)
        .border({ width: 1 })

        Web({ src: $rawfile('index.html'), controller: this.controller })
          .onConsole((event) => {
            if (event) {
              let msg = event.message.getMessage()
              if (msg.startsWith("H5")) {
                this.h5Log = event.message.getMessage() + "\n" + this.h5Log
              }
            }
            return false;
          })
      }
    }.height('100%')
    .scrollable(ScrollDirection.Vertical)
    .scrollBar(BarState.Off)
    .edgeEffect(EdgeEffect.Spring)
  }
}
javascript

Node-API侧暴露ArkTS接口

// entry/src/main/cpp/types/libentry/index.d.ts
export const nativeWebInit: (webName: string) => void;
export const createWebMessagePorts: (webName: string) => void;
export const postMessage: (webName: string) => void;
export const postNoneMessage: (webName: string) => void;
export const setMessageEventHandler: (webName: string) => void;
export const closeMessagePort: (webName: string) => void;
export const destroyMessagePort: (webName: string) => void;
export const postBufferMessage: (webName: string) => void;
export const destroyNullMessagePort: (webName: string) => void;
export const setMessageEventHandlerThread: (webName: string) => void;
export const postMessageThread: (webName: string) => void;
javascript

Node-API侧编译配置

# entry/src/main/cpp/CMakeLists.txt
# the minimum version of CMake.
cmake_minimum_required(VERSION 3.4.1)
project(NDKPostMessage)

set(NATIVERENDER_ROOT_PATH ${CMAKE_CURRENT_SOURCE_DIR})

if(DEFINED PACKAGE_FIND_FILE)
    include(${PACKAGE_FIND_FILE})
endif()

include_directories(${NATIVERENDER_ROOT_PATH}
                    ${NATIVERENDER_ROOT_PATH}/include)

add_library(entry SHARED hello.cpp)

find_library(
    # Sets the name of the path variable.
    hilog-lib
    # Specifies the name of the NDK library that
    # you want CMake to locate.
    hilog_ndk.z
)

target_link_libraries(entry PUBLIC libace_napi.z.so ${hilog-lib} libohweb.so)
c++

Node-API层代码

// entry/src/main/cpp/hello.cpp
#include "napi/native_api.h"
#include <bits/alltypes.h>
#include <memory>
#include <string>
#include <sys/types.h>
#include <iostream>
#include <map>
#include "hilog/log.h"
#include "web/arkweb_interface.h"
#include <thread>

constexpr unsigned int LOG_PRINT_DOMAIN = 0xFF00;
ArkWeb_ControllerAPI *controller = nullptr;

ArkWeb_WebMessagePortAPI *webMessagePort = nullptr;
ArkWeb_WebMessageAPI *webMessage = nullptr;
size_t web_message_port_size = 0;
ArkWeb_WebMessagePortPtr *g_web_message_port_arr = nullptr;

static void WebMessagePortCallback(const char *webTag, const ArkWeb_WebMessagePortPtr port,
                                  const ArkWeb_WebMessagePtr message, void *userData) {
    OH_LOG_Print(LOG_APP, LOG_INFO, LOG_PRINT_DOMAIN, "ArkWeb",
                "ndk WebMesagePortCallback webTag:%{public}s,messageType:%{public}d", webTag,
                webMessage->getType(message));
    size_t len = 0;
    void *back = webMessage->getData(message, &len);
    if (webMessage->getType(message) == ArkWeb_WebMessageType::ARKWEB_STRING) {
        OH_LOG_Print(LOG_APP, LOG_INFO, LOG_PRINT_DOMAIN, "ArkWeb",
                    "ndk WebMesagePortCallback message:%{public}s,messageSize:%{public}d", back, len);
    } else if (webMessage->getType(message) == ArkWeb_WebMessageType::ARKWEB_BUFFER) {
        OH_LOG_Print(LOG_APP, LOG_INFO, LOG_PRINT_DOMAIN, "ArkWeb",
                    "ndk WebMesagePortCallback messageSize:%{public}d", len);
    }
}

static napi_value NativeWebInit(napi_env env, napi_callback_info info) {
    OH_LOG_Print(LOG_APP, LOG_INFO, LOG_PRINT_DOMAIN, "ArkWeb", "ndk NativeWebInit start");
    size_t argc = 1;
    napi_value args[1] = {nullptr};
    napi_get_cb_info(env, info, &argc, args, nullptr, nullptr);
    // 获取第一个参数webTag
    size_t webTagSize = 0;
    napi_get_value_string_utf8(env, args[0], nullptr, 0, &webTagSize);
    char *webTagValue = new (std::nothrow) char[webTagSize + 1];
    size_t webTagLength = 0;
    napi_get_value_string_utf8(env, args[0], webTagValue, webTagSize + 1, &webTagLength);
    OH_LOG_Print(LOG_APP, LOG_ERROR, LOG_PRINT_DOMAIN, "ArkWeb", "ndk NativeWebInit webTag:%{public}s", webTagValue);

    controller = reinterpret_cast<ArkWeb_ControllerAPI *>(OH_ArkWeb_GetNativeAPI(ARKWEB_NATIVE_CONTROLLER));
    if (controller)
        OH_LOG_Print(LOG_APP, LOG_ERROR, LOG_PRINT_DOMAIN, "ArkWeb", "get ArkWeb_ControllerAPI success");

    webMessagePort =
        reinterpret_cast<ArkWeb_WebMessagePortAPI *>(OH_ArkWeb_GetNativeAPI(ARKWEB_NATIVE_WEB_MESSAGE_PORT));
    if (webMessagePort)
        OH_LOG_Print(LOG_APP, LOG_ERROR, LOG_PRINT_DOMAIN, "ArkWeb", "get ArkWeb_WebMessagePortAPI success");

    webMessage = reinterpret_cast<ArkWeb_WebMessageAPI *>(OH_ArkWeb_GetNativeAPI(ARKWEB_NATIVE_WEB_MESSAGE));
    if (webMessage)
        OH_LOG_Print(LOG_APP, LOG_ERROR, LOG_PRINT_DOMAIN, "ArkWeb", "get ArkWeb_WebMessageAPI success");

    OH_LOG_Print(LOG_APP, LOG_INFO, LOG_PRINT_DOMAIN, "ArkWeb", "ndk NativeWebInit end");

    return nullptr;
}

static napi_value createWebMessagePorts(napi_env env, napi_callback_info info) {
    size_t argc = 2;
    napi_value args[2] = {nullptr};
    napi_get_cb_info(env, info, &argc, args, nullptr, nullptr);

    // 获取第一个参数webTag
    size_t webTagSize = 0;
    napi_get_value_string_utf8(env, args[0], nullptr, 0, &webTagSize);
    char *webTagValue = new (std::nothrow) char[webTagSize + 1];
    size_t webTagLength = 0;
    napi_get_value_string_utf8(env, args[0], webTagValue, webTagSize + 1, &webTagLength);
    OH_LOG_Print(LOG_APP, LOG_INFO, LOG_PRINT_DOMAIN, "ArkWeb", "ndk Refresh webTag:%{public}s", webTagValue);

    // 初始化端口
    OH_LOG_Print(LOG_APP, LOG_INFO, LOG_PRINT_DOMAIN, "ArkWeb", "ndk createWebMessagePorts begin");
    g_web_message_port_arr = controller->createWebMessagePorts(webTagValue, &web_message_port_size);
    // 把其中一个端口发送给HTML
    ArkWeb_ErrorCode code =
        controller->postWebMessage(webTagValue, "init_web_messageport", g_web_message_port_arr, 1, "*");
    OH_LOG_Print(LOG_APP, LOG_INFO, LOG_PRINT_DOMAIN, "ArkWeb", "ndk postWebMessage ArkWeb_ErrorCode:%{public}d", code);
    OH_LOG_Print(LOG_APP, LOG_INFO, LOG_PRINT_DOMAIN, "ArkWeb",
                "ndk createWebMessagePorts end, web message port size:%{public}d", web_message_port_size);
    return nullptr;
}

static napi_value postMessage(napi_env env, napi_callback_info info) {
    size_t argc = 2;
    napi_value args[2] = {nullptr};
    napi_get_cb_info(env, info, &argc, args, nullptr, nullptr);

    // 获取第一个参数webTag
    size_t webTagSize = 0;
    napi_get_value_string_utf8(env, args[0], nullptr, 0, &webTagSize);
    char *webTagValue = new (std::nothrow) char[webTagSize + 1];
    size_t webTagLength = 0;
    napi_get_value_string_utf8(env, args[0], webTagValue, webTagSize + 1, &webTagLength);
    OH_LOG_Print(LOG_APP, LOG_INFO, LOG_PRINT_DOMAIN, "ArkWeb", "ndk Refresh webTag:%{public}s", webTagValue);

    // 发送消息
    OH_LOG_Print(LOG_APP, LOG_INFO, LOG_PRINT_DOMAIN, "ArkWeb", "ndk postMessage begin");

    if (g_web_message_port_arr == nullptr) {
        OH_LOG_Print(LOG_APP, LOG_ERROR, LOG_PRINT_DOMAIN, "ArkWeb", "webMessagePort is nullptr");
        return nullptr;
    }
    ArkWeb_WebMessagePtr message = webMessage->createWebMessage();
    webMessage->setType(message, ArkWeb_WebMessageType::ARKWEB_STRING);
    std::string str = "send string from native";
    webMessage->setData(message, (void *)str.c_str(), str.length() + 1);
    ArkWeb_ErrorCode code = webMessagePort->postMessage(g_web_message_port_arr[1], webTagValue, message);
    OH_LOG_Print(LOG_APP, LOG_INFO, LOG_PRINT_DOMAIN, "ArkWeb", "ndk postMessage ArkWeb_ErrorCode:%{public}d", code);
    webMessage->destroyWebMessage(&message);
    OH_LOG_Print(LOG_APP, LOG_INFO, LOG_PRINT_DOMAIN, "ArkWeb", "ndk postMessage end, web message port size:%{public}d",
                web_message_port_size);
    return nullptr;
}


// 在线程中发消息
void sendMessage(const char *webTag, const ArkWeb_WebMessagePtr message) {
    // 发送1000次
    for (int i = 0; i < 1000; i++) {
        OH_LOG_Print(LOG_APP, LOG_INFO, LOG_PRINT_DOMAIN, "ArkWeb", "sendMessage in thread %{public}d", i);
        if (g_web_message_port_arr && webTag && message) {
          webMessagePort->postMessage(g_web_message_port_arr[1], webTag, message);
        }
    }
}
static napi_value postMessageThread(napi_env env, napi_callback_info info) {
    size_t argc = 2;
    napi_value args[2] = {nullptr};
    napi_get_cb_info(env, info, &argc, args, nullptr, nullptr);

    // 获取第一个参数webTag
    size_t webTagSize = 0;
    napi_get_value_string_utf8(env, args[0], nullptr, 0, &webTagSize);
    char *webTagValue = new (std::nothrow) char[webTagSize + 1];
    size_t webTagLength = 0;
    napi_get_value_string_utf8(env, args[0], webTagValue, webTagSize + 1, &webTagLength);
    OH_LOG_Print(LOG_APP, LOG_INFO, LOG_PRINT_DOMAIN, "ArkWeb", "ndk Refresh webTag:%{public}s", webTagValue);

    // 构造消息
    OH_LOG_Print(LOG_APP, LOG_INFO, LOG_PRINT_DOMAIN, "ArkWeb", "ndk postMessage begin");

    if (g_web_message_port_arr == nullptr) {
        OH_LOG_Print(LOG_APP, LOG_ERROR, LOG_PRINT_DOMAIN, "ArkWeb", "webMessagePort is nullptr");
        return nullptr;
    }
    ArkWeb_WebMessagePtr message = webMessage->createWebMessage();
    webMessage->setType(message, ArkWeb_WebMessageType::ARKWEB_STRING);
    std::string str = "thread message";
    webMessage->setData(message, (void *)str.c_str(), str.length() + 1);
    const int numThreads = 5;
    std::thread threads[numThreads];

    // 创建线程
    for (int i = 0; i < numThreads; ++i) {
        threads[i] = std::thread(sendMessage, webTagValue, message);
    }

    // 等待所有线程完成
    for (int i = 0; i < numThreads; ++i) {
        threads[i].detach();
    }
    return nullptr;
}

// 在线程中注册回调
void setHandler(const char *webTag) {
    OH_LOG_Print(LOG_APP, LOG_INFO, LOG_PRINT_DOMAIN, "ArkWeb", "setMessageEventHandler in thread");
    webMessagePort->setMessageEventHandler(g_web_message_port_arr[1], webTag, WebMessagePortCallback, NULL);
}

static napi_value setMessageEventHandlerThread(napi_env env, napi_callback_info info) {
    size_t argc = 2;
    napi_value args[2] = {nullptr};
    napi_get_cb_info(env, info, &argc, args, nullptr, nullptr);

    // 获取第一个参数webTag
    size_t webTagSize = 0;
    napi_get_value_string_utf8(env, args[0], nullptr, 0, &webTagSize);
    char *webTagValue = new (std::nothrow) char[webTagSize + 1];
    size_t webTagLength = 0;
    napi_get_value_string_utf8(env, args[0], webTagValue, webTagSize + 1, &webTagLength);
    OH_LOG_Print(LOG_APP, LOG_INFO, LOG_PRINT_DOMAIN, "ArkWeb", "ndk Refresh webTag:%{public}s", webTagValue);

    // 注册回调
    OH_LOG_Print(LOG_APP, LOG_INFO, LOG_PRINT_DOMAIN, "ArkWeb", "ndk SetMessageEventHandler begin");
    if (g_web_message_port_arr == nullptr) {
        OH_LOG_Print(LOG_APP, LOG_ERROR, LOG_PRINT_DOMAIN, "ArkWeb", "webMessagePort is nullptr");
        return nullptr;
    }
    std::thread thread(setHandler, webTagValue);
    thread.detach();
    webMessagePort->setMessageEventHandler(g_web_message_port_arr[1], webTagValue, WebMessagePortCallback, NULL);
    OH_LOG_Print(LOG_APP, LOG_INFO, LOG_PRINT_DOMAIN, "ArkWeb",
                "ndk SetMessageEventHandler end, web message port size:%{public}d", web_message_port_size);
    return nullptr;
}
static napi_value postNoneMessage(napi_env env, napi_callback_info info) {
    size_t argc = 2;
    napi_value args[2] = {nullptr};
    napi_get_cb_info(env, info, &argc, args, nullptr, nullptr);

    // 获取第一个参数webTag
    size_t webTagSize = 0;
    napi_get_value_string_utf8(env, args[0], nullptr, 0, &webTagSize);
    char *webTagValue = new (std::nothrow) char[webTagSize + 1];
    size_t webTagLength = 0;
    napi_get_value_string_utf8(env, args[0], webTagValue, webTagSize + 1, &webTagLength);
    OH_LOG_Print(LOG_APP, LOG_INFO, LOG_PRINT_DOMAIN, "ArkWeb", "ndk Refresh webTag:%{public}s", webTagValue);

    // 发送消息
    OH_LOG_Print(LOG_APP, LOG_INFO, LOG_PRINT_DOMAIN, "ArkWeb", "ndk postMessage begin");

    if (g_web_message_port_arr == nullptr) {
        OH_LOG_Print(LOG_APP, LOG_ERROR, LOG_PRINT_DOMAIN, "ArkWeb", "webMessagePort is nullptr");
        return nullptr;
    }
    ArkWeb_WebMessagePtr message = webMessage->createWebMessage();
    webMessage->setType(message, ArkWeb_WebMessageType::ARKWEB_NONE);
    std::string str = "send string from native";
    webMessage->setData(message, (void *)str.c_str(), str.length() + 1);
    webMessagePort->postMessage(g_web_message_port_arr[1], webTagValue, message);
    webMessage->destroyWebMessage(&message);
    OH_LOG_Print(LOG_APP, LOG_INFO, LOG_PRINT_DOMAIN, "ArkWeb", "ndk postMessage end, web message port size:%{public}d",
                web_message_port_size);
    return nullptr;
}

static napi_value postBufferMessage(napi_env env, napi_callback_info info) {
    size_t argc = 2;
    napi_value args[2] = {nullptr};
    napi_get_cb_info(env, info, &argc, args, nullptr, nullptr);

    // 获取第一个参数webTag
    size_t webTagSize = 0;
    napi_get_value_string_utf8(env, args[0], nullptr, 0, &webTagSize);
    char *webTagValue = new (std::nothrow) char[webTagSize + 1];
    size_t webTagLength = 0;
    napi_get_value_string_utf8(env, args[0], webTagValue, webTagSize + 1, &webTagLength);
    OH_LOG_Print(LOG_APP, LOG_INFO, LOG_PRINT_DOMAIN, "ArkWeb", "ndk Refresh webTag:%{public}s", webTagValue);

    // 发送消息
    OH_LOG_Print(LOG_APP, LOG_INFO, LOG_PRINT_DOMAIN, "ArkWeb", "ndk postMessage begin");

    if (g_web_message_port_arr == nullptr) {
        OH_LOG_Print(LOG_APP, LOG_ERROR, LOG_PRINT_DOMAIN, "ArkWeb", "webMessagePort is nullptr");
        return nullptr;
    }
    ArkWeb_WebMessagePtr message1 = webMessage->createWebMessage();
    webMessage->setType(message1, ArkWeb_WebMessageType::ARKWEB_BUFFER);
    std::string str1 = "send buffer from native";
    webMessage->setData(message1, (void *)str1.c_str(), str1.length());
    webMessagePort->postMessage(g_web_message_port_arr[1], webTagValue, message1);
    webMessage->destroyWebMessage(&message1);
    OH_LOG_Print(LOG_APP, LOG_INFO, LOG_PRINT_DOMAIN, "ArkWeb", "ndk postMessage end, web message port size:%{public}d",
                web_message_port_size);
    return nullptr;
}

static napi_value setMessageEventHandler(napi_env env, napi_callback_info info) {
    size_t argc = 2;
    napi_value args[2] = {nullptr};
    napi_get_cb_info(env, info, &argc, args, nullptr, nullptr);

    // 获取第一个参数webTag
    size_t webTagSize = 0;
    napi_get_value_string_utf8(env, args[0], nullptr, 0, &webTagSize);
    char *webTagValue = new (std::nothrow) char[webTagSize + 1];
    size_t webTagLength = 0;
    napi_get_value_string_utf8(env, args[0], webTagValue, webTagSize + 1, &webTagLength);
    OH_LOG_Print(LOG_APP, LOG_INFO, LOG_PRINT_DOMAIN, "ArkWeb", "ndk Refresh webTag:%{public}s", webTagValue);

    // 注册回调
    OH_LOG_Print(LOG_APP, LOG_INFO, LOG_PRINT_DOMAIN, "ArkWeb", "ndk SetMessageEventHandler begin");
    if (g_web_message_port_arr == nullptr) {
        OH_LOG_Print(LOG_APP, LOG_ERROR, LOG_PRINT_DOMAIN, "ArkWeb", "webMessagePort is nullptr");
        return nullptr;
    }
    webMessagePort->setMessageEventHandler(g_web_message_port_arr[1], webTagValue, WebMessagePortCallback, NULL);
    OH_LOG_Print(LOG_APP, LOG_INFO, LOG_PRINT_DOMAIN, "ArkWeb",
                "ndk SetMessageEventHandler end, web message port size:%{public}d", web_message_port_size);
    return nullptr;
}

static napi_value closeMessagePort(napi_env env, napi_callback_info info) {
    size_t argc = 2;
    napi_value args[2] = {nullptr};
    napi_get_cb_info(env, info, &argc, args, nullptr, nullptr);

    // 获取第一个参数webTag
    size_t webTagSize = 0;
    napi_get_value_string_utf8(env, args[0], nullptr, 0, &webTagSize);
    char *webTagValue = new (std::nothrow) char[webTagSize + 1];
    size_t webTagLength = 0;
    napi_get_value_string_utf8(env, args[0], webTagValue, webTagSize + 1, &webTagLength);
    OH_LOG_Print(LOG_APP, LOG_INFO, LOG_PRINT_DOMAIN, "ArkWeb", "ndk Refresh webTag:%{public}s", webTagValue);

    // 关闭端口，先调用close，再调用destroyWebMessagePorts
    OH_LOG_Print(LOG_APP, LOG_INFO, LOG_PRINT_DOMAIN, "ArkWeb", "ndk SetMessageEventHandler begin");
    if (g_web_message_port_arr == nullptr) {
        OH_LOG_Print(LOG_APP, LOG_ERROR, LOG_PRINT_DOMAIN, "ArkWeb", "webMessagePort is nullptr");
        return nullptr;
    }
    webMessagePort->close(g_web_message_port_arr[0], webTagValue);
    OH_LOG_Print(LOG_APP, LOG_INFO, LOG_PRINT_DOMAIN, "ArkWeb",
                "ndk SetMessageEventHandler end, web message port size:%{public}d", web_message_port_size);
    controller->refresh(webTagValue);
    return nullptr;
}

static napi_value destroyMessagePort(napi_env env, napi_callback_info info) {
    size_t argc = 2;
    napi_value args[2] = {nullptr};
    napi_get_cb_info(env, info, &argc, args, nullptr, nullptr);

    // 获取第一个参数webTag
    size_t webTagSize = 0;
    napi_get_value_string_utf8(env, args[0], nullptr, 0, &webTagSize);
    char *webTagValue = new (std::nothrow) char[webTagSize + 1];
    size_t webTagLength = 0;
    napi_get_value_string_utf8(env, args[0], webTagValue, webTagSize + 1, &webTagLength);
    OH_LOG_Print(LOG_APP, LOG_INFO, LOG_PRINT_DOMAIN, "ArkWeb", "ndk Refresh webTag:%{public}s", webTagValue);

    // 释放内存，先调用close，再调用destroyWebMessagePorts
    OH_LOG_Print(LOG_APP, LOG_INFO, LOG_PRINT_DOMAIN, "ArkWeb", "ndk SetMessageEventHandler begin");
    if (g_web_message_port_arr == nullptr) {
        OH_LOG_Print(LOG_APP, LOG_ERROR, LOG_PRINT_DOMAIN, "ArkWeb", "webMessagePort is nullptr");
        return nullptr;
    }
    controller->destroyWebMessagePorts(&g_web_message_port_arr, web_message_port_size);
    OH_LOG_Print(LOG_APP, LOG_INFO, LOG_PRINT_DOMAIN, "ArkWeb",
                "ndk SetMessageEventHandler end, web message port size:%{public}d", web_message_port_size);
    return nullptr;
}

static napi_value destroyNullMessagePort(napi_env env, napi_callback_info info) {
    size_t argc = 2;
    napi_value args[2] = {nullptr};
    napi_get_cb_info(env, info, &argc, args, nullptr, nullptr);

    // 获取第一个参数webTag
    size_t webTagSize = 0;
    napi_get_value_string_utf8(env, args[0], nullptr, 0, &webTagSize);
    char *webTagValue = new (std::nothrow) char[webTagSize + 1];
    size_t webTagLength = 0;
    napi_get_value_string_utf8(env, args[0], webTagValue, webTagSize + 1, &webTagLength);
    OH_LOG_Print(LOG_APP, LOG_INFO, LOG_PRINT_DOMAIN, "ArkWeb", "ndk Refresh webTag:%{public}s", webTagValue);

    // 释放内存，先调用close，再调用destroyWebMessagePorts
    OH_LOG_Print(LOG_APP, LOG_INFO, LOG_PRINT_DOMAIN, "ArkWeb", "ndk SetMessageEventHandler begin");

    controller->destroyWebMessagePorts(&g_web_message_port_arr, web_message_port_size);

    OH_LOG_Print(LOG_APP, LOG_INFO, LOG_PRINT_DOMAIN, "ArkWeb",
                "ndk SetMessageEventHandler end, web message port size:%{public}d", web_message_port_size);
    return nullptr;
}

EXTERN_C_START
static napi_value Init(napi_env env, napi_value exports) {
    napi_property_descriptor desc[] = {
        {"nativeWebInit", nullptr, NativeWebInit, nullptr, nullptr, nullptr, napi_default, nullptr},
        {"createWebMessagePorts", nullptr, createWebMessagePorts, nullptr, nullptr, nullptr, napi_default, nullptr},
        {"postMessage", nullptr, postMessage, nullptr, nullptr, nullptr, napi_default, nullptr},
        {"postNoneMessage", nullptr, postNoneMessage, nullptr, nullptr, nullptr, napi_default, nullptr},
        {"postBufferMessage", nullptr, postBufferMessage, nullptr, nullptr, nullptr, napi_default, nullptr},
        {"setMessageEventHandler", nullptr, setMessageEventHandler, nullptr, nullptr, nullptr, napi_default, nullptr},
        {"closeMessagePort", nullptr, closeMessagePort, nullptr, nullptr, nullptr, napi_default, nullptr},
        {"destroyMessagePort", nullptr, destroyMessagePort, nullptr, nullptr, nullptr, napi_default, nullptr},
        {"postMessageThread", nullptr, postMessageThread, nullptr, nullptr, nullptr, napi_default, nullptr},
        {"setMessageEventHandlerThread", nullptr, setMessageEventHandlerThread, nullptr, nullptr, nullptr, napi_default,
        nullptr},
        {"destroyNullMessagePort", nullptr, destroyNullMessagePort, nullptr, nullptr, nullptr, napi_default, nullptr},
    };
    napi_define_properties(env, exports, sizeof(desc) / sizeof(desc[0]), desc);
    return exports;
}
EXTERN_C_END

static napi_module demoModule = {
    .nm_version = 1,
    .nm_flags = 0,
    .nm_filename = nullptr,
    .nm_register_func = Init,
    .nm_modname = "entry",
    .nm_priv = ((void *)0),
    .reserved = {0},
};

extern "C" __attribute__((constructor)) void RegisterEntryModule(void) { napi_module_register(&demoModule); }
