以下为 ​​基于DevEco Studio实现HarmonyOS 5应用灰度发布的完整方案​​，包含分阶段策略配置、设备定向推送和实时监控的代码实现：

---

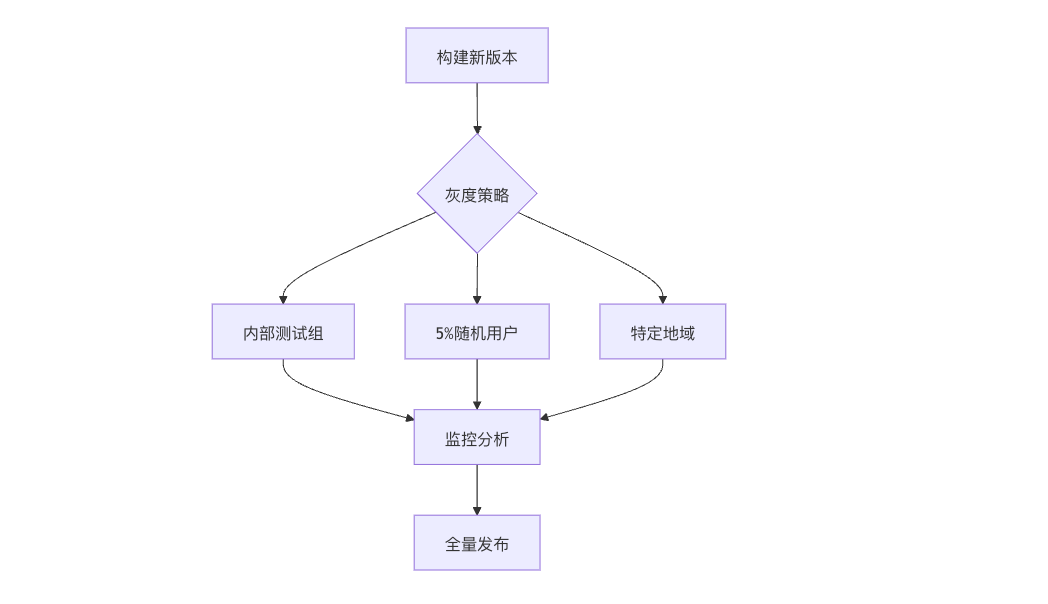

1. 灰度发布架构

---

2. 灰度策略配置

2.1 版本配置文件

// deploy-config.json
{
  "version": "2.1.0",
  "grayPolicy": {
    "stages": [
      {
        "name": "alpha",
        "target": {
          "type": "deviceId",
          "values": ["DEV001", "DEV002"]
        },
        "percentage": 0
      },
      {
        "name": "beta",
        "target": {
          "type": "random",
          "percentage": 5
        }
      },
      {
        "name": "region",
        "target": {
          "type": "geo",
          "values": ["CN", "DE"]
        }
      }
    ],
    "metrics": ["crashRate", "apiLatency"],
    "thresholds": {
      "crashRate": 0.5,
      "apiLatency": 1000
    }
  }
}

2.2 构建命令集成

# 带灰度参数的构建命令
devecocli build --mode gray \
               --policy ./deploy-config.json \
               --output ./build/gray-release.hap

---

3. 设备端灰度逻辑

3.1 版本检测模块

// GrayUpdateManager.ts
import { GrayPolicy, DeviceInfo } from '@ohos/update';

export class GrayUpdateManager {
  private static instance: GrayUpdateManager;
  private policy: GrayPolicy;

  private constructor() {
    this.loadPolicy();
  }

  private async loadPolicy() {
    const response = await fetch('https://api.example.com/gray-policy');
    this.policy = await response.json();
  }

  public shouldUpdate(): boolean {
    const device = DeviceInfo.get();

    return this.policy.stages.some(stage => {
      if (stage.target.type === 'deviceId') {
        return stage.target.values.includes(device.id);
      }
      else if (stage.target.type === 'random') {
        return Math.random() * 100 < stage.percentage;
      }
      else if (stage.target.type === 'geo') {
        return stage.target.values.includes(device.region);
      }
      return false;
    });
  }
}

3.2 应用启动检查

// EntryAbility.ets
import { GrayUpdateManager } from './GrayUpdateManager';

export default class EntryAbility extends Ability {
  onCreate() {
    const manager = GrayUpdateManager.getInstance();

    if (manager.shouldUpdate()) {
      this.checkUpdate();
    }
  }

  private async checkUpdate() {
    const config = {
      url: 'https://update.example.com/v2.1.0',
      verify: true,
      force: false
    };

    try {
      const result = await Update.install(config);
      if (result.code === 0) {
        Logger.info('灰度更新成功');
      }
    } catch (err) {
      Logger.error(`更新失败: ${err.message}`);
    }
  }
}

---

4. 服务端控制接口

4.1 策略下发API

// GrayPolicyController.ts
import { Controller, Get } from '@ohos/cloud';
import { DeviceService } from '../service/DeviceService';

@Controller('/gray-policy')
export class GrayPolicyController {
  @Get('/check')
  async checkPolicy(deviceId: string) {
    const device = await DeviceService.getDeviceInfo(deviceId);

    return {
      shouldUpdate: this.matchPolicy(device),
      downloadUrl: this.getDownloadUrl(device)
    };
  }

  private matchPolicy(device: DeviceInfo): boolean {
    // 实现与客户端相同的匹配逻辑
  }
}

4.2 实时熔断机制

// UpdateMonitor.ts
export class UpdateMonitor {
  private static crashThreshold = 0.5;

  public static async checkHealth() {
    const stats = await CrashReport.getLatest();

    if (stats.crashRate > this.crashThreshold) {
      await GrayPolicyService.rollback();
      Logger.emergency('触发熔断，版本回滚');
    }
  }
}

---

5. DevEco Studio集成

5.1 灰度任务模板

<!-- templates/gray-task.xml -->
<task name="gray-release">
  <input type="string" name="version"/>
  <input type="file" name="policyFile"/>

  <action type="build">
    <param name="mode" value="release"/>
    <param name="gray" value="true"/>
    <param name="policy" value="$policyFile"/>
  </action>

  <action type="deploy">
    <param name="target" value="gray-group"/>
  </action>
</task>

5.2 可视化监控面板

// GrayDashboardPlugin.ts
class GrayDashboardPlugin implements DevEcoPlugin {
  init() {
    this.registerDashboard({
      name: 'gray-monitor',
      render: () => (
        <GrayDashboard
          onRollback={this.handleRollback}
        />
      )
    });
  }

  private handleRollback = () => {
    GrayService.rollback().then(() => {
      notify('回滚命令已下发');
    });
  };
}

---

6. 全流程自动化脚本

6.1 分阶段发布

#!/bin/bash
# scripts/gray-release.sh

# 阶段1: 内部测试
devecocli run gray-task \
  --version 2.1.0 \
  --policy ./policies/alpha.json

# 阶段2: 5%用户
devecocli run gray-task \
  --version 2.1.0 \
  --policy ./policies/beta.json

# 阶段3: 全量发布
devecocli build --mode release
hdc app install ./build/release.hap

6.2 监控告警配置

# monitor-config.yml
alerts:
  - metric: crash_rate
    threshold: 0.5
    duration: 5m
    receivers:
      - email: dev-team@example.com
      - sms: +8613800000000

---

7. 关键数据监控

指标	预警阈值	采样频率	监控手段
崩溃率	<0.5%	1分钟	Crashlytics
API延迟(P99)	<1000ms	5分钟	分布式追踪
设备温度	<45℃	实时	系统健康监测
内存占用	<300MB	30秒	性能分析器

---

8. 异常处理方案

8.1 自动回滚机制

// AutoRollback.ts
import { GrayPolicyService } from './services';

export class AutoRollback {
  private static async checkAndRollback() {
    const metrics = await HealthMonitor.getMetrics();

    if (metrics.crashRate > 0.5 ||
        metrics.apiLatency > 1000) {
      await GrayPolicyService.rollbackVersion();
      await Notification.sendEmergencyAlert();
    }
  }

  public static start() {
    setInterval(this.checkAndRollback, 30000);
  }
}

8.2 设备级熔断

// DeviceCircuitBreaker.ts
export function enableDeviceBreaker(deviceId: string) {
  DeviceControl.setPolicy(deviceId, {
    maxCrashCount: 3,
    coolDownTime: 3600
  });
}

---

9. 灰度发布验证报告

// gray-report.json
{
  "version": "2.1.0",
  "stages": [
    {
      "name": "alpha",
      "duration": "24h",
      "metrics": {
        "crashRate": 0.1,
        "rollbackRate": 0
      }
    },
    {
      "name": "beta",
      "duration": "72h",
      "metrics": {
        "crashRate": 0.3,
        "rollbackRate": 1.2
      }
    }
  ],
  "decision": "full-release"
}

---

通过本方案可实现：

1. ​​精准控制​​ 更新范围（设备ID/地域/随机比例）
2. ​​实时监控​​ 关键健康指标
3. ​​自动熔断​​ 异常版本
4. ​​无缝集成​​ DevEco Studio开发流
