HarmonyOS开发 - 富文本的实现
·
富文本（Rich Text） 不仅承载着多样化的内容呈现需求，更是连接用户与服务的关键桥梁。无论是社交应用中的图文混排、教育类 App 的课件展示，还是办公场景的文档编辑，富文本的实现能力直接影响着用户体验的深度与广度。

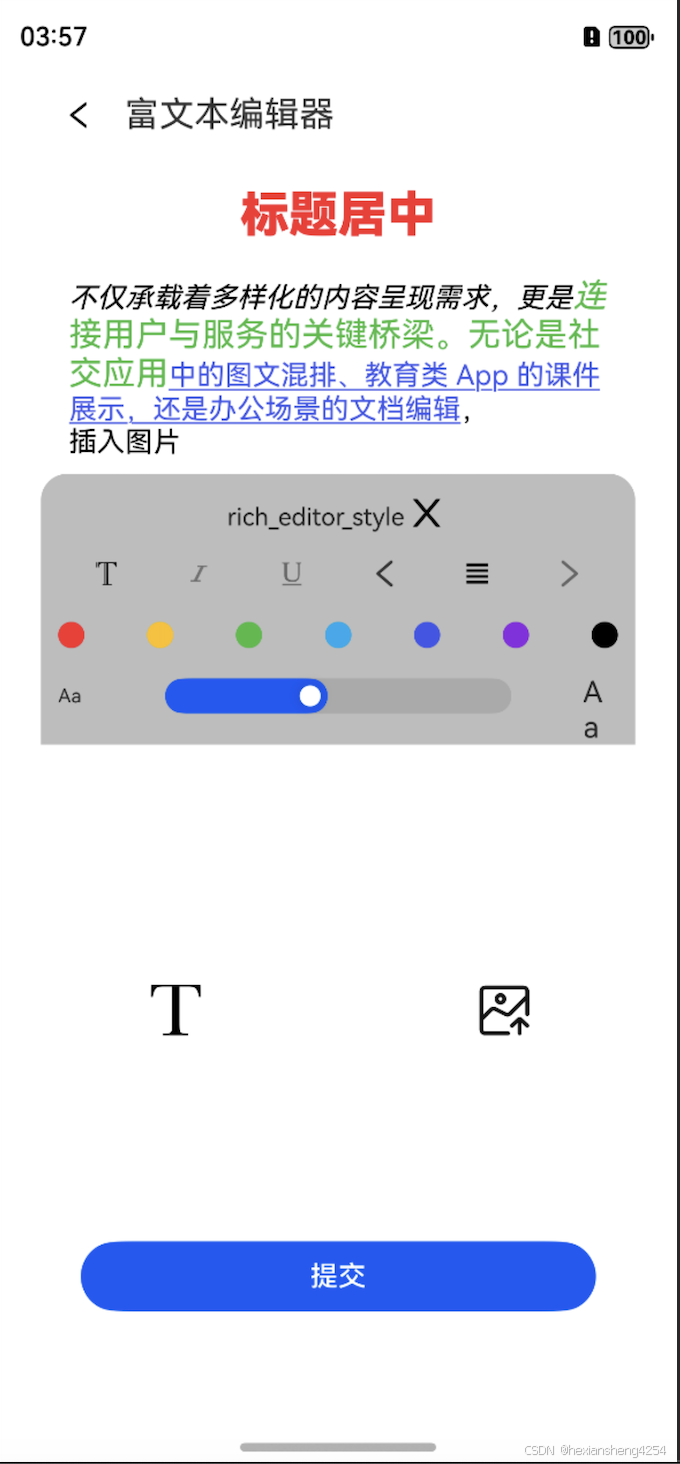

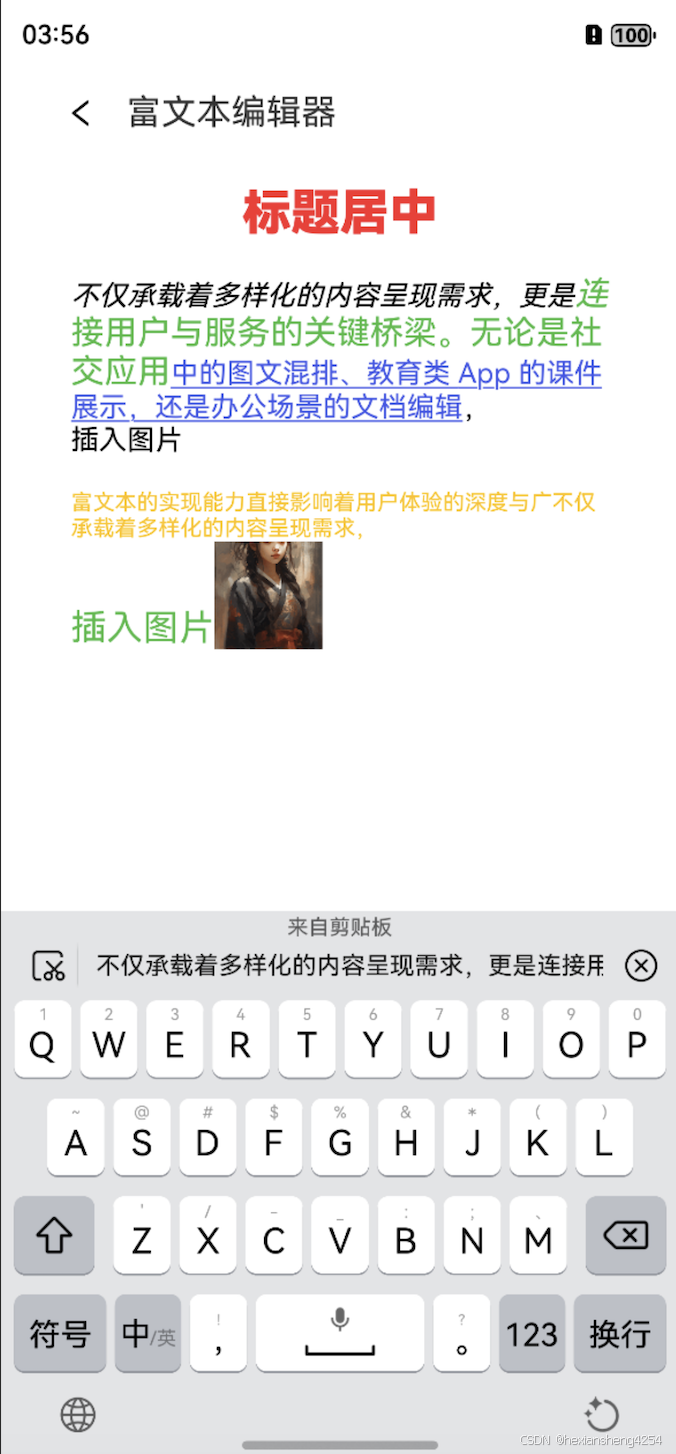

话不多说，线上效果图：
需要用到：RichEditor这个组件
直接上代码，copy过去就能使用
注意：titlebar自己根据情况去实现，我这里注释了，插入图片自己根据业务去实现，我这里本地没有接口去使用
// import { TitleBar } from '../components/TitleBar';
// import { Title } from '../components/Title';
@Extend(Column) function cardStyle() {
.backgroundColor(Color.White)
.borderRadius(24)
.width('100%')
.padding(5)
}
@Entry
@Component
struct RichEditorSample {
@State setStyle: Boolean = false;
@State setStyle1: Boolean = false;
@State setStyle2: Boolean = false;
@State setStyle3: Boolean = false;
@State setStyle4: Boolean = false;
@State setStyle5: Boolean = false;
@State setStyle6: Boolean = false;
@State styleDialog: Visibility = Visibility.None;
@State fontWeightSet: FontWeight = FontWeight.Normal;
@State fontStyleSet: FontStyle = FontStyle.Normal;
@State fontDecorationSet: TextDecorationType = TextDecorationType.None;
@State fontAlignLeftSet: TextAlign = TextAlign.Start;
@State fontAlignMiddleSet: TextAlign = TextAlign.Center;
@State fontAlignRightSet: TextAlign = TextAlign.End;
@State tipsValue: number = 32;
private start: number = -1;
private end: number = -1;
private fontColors: string[] = ["#FA2A2D","#FFBF00","#41BA41","#00AAEE","#3F56EA","#8A2BE2","#000000"];
controller: RichEditorController = new RichEditorController();
updateVisible(){
this.setStyle = !this.setStyle;
if(this.setStyle){
this.styleDialog = Visibility.Visible;
}else{
this.styleDialog = Visibility.None;
}
}
updateFontWeight(){
this.setStyle1 = !this.setStyle1;
if(this.setStyle1){
this.fontWeightSet = FontWeight.Bolder;
}else{
this.fontWeightSet = FontWeight.Normal;
}
}
updateFontStyle(){
this.setStyle2 = !this.setStyle2;
if(this.setStyle2){
this.fontStyleSet = FontStyle.Italic;
}else{
this.fontStyleSet = FontStyle.Normal;
}
}
updateFontDecoration(){
this.setStyle3 = !this.setStyle3;
if(this.setStyle3){
this.fontDecorationSet = TextDecorationType.Underline;
}else{
this.fontDecorationSet = TextDecorationType.None;
}
}
updateFontAlignLeft(){
this.setStyle4 = !this.setStyle4;
if(this.setStyle4){
this.fontAlignLeftSet = TextAlign.Start;
}else{
this.fontAlignLeftSet = TextAlign.JUSTIFY;
}
}
updateFontAlignMiddle(){
this.setStyle5 = !this.setStyle5;
if(this.setStyle5){
this.fontAlignMiddleSet = TextAlign.Center;
}else{
this.fontAlignMiddleSet = TextAlign.JUSTIFY;
}
}
updateFontAlignRight(){
this.setStyle6 = !this.setStyle6;
if(this.setStyle6){
this.fontAlignRightSet = TextAlign.End;
}else{
this.fontAlignRightSet = TextAlign.JUSTIFY;
}
}
build() {
Column() {
// TitleBar({ title: $r('app.string.rich_editor_title') })
Scroll() {
Column() {
RichEditor({ controller: this.controller })
.onReady(() => {
this.controller.addTextSpan("Hello World。\n" +
"Familiar images automatically give people a sense of calm and nostalgia. " +
"Early web designers liked the elements of the 1980s, but today, the aesthetics of the 1990s.\n",
{
style:
{
fontColor: Color.Black,
fontSize: 16
}
})
// this.controller.addImageSpan($rawfile('richEditor/operate.svg'),
// {
// imageStyle:
// {
// size: ["100px", "54px"]
// }
// })
})
.onSelect((value: RichEditorSelection) => {
this.start = value.selection[0];
this.end = value.selection[1];
})
.height("50%")
.width("100%")
Stack() {
Column() {
Row() {
Text($r('app.string.rich_editor_style'))
.fontSize(14)
.padding({top:5})
Image($rawfile('richEditor/close.svg'))
.width(25)
.height(25)
.onClick(() => {
this.styleDialog = Visibility.None
})
}.height(25)
.margin({bottom:10})
Row({ space: 38 }) {
Image($rawfile('richEditor/Normal.svg'))
.width(15)
.height(15)
.onClick(() => {
this.updateFontWeight()
if(this.end!=this.start){
this.controller.updateSpanStyle({
start: this.start,
end: this.end,
textStyle:
{
fontWeight: this.fontWeightSet
}
})
}
})
Image($rawfile('richEditor/incline.svg'))
.width(15)
.height(15)
.onClick(() => {
this.updateFontStyle()
if(this.end!=this.start) {
this.controller.updateSpanStyle({
start: this.start,
end: this.end,
textStyle:
{
fontStyle: this.fontStyleSet
}
})
}
})
Image($rawfile('richEditor/underline.svg'))
.width(15)
.height(15)
.onClick(() => {
this.updateFontDecoration()
if(this.end!=this.start) {
this.controller.updateSpanStyle({
start: this.start,
end: this.end,
textStyle:
{
decoration: {
type: this.fontDecorationSet
}
}
})
}
})
Image($rawfile('richEditor/left.svg'))
.width(15)
.height(15)
.onClick(() => {
this.updateFontAlignLeft()
if(this.end!=this.start) {
this.controller.updateParagraphStyle({
start: this.start,
end: this.end,
style:
{
textAlign:this.fontAlignLeftSet
}
})
}
})
Image($rawfile('richEditor/align.svg'))
.width(15)
.height(15)
.onClick(() => {
this.updateFontAlignMiddle()
if(this.end!=this.start) {
this.controller.updateParagraphStyle({
start: this.start,
end: this.end,
style:
{
textAlign:this.fontAlignMiddleSet
}
})
}
})
Image($rawfile('richEditor/right.svg'))
.width(15)
.height(15)
.onClick(() => {
this.updateFontAlignRight()
if(this.end!=this.start) {
this.controller.updateParagraphStyle({
start: this.start,
end: this.end,
style:
{
textAlign:this.fontAlignRightSet
}
})
}
})
}
.height(25)
.margin({bottom:10})
Row() {
ForEach(this.fontColors,(item: string) => {
Circle({ width: 15, height: 15 }).fill(item)
.onClick(() => {
if(this.end!=this.start){
this.controller.updateSpanStyle({
start: this.start,
end: this.end,
textStyle:
{
fontColor: item
}
})
}
})
})
}.height(25)
.width('100%')
.margin({bottom:10})
.justifyContent(FlexAlign.SpaceBetween)
Row() {
Text("Aa")
.width(20)
.height(24)
.fontSize(11)
.fontWeight(400)
.onClick(() => {
this.tipsValue = this.tipsValue - 2
if(this.end!=this.start){
this.controller.updateSpanStyle({
start: this.start,
end: this.end,
textStyle:
{
fontSize: this.tipsValue/2
}
})
}
})
Slider({ style: SliderStyle.InSet, value: this.tipsValue })
.width(210)
.showTips(true, 'Size:' + this.tipsValue.toFixed())
.onChange(value => {
this.tipsValue = value
if(this.end!=this.start){
this.controller.updateSpanStyle({
start: this.start,
end: this.end,
textStyle:
{
fontSize: this.tipsValue/2
}
})
}
})
Text("Aa")
.width(20)
.height(24)
.fontSize(17)
.fontWeight(400)
.onClick(() => {
this.tipsValue = this.tipsValue + 2
if(this.end!=this.start){
this.controller.updateSpanStyle({
start: this.start,
end: this.end,
textStyle:
{
fontSize: this.tipsValue/2
}
})
}
})
}.height(25).margin({bottom:60})
.width('100%')
.justifyContent(FlexAlign.SpaceBetween)
}.visibility(this.styleDialog)
.width("100%")
.height("85%")
.margin({bottom:"85%"})
.padding(10)
.zIndex(1)
.border({
radius: { topLeft: 15, topRight: 15 },
})
.backgroundColor($r('app.color.background_light_gray'))
Row({ space: 150 }) {
Image($rawfile('richEditor/font-normal.svg'))
.width(40)
.height(40)
.onClick(() => {
this.updateVisible()
})
Image($rawfile('richEditor/addPhoto.svg'))
.width(35)
.height(35)
.onClick(() => {
//插入图片
this.controller.addImageSpan($rawfile('home/poster4.png'),
{
imageStyle:
{
size: ["200px", "200px"]
}
})
})
}
.padding({top:"50%"})
.justifyContent(FlexAlign.Center)
.width("100%")
.height("15%")
.zIndex(3)
}.height("30%")
}
.alignItems(HorizontalAlign.Start)
.cardStyle()
.constraintSize({ minHeight: '100%' })
}
.width('95%')
.height('80%')
.backgroundColor($r('app.color.divider_block_color'))
Row(){
Button('提交').width('80%')
}
}.height('100%')
.width('100%')
.backgroundColor($r('app.color.divider_block_color'))
.padding({ left: 10, right: 10 })
}
}
