HARMONYOS应用实例255：视图还原大师
·
- 视图还原大师

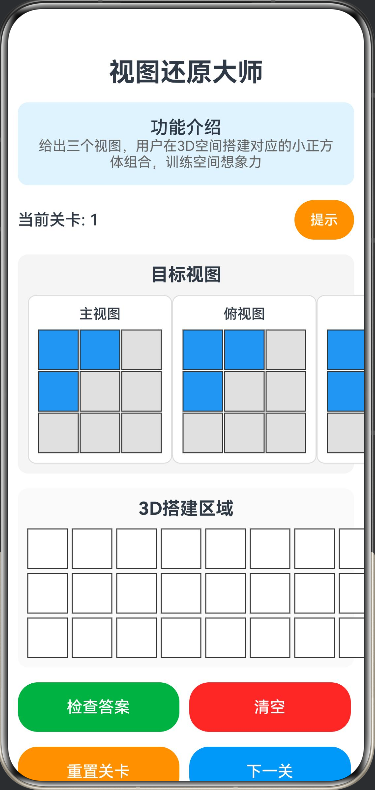

- 功能：给出三个视图，用户在3D空间搭建对应的小正方体组合，训练空间想象力。
应用功能：
显示三个目标视图（主视图、俯视图、侧视图）
提供3D搭建区域，用户可以点击格子放置或移除小正方体
检查答案功能，验证用户搭建的3D结构是否与目标视图匹配
多关卡设计，提供不同难度的挑战
提示功能，帮助用户理解如何使用应用
清空和重置功能，方便用户重新开始
- 功能：给出三个视图，用户在3D空间搭建对应的小正方体组合，训练空间想象力。
// 视图还原大师
// 功能：给出三个视图，用户在3D空间搭建对应的小正方体组合，训练空间想象力
// 小正方体位置
interface CubePosition {
x: number;
y: number;
z: number;
}
// 视图数据
interface ViewData {
front: number[][];
top: number[][];
side: number[][];
}
@Entry
@Component
struct ViewRestorationMaster {
@State gridSize: number = 3;
@State cubeSize: number = 40;
@State userCubes: Array<CubePosition> = [];
@State targetView: ViewData = {
front: [[1, 1, 0], [1, 0, 0], [0, 0, 0]],
top: [[1, 1, 0], [1, 0, 0], [0, 0, 0]],
side: [[1, 1, 0], [1, 0, 0], [0, 0, 0]]
};
@State currentLevel: number = 1;
@State showResult: boolean = false;
@State isCorrect: boolean = false;
@State showHint: boolean = false;
build() {
Column({ space: 15 }) {
Text('视图还原大师')
.fontSize(26)
.fontWeight(FontWeight.Bold)
.textAlign(TextAlign.Center)
Column() {
Text('功能介绍')
.fontSize(18)
.fontWeight(FontWeight.Medium)
Text('给出三个视图，用户在3D空间搭建对应的小正方体组合，训练空间想象力')
.fontSize(14)
.fontColor('#666666')
.textAlign(TextAlign.Center)
}
.width('100%')
.backgroundColor('#E3F2FD')
.borderRadius(10)
.padding(15)
Row({ space: 10 }) {
Text(`当前关卡: ${this.currentLevel}`)
.fontSize(16)
.fontWeight(FontWeight.Medium)
Button('提示')
.fontSize(14)
.backgroundColor('#FF9800')
.onClick(() => {
this.showHint = !this.showHint
})
}
.width('100%')
.justifyContent(FlexAlign.SpaceBetween)
Column({ space: 10 }) {
Text('目标视图')
.fontSize(18)
.fontWeight(FontWeight.Bold)
.width('100%')
.textAlign(TextAlign.Center)
Row({ space: 10 }) {
this.ViewDisplay('主视图', this.targetView.front)
this.ViewDisplay('俯视图', this.targetView.top)
this.ViewDisplay('侧视图', this.targetView.side)
}
.width('100%')
.justifyContent(FlexAlign.SpaceAround)
}
.width('100%')
.padding(10)
.backgroundColor('#F5F5F5')
.borderRadius(10)
Column({ space: 10 }) {
Text('3D搭建区域')
.fontSize(18)
.fontWeight(FontWeight.Bold)
.width('100%')
.textAlign(TextAlign.Center)
Column({ space: 5 }) {
ForEach([0, 1, 2], (z: number) => {
Row({ space: 5 }) {
ForEach([0, 1, 2], (y: number) => {
Row({ space: 5 }) {
ForEach([0, 1, 2], (x: number) => {
this.CubeCell(x, y, z)
})
}
})
}
})
}
}
.width('100%')
.padding(10)
.backgroundColor('#FAFAFA')
.borderRadius(10)
if (this.showHint) {
Column({ space: 8 }) {
Text('提示')
.fontSize(16)
.fontWeight(FontWeight.Bold)
Text('• 点击格子放置或移除小正方体')
.fontSize(14)
.fontColor('#666666')
Text('• 主视图显示从前面看到的形状')
.fontSize(14)
.fontColor('#666666')
Text('• 俯视图显示从上面看到的形状')
.fontSize(14)
.fontColor('#666666')
Text('• 侧视图显示从侧面看到的形状')
.fontSize(14)
.fontColor('#666666')
}
.width('95%')
.padding(12)
.backgroundColor('#FFF3E0')
.borderRadius(10)
}
Row({ space: 10 }) {
Button('检查答案')
.width('48%')
.height(50)
.fontSize(16)
.backgroundColor('#4CAF50')
.onClick(() => {
this.checkAnswer()
})
Button('清空')
.width('48%')
.height(50)
.fontSize(16)
.backgroundColor('#F44336')
.onClick(() => {
this.userCubes = []
})
}
.width('100%')
Row({ space: 10 }) {
Button('重置关卡')
.width('48%')
.height(50)
.fontSize(16)
.backgroundColor('#FF9800')
.onClick(() => {
this.resetLevel()
})
Button('下一关')
.width('48%')
.height(50)
.fontSize(16)
.backgroundColor('#2196F3')
.onClick(() => {
this.nextLevel()
})
}
.width('100%')
if (this.showResult) {
Column({ space: 10 }) {
Text(this.isCorrect ? '恭喜！答案正确！' : '答案错误，请继续努力！')
.fontSize(20)
.fontWeight(FontWeight.Bold)
.fontColor(this.isCorrect ? '#4CAF50' : '#F44336')
if (this.isCorrect) {
Text('你的空间想象力很棒！')
.fontSize(16)
.fontColor('#666666')
} else {
Text('请仔细观察三个视图，重新搭建')
.fontSize(16)
.fontColor('#666666')
}
}
.width('90%')
.padding(20)
.backgroundColor(this.isCorrect ? '#E8F5E9' : '#FFEBEE')
.borderRadius(10)
.border({ width: 2, color: this.isCorrect ? '#4CAF50' : '#F44336' })
}
}
.width('100%')
.height('100%')
.padding(10)
.justifyContent(FlexAlign.Start)
}
@Builder
ViewDisplay(title: string, viewData: number[][]) {
Column({ space: 8 }) {
Text(title)
.fontSize(14)
.fontWeight(FontWeight.Medium)
Column({ space: 2 }) {
ForEach(viewData, (row: number[]) => {
Row({ space: 2 }) {
ForEach(row, (cell: number) => {
Rect()
.width(this.cubeSize)
.height(this.cubeSize)
.fill(cell === 1 ? '#2196F3' : '#E0E0E0')
.stroke('#333')
.strokeWidth(1)
})
}
})
}
}
.padding(10)
.backgroundColor('#FFFFFF')
.borderRadius(8)
.border({ width: 1, color: '#DDD' })
}
@Builder
CubeCell(x: number, y: number, z: number) {
Stack() {
Rect()
.width(this.cubeSize)
.height(this.cubeSize)
.fill(this.hasCubeAt(x, y, z) ? '#FF5722' : '#FFFFFF')
.stroke('#333')
.strokeWidth(1)
if (this.hasCubeAt(x, y, z)) {
Text('●')
.fontSize(20)
.fontColor('#FFFFFF')
}
}
.onClick(() => {
this.toggleCube(x, y, z)
})
}
private hasCubeAt(x: number, y: number, z: number): boolean {
return this.userCubes.some(cube => cube.x === x && cube.y === y && cube.z === z)
}
private toggleCube(x: number, y: number, z: number) {
const index = this.userCubes.findIndex(cube => cube.x === x && cube.y === y && cube.z === z)
if (index >= 0) {
this.userCubes.splice(index, 1)
} else {
this.userCubes.push({ x, y, z })
}
this.showResult = false
}
private checkAnswer() {
const userFront = this.generateFrontView()
const userTop = this.generateTopView()
const userSide = this.generateSideView()
this.isCorrect = this.compareViews(userFront, this.targetView.front) &&
this.compareViews(userTop, this.targetView.top) &&
this.compareViews(userSide, this.targetView.side)
this.showResult = true
}
private generateFrontView(): number[][] {
const view: number[][] = [[0, 0, 0], [0, 0, 0], [0, 0, 0]]
for (const cube of this.userCubes) {
if (view[cube.y][cube.x] === 0) {
view[cube.y][cube.x] = 1
}
}
return view
}
private generateTopView(): number[][] {
const view: number[][] = [[0, 0, 0], [0, 0, 0], [0, 0, 0]]
for (const cube of this.userCubes) {
if (view[cube.z][cube.x] === 0) {
view[cube.z][cube.x] = 1
}
}
return view
}
private generateSideView(): number[][] {
const view: number[][] = [[0, 0, 0], [0, 0, 0], [0, 0, 0]]
for (const cube of this.userCubes) {
if (view[cube.y][cube.z] === 0) {
view[cube.y][cube.z] = 1
}
}
return view
}
private compareViews(view1: number[][], view2: number[][]): boolean {
for (let i = 0; i < 3; i++) {
for (let j = 0; j < 3; j++) {
if (view1[i][j] !== view2[i][j]) {
return false
}
}
}
return true
}
private resetLevel() {
this.userCubes = []
this.showResult = false
}
private nextLevel() {
this.currentLevel++
this.userCubes = []
this.showResult = false
this.generateNewLevel()
}
private generateNewLevel() {
const levels: ViewData[] = [
{
front: [[1, 1, 0], [1, 0, 0], [0, 0, 0]],
top: [[1, 1, 0], [1, 0, 0], [0, 0, 0]],
side: [[1, 1, 0], [1, 0, 0], [0, 0, 0]]
},
{
front: [[1, 1, 1], [0, 1, 0], [0, 0, 0]],
top: [[1, 1, 1], [0, 1, 0], [0, 0, 0]],
side: [[1, 1, 1], [0, 1, 0], [0, 0, 0]]
},
{
front: [[1, 0, 1], [0, 1, 0], [1, 0, 1]],
top: [[1, 0, 1], [0, 1, 0], [1, 0, 1]],
side: [[1, 0, 1], [0, 1, 0], [1, 0, 1]]
},
{
front: [[1, 1, 0], [1, 1, 0], [0, 0, 0]],
top: [[1, 1, 0], [1, 1, 0], [0, 0, 0]],
side: [[1, 1, 0], [1, 1, 0], [0, 0, 0]]
},
{
front: [[1, 1, 1], [1, 1, 1], [1, 1, 1]],
top: [[1, 1, 1], [1, 1, 1], [1, 1, 1]],
side: [[1, 1, 1], [1, 1, 1], [1, 1, 1]]
}
]
const levelIndex = (this.currentLevel - 1) % levels.length
this.targetView = levels[levelIndex]
}
}
