Harmonyos应用实例233:数独逻辑教练 (综合与实践)
·
5. 数独逻辑教练 (综合与实践)

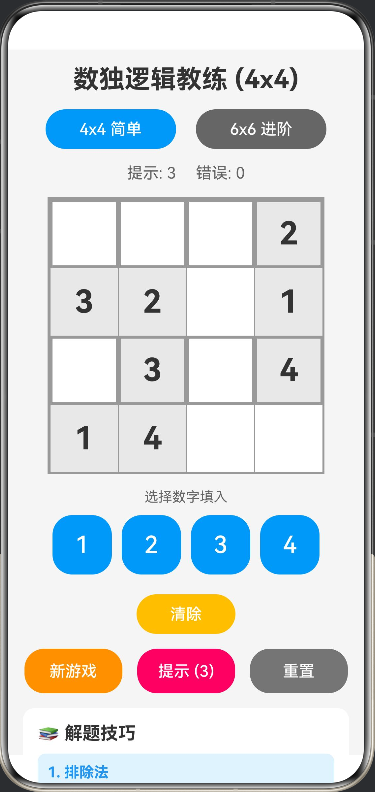

功能介绍:
提供一个 4x4 或 6x6 的入门级数独游戏,专为训练逻辑推理设计。系统随机生成题目,用户点击格子填入数字。如果填入错误,系统会给予红色高亮提示。包含“提示”功能,自动填入一个正确数字,帮助学生理解排除法和唯一性原理。
// 数独格子状态接口
interface CellState {
value: number
isFixed: boolean
isError: boolean
isHint: boolean
}
// 选中格子位置接口
interface CellPosition {
row: number
col: number
}
// 颜色配置
interface SudokuColors {
background: string
primary: string
secondary: string
accent: string
success: string
error: string
warning: string
textPrimary: string
textSecondary: string
cellBackground: string
cellFixed: string
cellSelected: string
cellError: string
cellHint: string
gridBorder: string
}
@Entry
@Component
struct SudokuGame {
// 颜色配置
private readonly COLORS: SudokuColors = {
background: '#F5F5F5',
primary: '#2196F3',
secondary: '#FF9800',
accent: '#E91E63',
success: '#4CAF50',
error: '#F44336',
warning: '#FFC107',
textPrimary: '#333333',
textSecondary: '#666666',
cellBackground: '#FFFFFF',
cellFixed: '#E8E8E8',
cellSelected: '#BBDEFB',
cellError: '#FFCDD2',
cellHint: '#C8E6C9',
gridBorder: '#999999'
}
// 游戏状态
@State gridSize: number = 4 // 4x4 或 6x6
@State board: CellState[][] = []
@State solution: number[][] = []
@State selectedCell: CellPosition | null = null
@State hintCount: number = 3 // 剩余提示次数
@State isComplete: boolean = false
@State errorCount: number = 0
// 初始化
aboutToAppear() {
this.newGame()
}
// 生成新游戏
private newGame() {
this.solution = this.generateSolution(this.gridSize)
this.board = this.createPuzzle(this.solution, this.gridSize)
this.selectedCell = null
this.hintCount = 3
this.isComplete = false
this.errorCount = 0
}
// 生成完整解答
private generateSolution(size: number): number[][] {
const solution: number[][] = Array(size).fill(0).map(() => Array(size).fill(0))
if (size === 4) {
// 4x4 数独:2x2 宫格
const base = [
[1, 2, 3, 4],
[3, 4, 1, 2],
[2, 1, 4, 3],
[4, 3, 2, 1]
]
// 随机变换
return this.shuffleSudoku(base)
} else {
// 6x6 数独:2x3 或 3x2 宫格
const base = [
[1, 2, 3, 4, 5, 6],
[4, 5, 6, 1, 2, 3],
[2, 3, 4, 5, 6, 1],
[5, 6, 1, 2, 3, 4],
[3, 4, 5, 6, 1, 2],
[6, 1, 2, 3, 4, 5]
]
return this.shuffleSudoku(base)
}
}
// 随机变换数独
private shuffleSudoku(grid: number[][]): number[][] {
const size = grid.length
const result = grid.map(row => [...row])
// 随机交换数字
for (let i = 1; i <= size; i++) {
const swapWith = Math.floor(Math.random() * size) + 1
if (i !== swapWith) {
for (let r = 0; r < size; r++) {
for (let c = 0; c < size; c++) {
if (result[r][c] === i) result[r][c] = swapWith
else if (result[r][c] === swapWith) result[r][c] = i
}
}
}
}
// 随机交换行(在同一宫内)
if (size === 4) {
// 2x2 宫格
for (let band = 0; band < 2; band++) {
if (Math.random() > 0.5) {
const temp = result[band * 2]
result[band * 2] = result[band * 2 + 1]
result[band * 2 + 1] = temp
}
}
} else {
// 6x6: 2行一个宫
for (let band = 0; band < 3; band++) {
if (Math.random() > 0.5) {
const temp = result[band * 2]
result[band * 2] = result[band * 2 + 1]
result[band * 2 + 1] = temp
}
}
}
return result
}
// 创建谜题(挖空)
private createPuzzle(solution: number[][], size: number): CellState[][] {
const board: CellState[][] = []
const cellsToRemove = size === 4 ? 8 : 18 // 移除的数字数量
// 复制解答
for (let r = 0; r < size; r++) {
const row: CellState[] = []
for (let c = 0; c < size; c++) {
row.push({
value: solution[r][c],
isFixed: true,
isError: false,
isHint: false
})
}
board.push(row)
}
// 随机挖空
let removed = 0
while (removed < cellsToRemove) {
const r = Math.floor(Math.random() * size)
const c = Math.floor(Math.random() * size)
if (board[r][c].value !== 0) {
board[r][c].value = 0
board[r][c].isFixed = false
removed++
}
}
return board
}
// 检查填入的数字是否正确
private checkInput(row: number, col: number, num: number): boolean {
return this.solution[row][col] === num
}
// 检查是否完成
private checkComplete(): boolean {
for (let r = 0; r < this.gridSize; r++) {
for (let c = 0; c < this.gridSize; c++) {
if (this.board[r][c].value === 0 || this.board[r][c].isError) {
return false
}
}
}
return true
}
// 使用提示
private useHint() {
if (this.hintCount <= 0) return
// 找到所有空格子
const emptyCells: CellPosition[] = []
for (let r = 0; r < this.gridSize; r++) {
for (let c = 0; c < this.gridSize; c++) {
if (this.board[r][c].value === 0) {
emptyCells.push({ row: r, col: c })
}
}
}
if (emptyCells.length === 0) return
// 随机选择一个空格子填入正确答案
const randomCell = emptyCells[Math.floor(Math.random() * emptyCells.length)]
this.board[randomCell.row][randomCell.col].value = this.solution[randomCell.row][randomCell.col]
this.board[randomCell.row][randomCell.col].isHint = true
this.board[randomCell.row][randomCell.col].isError = false
this.hintCount--
// 检查是否完成
if (this.checkComplete()) {
this.isComplete = true
}
}
// 获取格子背景色
private getCellBackground(row: number, col: number): string {
const cell = this.board[row][col]
if (cell.isError) return this.COLORS.cellError
if (cell.isHint) return this.COLORS.cellHint
if (cell.isFixed) return this.COLORS.cellFixed
if (this.selectedCell?.row === row && this.selectedCell?.col === col) return this.COLORS.cellSelected
return this.COLORS.cellBackground
}
// 获取宫格边框样式
private getCellBorder(row: number, col: number): string {
const borderWidth = 1
const thickBorder = 3
let top = borderWidth
let right = borderWidth
let bottom = borderWidth
let left = borderWidth
if (this.gridSize === 4) {
// 2x2 宫格
if (row % 2 === 0) top = thickBorder
if (row === 3) bottom = thickBorder
if (col % 2 === 0) left = thickBorder
if (col === 3) right = thickBorder
} else {
// 6x6: 2行3列宫格
if (row % 2 === 0) top = thickBorder
if (row === 5) bottom = thickBorder
if (col % 3 === 0) left = thickBorder
if (col === 5) right = thickBorder
}
return `${top}vp ${right}vp ${bottom}vp ${left}vp`
}
// 生成索引数组(0 到 size-1)
private getIndexArray(size: number): number[] {
const arr: number[] = []
for (let i = 0; i < size; i++) {
arr.push(i)
}
return arr
}
// 生成数字数组(1 到 size)
private getNumberArray(size: number): number[] {
const arr: number[] = []
for (let i = 1; i <= size; i++) {
arr.push(i)
}
return arr
}
build() {
Column({ space: 15 }) {
// 标题
Text(`数独逻辑教练 (${this.gridSize}x${this.gridSize})`)
.fontSize(26)
.fontWeight(FontWeight.Bold)
.fontColor(this.COLORS.textPrimary)
// 难度选择
Row({ space: 20 }) {
Button('4x4 简单')
.width('40%')
.height(40)
.backgroundColor(this.gridSize === 4 ? this.COLORS.primary : this.COLORS.textSecondary)
.onClick(() => {
this.gridSize = 4
this.newGame()
})
Button('6x6 进阶')
.width('40%')
.height(40)
.backgroundColor(this.gridSize === 6 ? this.COLORS.primary : this.COLORS.textSecondary)
.onClick(() => {
this.gridSize = 6
this.newGame()
})
}
.width('100%')
.justifyContent(FlexAlign.Center)
// 游戏状态
Row({ space: 20 }) {
Text(`提示: ${this.hintCount}`)
.fontSize(16)
.fontColor(this.COLORS.textSecondary)
Text(`错误: ${this.errorCount}`)
.fontSize(16)
.fontColor(this.errorCount > 0 ? this.COLORS.error : this.COLORS.textSecondary)
if (this.isComplete) {
Text('🎉 完成!')
.fontSize(16)
.fontWeight(FontWeight.Bold)
.fontColor(this.COLORS.success)
}
}
// 数独网格
Grid() {
ForEach(this.getIndexArray(this.gridSize), (row: number) => {
ForEach(this.getIndexArray(this.gridSize), (col: number) => {
GridItem() {
Text(this.board[row]?.[col]?.value === 0 ? '' : this.board[row][col].value.toString())
.width(this.gridSize === 4 ? 70 : 50)
.height(this.gridSize === 4 ? 70 : 50)
.fontSize(this.gridSize === 4 ? 32 : 24)
.fontWeight(this.board[row]?.[col]?.isFixed ? FontWeight.Bold : FontWeight.Normal)
.fontColor(this.board[row]?.[col]?.isFixed ? this.COLORS.textPrimary :
(this.board[row]?.[col]?.isHint ? this.COLORS.success : this.COLORS.primary))
.textAlign(TextAlign.Center)
.backgroundColor(this.getCellBackground(row, col))
.borderWidth(this.getCellBorder(row, col))
.borderColor(this.COLORS.gridBorder)
.onClick(() => {
if (!this.board[row][col].isFixed) {
this.selectedCell = { row, col }
}
})
}
})
})
}
.columnsTemplate(this.gridSize === 4 ? '1fr 1fr 1fr 1fr' : '1fr 1fr 1fr 1fr 1fr 1fr')
.rowsTemplate(this.gridSize === 4 ? '1fr 1fr 1fr 1fr' : '1fr 1fr 1fr 1fr 1fr 1fr')
.width(this.gridSize === 4 ? 280 : 300)
.height(this.gridSize === 4 ? 280 : 300)
.backgroundColor(this.COLORS.gridBorder)
.padding(2)
// 数字输入键盘
Column({ space: 10 }) {
Text('选择数字填入')
.fontSize(14)
.fontColor(this.COLORS.textSecondary)
Row({ space: 10 }) {
ForEach(this.getNumberArray(this.gridSize), (num: number) => {
Button(num.toString())
.width(this.gridSize === 4 ? 60 : 45)
.height(this.gridSize === 4 ? 60 : 45)
.fontSize(this.gridSize === 4 ? 24 : 20)
.backgroundColor(this.COLORS.primary)
.onClick(() => {
if (this.selectedCell && !this.board[this.selectedCell.row][this.selectedCell.col].isFixed) {
const isCorrect = this.checkInput(this.selectedCell.row, this.selectedCell.col, num)
this.board[this.selectedCell.row][this.selectedCell.col].value = num
this.board[this.selectedCell.row][this.selectedCell.col].isError = !isCorrect
this.board[this.selectedCell.row][this.selectedCell.col].isHint = false
if (!isCorrect) {
this.errorCount++
}
// 检查是否完成
if (this.checkComplete()) {
this.isComplete = true
}
}
})
})
}
// 清除按钮
Button('清除')
.width(100)
.height(40)
.fontSize(16)
.backgroundColor(this.COLORS.warning)
.margin({ top: 10 })
.onClick(() => {
if (this.selectedCell && !this.board[this.selectedCell.row][this.selectedCell.col].isFixed) {
this.board[this.selectedCell.row][this.selectedCell.col].value = 0
this.board[this.selectedCell.row][this.selectedCell.col].isError = false
this.board[this.selectedCell.row][this.selectedCell.col].isHint = false
}
})
}
// 功能按钮
Row({ space: 15 }) {
Button('新游戏')
.width('30%')
.height(45)
.backgroundColor(this.COLORS.secondary)
.onClick(() => this.newGame())
Button(`提示 (${this.hintCount})`)
.width('30%')
.height(45)
.backgroundColor(this.hintCount > 0 ? this.COLORS.accent : this.COLORS.textSecondary)
.enabled(this.hintCount > 0)
.onClick(() => this.useHint())
Button('重置')
.width('30%')
.height(45)
.backgroundColor('#757575')
.onClick(() => {
// 重置所有非固定格子
for (let r = 0; r < this.gridSize; r++) {
for (let c = 0; c < this.gridSize; c++) {
if (!this.board[r][c].isFixed) {
this.board[r][c].value = 0
this.board[r][c].isError = false
this.board[r][c].isHint = false
}
}
}
this.selectedCell = null
this.errorCount = 0
this.isComplete = false
})
}
.width('100%')
.justifyContent(FlexAlign.Center)
// 教学说明
this.TeachingSection()
}
.width('100%')
.height('100%')
.padding(15)
.backgroundColor(this.COLORS.background)
}
// 教学说明部分
@Builder
TeachingSection() {
Column({ space: 10 }) {
Text('📚 解题技巧')
.fontSize(18)
.fontWeight(FontWeight.Bold)
.width('100%')
.textAlign(TextAlign.Start)
.fontColor(this.COLORS.textPrimary)
// 排除法
Column({ space: 5 }) {
Text('1. 排除法')
.fontSize(15)
.fontWeight(FontWeight.Bold)
.width('100%')
.fontColor(this.COLORS.primary)
Text('观察某一行、列或宫格中已存在的数字,排除不可能的选择。例如:某行已有1、2、3,则空格只能填4。')
.fontSize(13)
.width('100%')
.fontColor(this.COLORS.textSecondary)
}
.width('100%')
.padding(10)
.backgroundColor('#E3F2FD')
.borderRadius(8)
// 唯一性原理
Column({ space: 5 }) {
Text('2. 唯一性原理')
.fontSize(15)
.fontWeight(FontWeight.Bold)
.width('100%')
.fontColor(this.COLORS.primary)
Text('如果某个空格只能填一个数字(其他数字都被排除),则该格必定填此数字。')
.fontSize(13)
.width('100%')
.fontColor(this.COLORS.textSecondary)
}
.width('100%')
.padding(10)
.backgroundColor('#E8F5E9')
.borderRadius(8)
// 宫格观察
Column({ space: 5 }) {
Text('3. 宫格观察法')
.fontSize(15)
.fontWeight(FontWeight.Bold)
.width('100%')
.fontColor(this.COLORS.primary)
Text(this.gridSize === 4
? '4x4数独分为4个2x2宫格,每个宫格内必须包含1-4各一次。'
: '6x6数独分为6个2x3宫格,每个宫格内必须包含1-6各一次。')
.fontSize(13)
.width('100%')
.fontColor(this.COLORS.textSecondary)
}
.width('100%')
.padding(10)
.backgroundColor('#FFF3E0')
.borderRadius(8)
// 游戏规则
Column({ space: 5 }) {
Text('🎮 游戏规则')
.fontSize(15)
.fontWeight(FontWeight.Bold)
.width('100%')
.fontColor(this.COLORS.accent)
Text('• 每行必须包含1-' + this.gridSize + '各一次')
.fontSize(13)
.width('100%')
.fontColor(this.COLORS.textSecondary)
Text('• 每列必须包含1-' + this.gridSize + '各一次')
.fontSize(13)
.width('100%')
.fontColor(this.COLORS.textSecondary)
Text('• 每个宫格必须包含1-' + this.gridSize + '各一次')
.fontSize(13)
.width('100%')
.fontColor(this.COLORS.textSecondary)
Text('• 填入错误会红色提示,可使用提示功能学习')
.fontSize(13)
.width('100%')
.fontColor(this.COLORS.textSecondary)
}
.width('100%')
.padding(10)
.backgroundColor('#FCE4EC')
.borderRadius(8)
}
.width('100%')
.padding(15)
.backgroundColor(this.COLORS.cellBackground)
.borderRadius(12)
}
}
更多推荐



所有评论(0)
