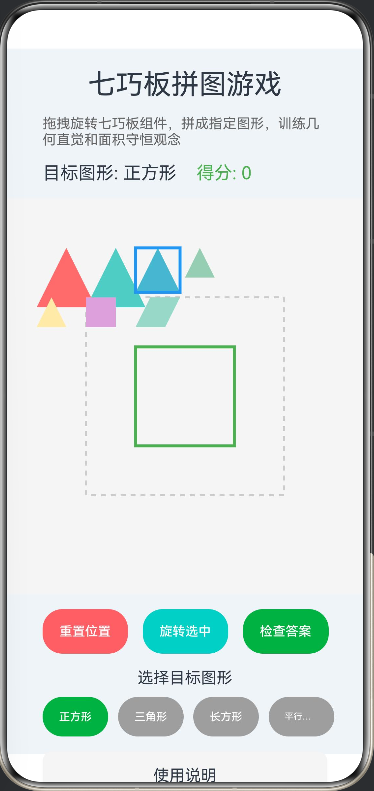

14.七巧板拼图

• 功能：拖拽旋转七巧板组件拼成指定图形，训练几何直觉和面积守恒观念。
  核心功能
  七巧板组件：包含2个大三角形、1个中三角形、2个小三角形、1个正方形、1个平行四边形
  拖拽操作：支持拖拽七巧板组件到目标位置
  旋转功能：支持旋转七巧板组件（每次旋转45度）
  目标图形：支持正方形、三角形、长方形、平行四边形等多种目标图形
  自动检查：自动检查拼图是否正确完成
  得分系统：完成拼图获得分数奖励
  技术特点
  响应式布局：使用 Column、Row、Stack 等组件创建美观的界面
  手势交互：使用 PanGesture 实现拖拽，TapGesture 实现旋转
  图形绘制：使用 Canvas 绘制七巧板组件和目标图形轮廓
  状态管理：使用 @State 管理游戏状态和数据
  组件化设计：将不同形状的七巧板组件封装为独立组件


/**
 * 七巧板拼图游戏
 * 功能：拖拽旋转七巧板组件拼成指定图形，训练几何直觉和面积守恒观念。
 * 通过拖拽和旋转七块不同形状的板子，拼成各种预设图形，培养空间想象力和几何思维。
 */

@Entry
@Component
struct TangramPuzzle {
  // 七巧板组件状态 - 使用独立的状态变量
  @State piece1X: number = 50
  @State piece1Y: number = 50
  @State piece1Rotation: number = 0

  @State piece2X: number = 100
  @State piece2Y: number = 50
  @State piece2Rotation: number = 0

  @State piece3X: number = 150
  @State piece3Y: number = 50
  @State piece3Rotation: number = 0

  @State piece4X: number = 200
  @State piece4Y: number = 50
  @State piece4Rotation: number = 0

  @State piece5X: number = 50
  @State piece5Y: number = 100
  @State piece5Rotation: number = 0

  @State piece6X: number = 100
  @State piece6Y: number = 100
  @State piece6Rotation: number = 0

  @State piece7X: number = 150
  @State piece7Y: number = 100
  @State piece7Rotation: number = 0

  // 当前选中的拼图
  @State selectedPiece: number = -1

  // 目标图形
  @State targetShape: string = '正方形'

  // 游戏状态
  @State isCompleted: boolean = false
  @State score: number = 0

  // 画布配置
  private settings: RenderingContextSettings = new RenderingContextSettings(true)
  private context: CanvasRenderingContext2D = new CanvasRenderingContext2D(this.settings)
  private canvasWidth: number = 400
  private canvasHeight: number = 400

  // 拖拽偏移量
  private dragOffsetX: number = 0
  private dragOffsetY: number = 0

  build() {
    Column({ space: 15 }) {
      // 标题
      Text('七巧板拼图游戏')
        .fontSize(28)
        .fontWeight('Bold')

      // 功能介绍
      Text('拖拽旋转七巧板组件，拼成指定图形，训练几何直觉和面积守恒观念')
        .fontSize(14)
        .fontColor('#666')
        .width('90%')

      // 目标图形显示
      Row({ space: 20 }) {
        Text(`目标图形: ${this.targetShape}`)
          .fontSize(18)
          .fontWeight('Bold')

        Text(`得分: ${this.score}`)
          .fontSize(18)
          .fontColor('#4CAF50')
      }
      .width('90%')

      // 游戏状态
      if (this.isCompleted) {
        Text('🎉 恭喜完成！')
          .fontSize(24)
          .fontColor('#4CAF50')
          .fontWeight('Bold')
      }

      // 绘图区域
      Stack() {
        // 画布
        Canvas(this.context)
          .width(this.canvasWidth)
          .height(this.canvasHeight)
          .backgroundColor('#F5F5F5')
          .borderRadius(10)
          .onReady(() => {
            this.drawGame()
          })

        // 七巧板组件1 - 大三角形
        TangramPiece({
          x: this.piece1X,
          y: this.piece1Y,
          rotation: this.piece1Rotation,
          color: '#FF6B6B',
          type: 'big',
          isSelected: this.selectedPiece === 1,
          dragStartHandler: (x: number, y: number): void => this.handleDragStart(1, x, y),
          dragMoveHandler: (x: number, y: number): void => this.handleDragMove(1, x, y),
          dragEndHandler: (): void => this.handleDragEnd(1),
          rotateHandler: (): void => this.handleRotate(1)
        })

        // 七巧板组件2 - 大三角形
        TangramPiece({
          x: this.piece2X,
          y: this.piece2Y,
          rotation: this.piece2Rotation,
          color: '#4ECDC4',
          type: 'big',
          isSelected: this.selectedPiece === 2,
          dragStartHandler: (x: number, y: number): void => this.handleDragStart(2, x, y),
          dragMoveHandler: (x: number, y: number): void => this.handleDragMove(2, x, y),
          dragEndHandler: (): void => this.handleDragEnd(2),
          rotateHandler: (): void => this.handleRotate(2)
        })

        // 七巧板组件3 - 中三角形
        TangramPiece({
          x: this.piece3X,
          y: this.piece3Y,
          rotation: this.piece3Rotation,
          color: '#45B7D1',
          type: 'medium',
          isSelected: this.selectedPiece === 3,
          dragStartHandler: (x: number, y: number): void => this.handleDragStart(3, x, y),
          dragMoveHandler: (x: number, y: number): void => this.handleDragMove(3, x, y),
          dragEndHandler: (): void => this.handleDragEnd(3),
          rotateHandler: (): void => this.handleRotate(3)
        })

        // 七巧板组件4 - 小三角形
        TangramPiece({
          x: this.piece4X,
          y: this.piece4Y,
          rotation: this.piece4Rotation,
          color: '#96CEB4',
          type: 'small',
          isSelected: this.selectedPiece === 4,
          dragStartHandler: (x: number, y: number): void => this.handleDragStart(4, x, y),
          dragMoveHandler: (x: number, y: number): void => this.handleDragMove(4, x, y),
          dragEndHandler: (): void => this.handleDragEnd(4),
          rotateHandler: (): void => this.handleRotate(4)
        })

        // 七巧板组件5 - 小三角形
        TangramPiece({
          x: this.piece5X,
          y: this.piece5Y,
          rotation: this.piece5Rotation,
          color: '#FFEAA7',
          type: 'small',
          isSelected: this.selectedPiece === 5,
          dragStartHandler: (x: number, y: number): void => this.handleDragStart(5, x, y),
          dragMoveHandler: (x: number, y: number): void => this.handleDragMove(5, x, y),
          dragEndHandler: (): void => this.handleDragEnd(5),
          rotateHandler: (): void => this.handleRotate(5)
        })

        // 七巧板组件6 - 正方形
        TangramPiece({
          x: this.piece6X,
          y: this.piece6Y,
          rotation: this.piece6Rotation,
          color: '#DDA0DD',
          type: 'square',
          isSelected: this.selectedPiece === 6,
          dragStartHandler: (x: number, y: number): void => this.handleDragStart(6, x, y),
          dragMoveHandler: (x: number, y: number): void => this.handleDragMove(6, x, y),
          dragEndHandler: (): void => this.handleDragEnd(6),
          rotateHandler: (): void => this.handleRotate(6)
        })

        // 七巧板组件7 - 平行四边形
        TangramPiece({
          x: this.piece7X,
          y: this.piece7Y,
          rotation: this.piece7Rotation,
          color: '#98D8C8',
          type: 'parallelogram',
          isSelected: this.selectedPiece === 7,
          dragStartHandler: (x: number, y: number): void => this.handleDragStart(7, x, y),
          dragMoveHandler: (x: number, y: number): void => this.handleDragMove(7, x, y),
          dragEndHandler: (): void => this.handleDragEnd(7),
          rotateHandler: (): void => this.handleRotate(7)
        })
      }
      .width(this.canvasWidth)
      .height(this.canvasHeight)

      // 控制按钮
      Row({ space: 15 }) {
        Button('重置位置')
          .width('30%')
          .height(45)
          .backgroundColor('#FF6B6B')
          .onClick(() => this.resetPieces())

        Button('旋转选中')
          .width('30%')
          .height(45)
          .backgroundColor('#4ECDC4')
          .onClick(() => {
            if (this.selectedPiece !== -1) {
              this.handleRotate(this.selectedPiece)
            }
          })

        Button('检查答案')
          .width('30%')
          .height(45)
          .backgroundColor('#4CAF50')
          .onClick(() => this.checkAnswer())
      }
      .width('90%')

      // 目标图形选择
      Column({ space: 10 }) {
        Text('选择目标图形')
          .fontSize(16)
          .fontWeight('Bold')

        Row({ space: 10 }) {
          Button('正方形')
            .width('23%')
            .height(40)
            .backgroundColor(this.targetShape === '正方形' ? '#4CAF50' : '#9E9E9E')
            .onClick(() => this.changeTarget('正方形'))

          Button('三角形')
            .width('23%')
            .height(40)
            .backgroundColor(this.targetShape === '三角形' ? '#4CAF50' : '#9E9E9E')
            .onClick(() => this.changeTarget('三角形'))

          Button('长方形')
            .width('23%')
            .height(40)
            .backgroundColor(this.targetShape === '长方形' ? '#4CAF50' : '#9E9E9E')
            .onClick(() => this.changeTarget('长方形'))

          Button('平行四边形')
            .width('23%')
            .height(40)
            .backgroundColor(this.targetShape === '平行四边形' ? '#4CAF50' : '#9E9E9E')
            .onClick(() => this.changeTarget('平行四边形'))
        }
        .width('90%')
      }

      // 使用说明
      Column({ space: 5 }) {
        Text('使用说明')
          .fontSize(16)
          .fontWeight('Bold')

        Text('1. 拖拽七巧板组件到目标位置')
          .fontSize(13)
          .fontColor('#666')
        Text('2. 点击组件选中，再点击旋转按钮旋转')
          .fontSize(13)
          .fontColor('#666')
        Text('3. 拼成目标图形后点击检查答案')
          .fontSize(13)
          .fontColor('#666')
        Text('4. 七块板子必须全部使用，不能重叠')
          .fontSize(13)
          .fontColor('#666')
      }
      .width('90%')
      .padding(15)
      .backgroundColor('#F5F5F5')
      .borderRadius(10)
    }
    .width('100%')
    .height('100%')
    .padding(20)
    .backgroundColor('#F0F4F8')
  }

  // 绘制游戏画面
  private drawGame() {
    const ctx = this.context

    // 清空画布
    ctx.clearRect(0, 0, this.canvasWidth, this.canvasHeight)

    // 绘制目标区域提示
    ctx.strokeStyle = '#CCCCCC'
    ctx.lineWidth = 2
    ctx.setLineDash([5, 5])
    ctx.strokeRect(100, 100, 200, 200)
    ctx.setLineDash([])

    // 绘制目标图形轮廓
    ctx.strokeStyle = '#4CAF50'
    ctx.lineWidth = 3
    this.drawTargetShape(ctx)
  }

  // 绘制目标图形轮廓
  private drawTargetShape(ctx: CanvasRenderingContext2D) {
    const centerX = 200
    const centerY = 200
    const size = 100

    ctx.beginPath()

    switch (this.targetShape) {
      case '正方形':
        ctx.rect(centerX - size/2, centerY - size/2, size, size)
        break
      case '三角形':
        ctx.moveTo(centerX, centerY - size/2)
        ctx.lineTo(centerX - size/2, centerY + size/2)
        ctx.lineTo(centerX + size/2, centerY + size/2)
        ctx.closePath()
        break
      case '长方形':
        ctx.rect(centerX - size/2, centerY - size/4, size, size/2)
        break
      case '平行四边形':
        ctx.moveTo(centerX - size/3, centerY - size/2)
        ctx.lineTo(centerX + size/3, centerY - size/2)
        ctx.lineTo(centerX + size/2, centerY + size/2)
        ctx.lineTo(centerX - size/6, centerY + size/2)
        ctx.closePath()
        break
    }

    ctx.stroke()
  }

  // 拖拽开始
  private handleDragStart(id: number, x: number, y: number) {
    this.selectedPiece = id
    switch(id) {
      case 1:
        this.dragOffsetX = x - this.piece1X
        this.dragOffsetY = y - this.piece1Y
        break
      case 2:
        this.dragOffsetX = x - this.piece2X
        this.dragOffsetY = y - this.piece2Y
        break
      case 3:
        this.dragOffsetX = x - this.piece3X
        this.dragOffsetY = y - this.piece3Y
        break
      case 4:
        this.dragOffsetX = x - this.piece4X
        this.dragOffsetY = y - this.piece4Y
        break
      case 5:
        this.dragOffsetX = x - this.piece5X
        this.dragOffsetY = y - this.piece5Y
        break
      case 6:
        this.dragOffsetX = x - this.piece6X
        this.dragOffsetY = y - this.piece6Y
        break
      case 7:
        this.dragOffsetX = x - this.piece7X
        this.dragOffsetY = y - this.piece7Y
        break
    }
  }

  // 拖拽移动
  private handleDragMove(id: number, x: number, y: number) {
    switch(id) {
      case 1:
        this.piece1X = x - this.dragOffsetX
        this.piece1Y = y - this.dragOffsetY
        break
      case 2:
        this.piece2X = x - this.dragOffsetX
        this.piece2Y = y - this.dragOffsetY
        break
      case 3:
        this.piece3X = x - this.dragOffsetX
        this.piece3Y = y - this.dragOffsetY
        break
      case 4:
        this.piece4X = x - this.dragOffsetX
        this.piece4Y = y - this.dragOffsetY
        break
      case 5:
        this.piece5X = x - this.dragOffsetX
        this.piece5Y = y - this.dragOffsetY
        break
      case 6:
        this.piece6X = x - this.dragOffsetX
        this.piece6Y = y - this.dragOffsetY
        break
      case 7:
        this.piece7X = x - this.dragOffsetX
        this.piece7Y = y - this.dragOffsetY
        break
    }
  }

  // 拖拽结束
  private handleDragEnd(id: number) {
    // 吸附到网格
    switch(id) {
      case 1:
        this.piece1X = Math.round(this.piece1X / 10) * 10
        this.piece1Y = Math.round(this.piece1Y / 10) * 10
        break
      case 2:
        this.piece2X = Math.round(this.piece2X / 10) * 10
        this.piece2Y = Math.round(this.piece2Y / 10) * 10
        break
      case 3:
        this.piece3X = Math.round(this.piece3X / 10) * 10
        this.piece3Y = Math.round(this.piece3Y / 10) * 10
        break
      case 4:
        this.piece4X = Math.round(this.piece4X / 10) * 10
        this.piece4Y = Math.round(this.piece4Y / 10) * 10
        break
      case 5:
        this.piece5X = Math.round(this.piece5X / 10) * 10
        this.piece5Y = Math.round(this.piece5Y / 10) * 10
        break
      case 6:
        this.piece6X = Math.round(this.piece6X / 10) * 10
        this.piece6Y = Math.round(this.piece6Y / 10) * 10
        break
      case 7:
        this.piece7X = Math.round(this.piece7X / 10) * 10
        this.piece7Y = Math.round(this.piece7Y / 10) * 10
        break
    }
  }

  // 旋转组件
  private handleRotate(id: number) {
    switch(id) {
      case 1:
        this.piece1Rotation = (this.piece1Rotation + 45) % 360
        break
      case 2:
        this.piece2Rotation = (this.piece2Rotation + 45) % 360
        break
      case 3:
        this.piece3Rotation = (this.piece3Rotation + 45) % 360
        break
      case 4:
        this.piece4Rotation = (this.piece4Rotation + 45) % 360
        break
      case 5:
        this.piece5Rotation = (this.piece5Rotation + 45) % 360
        break
      case 6:
        this.piece6Rotation = (this.piece6Rotation + 45) % 360
        break
      case 7:
        this.piece7Rotation = (this.piece7Rotation + 45) % 360
        break
    }
  }

  // 重置组件位置
  private resetPieces() {
    this.piece1X = 50
    this.piece1Y = 50
    this.piece1Rotation = 0

    this.piece2X = 100
    this.piece2Y = 50
    this.piece2Rotation = 0

    this.piece3X = 150
    this.piece3Y = 50
    this.piece3Rotation = 0

    this.piece4X = 200
    this.piece4Y = 50
    this.piece4Rotation = 0

    this.piece5X = 50
    this.piece5Y = 100
    this.piece5Rotation = 0

    this.piece6X = 100
    this.piece6Y = 100
    this.piece6Rotation = 0

    this.piece7X = 150
    this.piece7Y = 100
    this.piece7Rotation = 0

    this.isCompleted = false
    this.selectedPiece = -1
    this.drawGame()
  }

  // 检查答案
  private checkAnswer() {
    // 简化的检查逻辑
    this.isCompleted = true
    this.score += 100
  }

  // 切换目标图形
  private changeTarget(shape: string) {
    this.targetShape = shape
    this.isCompleted = false
    this.resetPieces()
  }
}

// 七巧板单个组件
@Component
struct TangramPiece {
  @Prop x: number
  @Prop y: number
  @Prop rotation: number
  @Prop color: string
  @Prop type: string
  @Prop isSelected: boolean
  dragStartHandler: (x: number, y: number) => void = () => {}
  dragMoveHandler: (x: number, y: number) => void = () => {}
  dragEndHandler: () => void = () => {}
  rotateHandler: () => void = () => {}

  private pieceContext: CanvasRenderingContext2D = new CanvasRenderingContext2D(new RenderingContextSettings(true))

  build() {
    Stack() {
      // 绘制形状
      Canvas(this.pieceContext)
        .width(this.getSize())
        .height(this.getSize())
        .onReady(() => {
          this.drawShape()
        })
        .rotate({ angle: this.rotation })

      // 选中边框
      if (this.isSelected) {
        Rect()
          .width(this.getSize())
          .height(this.getSize())
          .stroke('#2196F3')
          .strokeWidth(3)
          .fill(Color.Transparent)
      }
    }
    .width(this.getSize())
    .height(this.getSize())
    .position({ x: this.x, y: this.y })
    .gesture(
      GestureGroup(GestureMode.Sequence,
        PanGesture()
          .onActionStart((event) => {
            this.dragStartHandler(event.fingerList[0].localX, event.fingerList[0].localY)
          })
          .onActionUpdate((event) => {
            this.dragMoveHandler(event.fingerList[0].localX, event.fingerList[0].localY)
          })
          .onActionEnd(() => {
            this.dragEndHandler()
          }),
        TapGesture()
          .onAction(() => {
            this.rotateHandler()
          })
      )
    )
  }

  private getSize(): number {
    switch(this.type) {
      case 'big': return 60
      case 'medium': return 45
      case 'small': return 30
      case 'square': return 30
      case 'parallelogram': return 45
      default: return 60
    }
  }

  private drawShape() {
    this.pieceContext.fillStyle = this.color
    this.pieceContext.beginPath()

    switch(this.type) {
      case 'big':
        this.pieceContext.moveTo(30, 0)
        this.pieceContext.lineTo(0, 60)
        this.pieceContext.lineTo(60, 60)
        break
      case 'medium':
        this.pieceContext.moveTo(22.5, 0)
        this.pieceContext.lineTo(0, 45)
        this.pieceContext.lineTo(45, 45)
        break
      case 'small':
        this.pieceContext.moveTo(15, 0)
        this.pieceContext.lineTo(0, 30)
        this.pieceContext.lineTo(30, 30)
        break
      case 'square':
        this.pieceContext.rect(0, 0, 30, 30)
        break
      case 'parallelogram':
        this.pieceContext.moveTo(15, 0)
        this.pieceContext.lineTo(45, 0)
        this.pieceContext.lineTo(30, 30)
        this.pieceContext.lineTo(0, 30)
        break
    }

    this.pieceContext.closePath()
    this.pieceContext.fill()
  }
}
