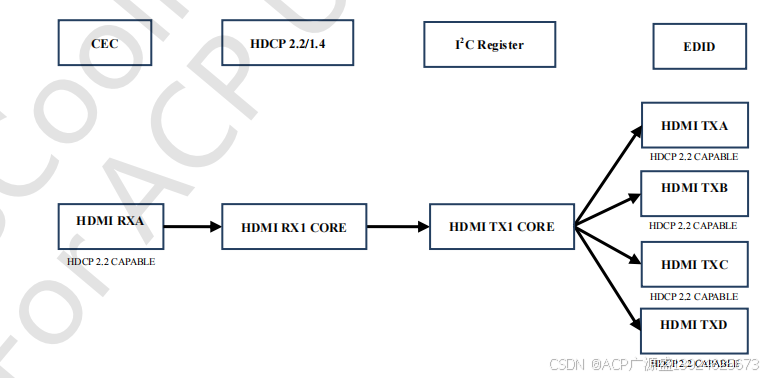

GSV2005 是一款可配置的 1 进 4 出 HDMI 分配器，兼容 HDMI 1.4/2.0 标准，支持 HDCP 1.4/2.2 协议，4 个输出端的发射能力完全一致。

音视频处理能力

• 视频分辨率与像素时钟：HDMI 输入输出的最大处理像素时钟频率为 600MHz，可支持最高4Kx2K@60Hz 4:4:4 8 位的视频分辨率。
• 音频采样频率：非压缩时序下，最大处理音频采样频率为 192KHz。
• HDR 支持：支持 HDR10 和 Dolby Vision HDR 的输入与输出。
• 级联能力：凭借强大的 HDMI 接收均衡器（Rx equalizer）和发射预加重（Tx pre-emphasis）功能，可级联至少 7 级自身（或 GSV2000 系列芯片），兼容所有 HDMI 1.3/1.4/2.0 时序。

1.2 特性 - 1.2.1 HDMI 视频输入输出

• 协议兼容：
  • 视频协议：兼容 HDMI2.0b、HDMI1.4b；
  • 版权保护协议：兼容 HDCP2.2/2.3 和 HDCP1.4。
• 数据速率：最高可达 18Gbps。
• 发射与接收优化：
  • 可编程 HDMI 发射端（Tx）的输出摆幅、压摆率、预加重；
  • 具备自适应接收端（Rx）均衡功能。
• 电气特性：支持 AC 耦合，DDC/HPD/CEC 接口具备 5V 容忍度。
• HDR 扩展支持：除基础 HDR10 外，还支持 HDR12、Dolby Vision、HLG 格式。

简言之，GSV2005 是一款高性能 HDMI 分配器芯片，在分辨率支持、HDR 兼容性、信号增强（均衡、预加重）等方面表现出色，适用于需要多路 HDMI 信号分发且对画质、协议兼容性要求较高的场景（如影音设备、工业显示等领域）。

GSV2005 is a configurable 1-in-4-out HDMI splitter, compatible with HDMI 1.4/2.0 standards and supporting HDCP 1.4/2.2 protocols. The transmission capabilities of its 4 output ports are completely consistent.

Audio and video processing capabilitiesVideo resolution and pixel clock: The maximum processing pixel clock frequency for HDMI input and output is 600MHz, which can support a maximum video resolution of 4Kx2K@60Hz 4:4:4 8-bit.Audio sampling frequency: Under uncompressed timing, the maximum processing audio sampling frequency is 192KHz.HDR support: Supports input and output of HDR10 and Dolby Vision HDR.Cascading capability: With powerful HDMI receiver equalizer (Rx equalizer) and transmitter pre-emphasis (Tx pre-emphasis) functions, it can cascade at least 7 levels of itself (or GSV2000 series chips), compatible with all HDMI 1.3/1.4/2.0 timings.

1.2 Features - 1.2.1 HDMI video input and outputProtocol compatibility:Video protocols: Compatible with HDMI2.0b, HDMI1.4b;Copyright protection protocols: Compatible with HDCP2.2/2.3 and HDCP1.4.Data rate: Up to 18Gbps.

Transmitter and receiver optimization:Programmable output swing, slew rate, and pre-emphasis of the HDMI transmitter (Tx);Equipped with adaptive receiver (Rx) equalization function.

Electrical characteristics: Supports AC coupling, and the DDC/HPD/CEC interfaces have 5V tolerance.

HDR extended support: In addition to basic HDR10, it also supports HDR12, Dolby Vision, and HLG formats.

In short, GSV2005 is a high-performance HDMI splitter chip, which performs excellently in terms of resolution support, HDR compatibility, and signal enhancement (equalization, pre-emphasis). It is suitable for scenarios that require multi-channel HDMI signal distribution and have high requirements for image quality and protocol compatibility (such as audio-visual equipment, industrial display and other fields).
