金融类应用扩展面板参数说明

startAbilityByType接口中type字段为finance，对应的wantParam参数：

拉起方开发步骤

1. 导入ohos.app.ability.common模块。

import { common } from '@kit.AbilityKit';

2. 构造接口参数并调用startAbilityByType接口。

let context = getContext(this) as common.UIAbilityContext;
let wantParam: Record<string, Object> = {
  'sceneType': 1,
  "bankCardNo": '123456789'
};
let abilityStartCallback: common.AbilityStartCallback = {
  onError: (code: number, name: string, message: string) => {
    console.log(`onError code ${code} name: ${name} message: ${message}`);
  },
  onResult: (result)=>{
    console.log(`onResult result: ${JSON.stringify(result)}`);
  }
}

context.startAbilityByType("finance", wantParam, abilityStartCallback,
    (err) => {
        if (err) {
            console.error(`startAbilityByType fail, err: ${JSON.stringify(err)}`);
        } else {
            console.log(`success`);
        }
});

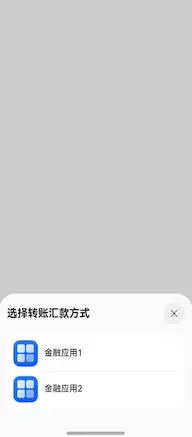

效果示例图：

目标方开发步骤

1. 在module.json5中配置 uris ，步骤如下：

• 设置linkFeature属性以声明当前应用支持的特性功能，从而系统可以从设备已安装应用中找到当前支持该特性的应用，取值范围如下：

• 设置scheme、host、port、path/pathStartWith属性，与Want中URI相匹配，以便区分不同功能。

{
  "abilities": [
      {
      "skills": [
          {
          "uris": [
              {
              "scheme": "finance", // 这里仅示意，应用需确保这里声明的的uri能被外部正常拉起
              "host": "transfer",
              "path": "",
              "linkFeature": "Transfer" // 声明应用支持转账汇款功能
              },
              {
              "scheme": "finance", // 这里仅示意，应用需确保这里声明的的uri能被外部正常拉起
              "host": "credit_card_repayment",
              "path": "",
              "linkFeature": "CreditCardRepayment" // 声明应用支持信用卡还款功能
              }
          ]
          }
      ]
      }
  ]
}

2. 解析面板传过来的参数并做对应处理。

UIAbility::onCreate(want: Want, launchParam: AbilityConstant.LaunchParam): void

在参数want.uri中会携带目标方配置的linkFeature对应的uri;

在参数want.parameters中会携带Caller方传入的参数，如下表所示：

应用可根据 linkFeature 中定义的特性功能，比如转账汇款和信用卡还款，结合接收到的uri开发不同的样式页面。

完整示例：

import { AbilityConstant, UIAbility, Want } from '@kit.AbilityKit';
import { hilog } from '@kit.PerformanceAnalysisKit';
import { window } from '@kit.ArkUI';

const TAG = 'EntryAbility'

export default class EntryAbility extends UIAbility {
    windowStage: window.WindowStage | null = null;

    uri?: string;
    bankCardNo?: string;

    onCreate(want: Want, launchParam: AbilityConstant.LaunchParam): void {
        hilog.info(0x0000, TAG, `onCreate, want=${JSON.stringify(want)}`);
        super.onCreate(want, launchParam);
        this.parseWant(want);
    }

    onNewWant(want: Want, launchParam: AbilityConstant.LaunchParam): void {
        hilog.info(0x0000, TAG, `onNewWant, want=${JSON.stringify(want)}`);
        super.onNewWant(want, launchParam);
        this.parseWant(want);
        if (!this.windowStage) {
            hilog.error(0x0000, TAG, 'windowStage is null');
            this.context.terminateSelf();
            return;
        }
        this.loadPage(this.windowStage);
    }

    private parseWant(want: Want): void {
        this.uri = want.uri as string | undefined;
        this.bankCardNo = want.parameters?.bankCardNo as string | undefined;
    }

    private loadPage(windowStage: window.WindowStage): void {
        hilog.info(0x0000, TAG, `loadPage, uri=${this.uri}`);
        if (this.uri === 'finance://transfer') {
            // 构建转账场景参数
            const storage: LocalStorage = new LocalStorage({
                "bankCardNo": this.bankCardNo
            } as Record<string, Object>);
            // 拉起转账页面
            windowStage.loadContent('pages/TransferPage', storage)
        } else if (this.uri === 'finance://credit_card_repayment') {
            // 构建信用卡还款场景参数
            const storage: LocalStorage = new LocalStorage({
                "bankCardNo": this.bankCardNo
            } as Record<string, Object>);
            // 拉起信用卡还款页面
            windowStage.loadContent('pages/CreditCardRepaymentPage', storage)
        } else {
            // 默认拉起首页
            windowStage.loadContent('pages/Index', (err) => {
                if (err.code) {
                    hilog.error(0x0000, TAG, 'Failed to load the content. Cause: %{public}s',
                        JSON.stringify(err) ?? '');
                    return;
                }
                hilog.info(0x0000, TAG, 'Succeeded in loading the content.');
            });
        }
    }

    onDestroy(): void {
        hilog.info(0x0000, TAG, `onDestroy`);
    }

    onWindowStageCreate(windowStage: window.WindowStage): void {
        hilog.info(0x0000, TAG, `onWindowStageCreate`);
        this.windowStage = windowStage;
        this.loadPage(this.windowStage);
    }

    onWindowStageDestroy(): void {
        hilog.info(0x0000, TAG, '%{public}s', 'Ability onWindowStageDestroy');
    }

    onForeground(): void {
        hilog.info(0x0000, TAG, '%{public}s', 'Ability onForeground');
    }

    onBackground(): void {
        hilog.info(0x0000, TAG, '%{public}s', 'Ability onBackground');
    }
}
