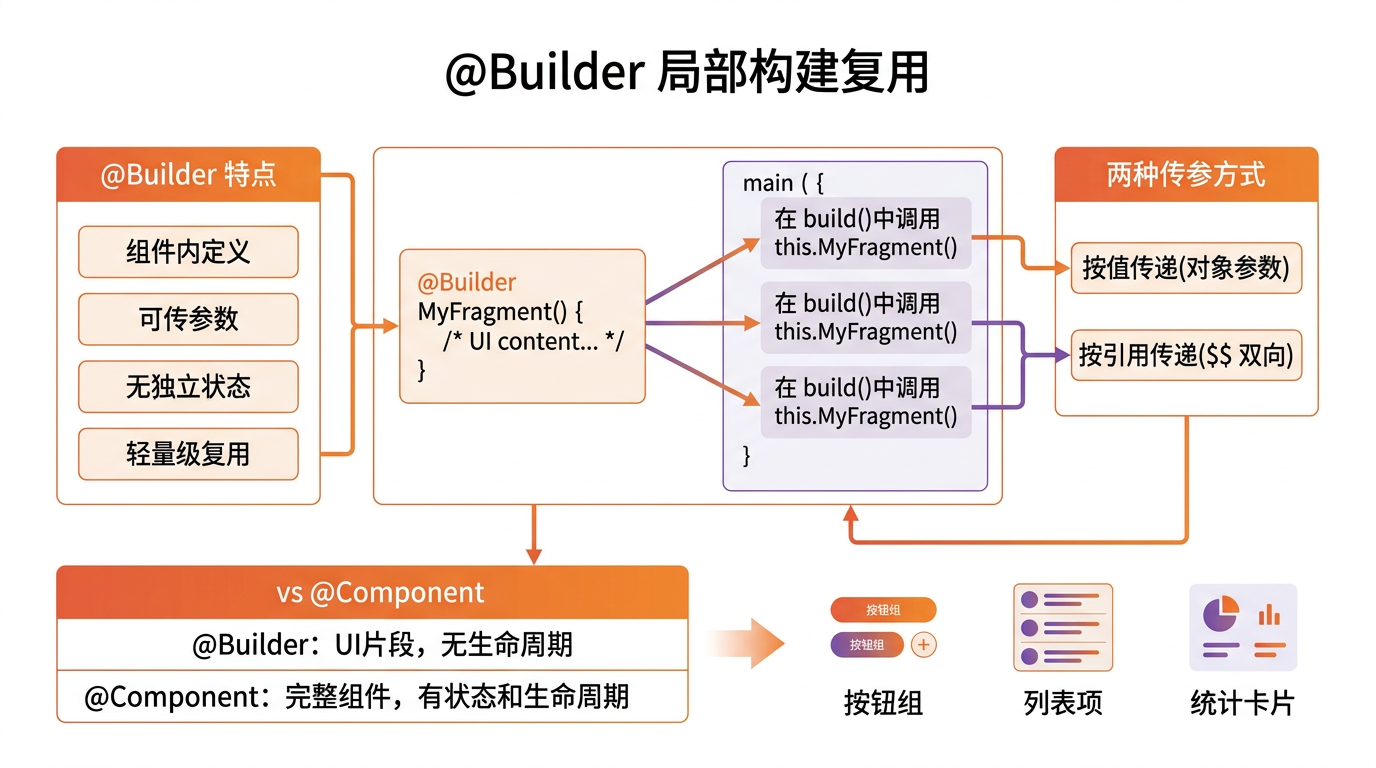

文章配图:@Builder 装饰器与自定义组件

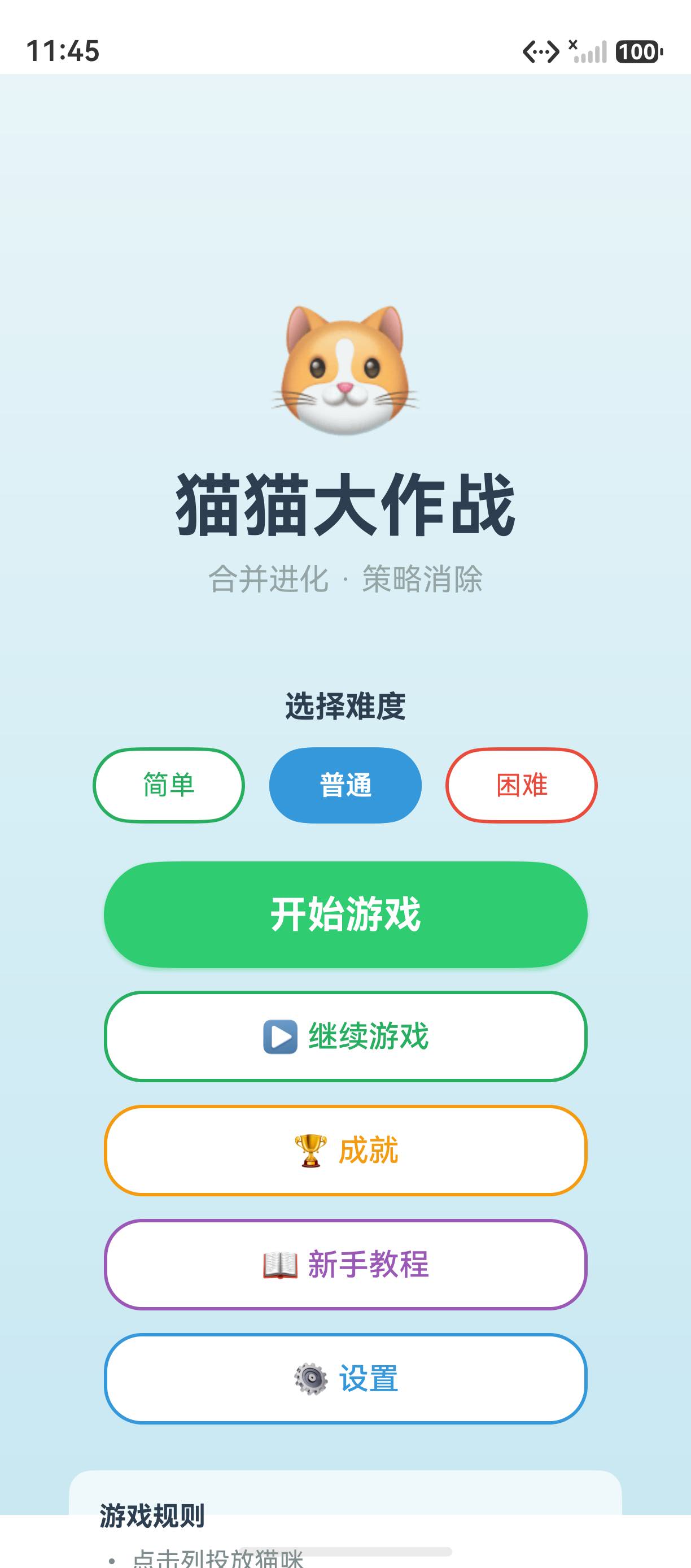

页面预览

前言

@Builder 是 ArkUI 中用于自定义 UI 构建函数的装饰器。在「猫猫大作战」中,@Builder 用于封装按钮样式、游戏面板、猫咪卡片等可复用的 UI 片段。

一、@Builder 基础

@Builder
MainMenuButton(text: string, onClick: () => void) {
  Button(text)
    .width('80%').height(48)
    .fontSize(17).fontWeight(FontWeight.Bold)
    .fontColor('#FFFFFF')
    .backgroundColor('#2ECC71')
    .borderRadius(24)
    .onClick(() => onClick())
}

// 使用
Column() {
  MainMenuButton('开始游戏', () => this.startGame())
  MainMenuButton('游戏设置', () => this.openSettings())
  MainMenuButton('排行榜', () => this.showRank())
}

二、@Builder 参数

@Builder
ScoreDisplay(score: number, label: string, color: string) {
  Column() {
    Text(label).fontSize(12).fontColor('#95A5A6')
    Text(`${score}`)
      .fontSize(28).fontWeight(FontWeight.Bold)
      .fontColor(color)
  }
  .alignItems(HorizontalAlign.Center)
}

三、@Builder vs @Component

特性 @Builder @Component
定义 函数 struct
状态管理 无独立状态 有 @State
复用性 适合小片段 适合大组件
传参 函数参数 @Prop/@Link

四、游戏中的应用

// 游戏 HUD 组件化
@Builder
GameHUD(score: number, combo: number, time: number) {
  Row() {
    ScoreDisplay(score, '得分', '#E74C3C')
    ScoreDisplay(combo, '连击', '#F39C12')
    ScoreDisplay(time, '时间', '#95A5A6')
  }
  .width('100%')
  .padding(16)
  .justifyContent(FlexAlign.SpaceEvenly)
}

五、最佳实践

  1. 参数化:将颜色、大小等可变的属性作为参数传入
  2. 单一职责:每个 @Builder 只封装一个 UI 功能
  3. 与 @Component 配合:小片段用 @Builder,大模块用 @Component

总结

@Builder 装饰自定义 UI 函数,参数化复用布局片段。核心要点:可传参的 UI 函数、 适合按钮/面板等小片段、 与 @Component 配合使用
