HarmonyOS互动卡片开发实战：运动卡片与音乐卡片Canvas绘制

摘要：本文深入讲解HarmonyOS互动卡片中Canvas自绘制的高级应用，涵盖运动卡片的卡路里计数动画、帧动画切换，以及音乐卡片的音频控制、专辑封面旋转和出框取碟特效。

前言

在HarmonyOS互动卡片官方示例中，运动卡片和音乐卡片代表了两种技术路线：运动卡片以帧动画为主，配合Canvas绘制实现卡路里动态计数；音乐卡片以Canvas自绘制为核心，通过2D绘图API实现封面旋转、音频波形可视化等高级效果。

本文将这两个场景合并讲解，帮助你掌握：

  1. Canvas组件在互动卡片中的使用方式与限制
  2. 运动卡片完整交互：开始运动、结束运动、卡路里燃烧可视化
  3. 音乐卡片播控交互：播放/暂停、切歌、封面动画、出框取碟
  4. 跨进程数据同步：应用与互动卡片间的状态持久化方案
  5. 帧动画与Canvas绘制的混合使用技巧

适用版本：DevEco Studio 6.1.0 Release及以上，HarmonyOS SDK 6.1+，Canvas能力需API 12+

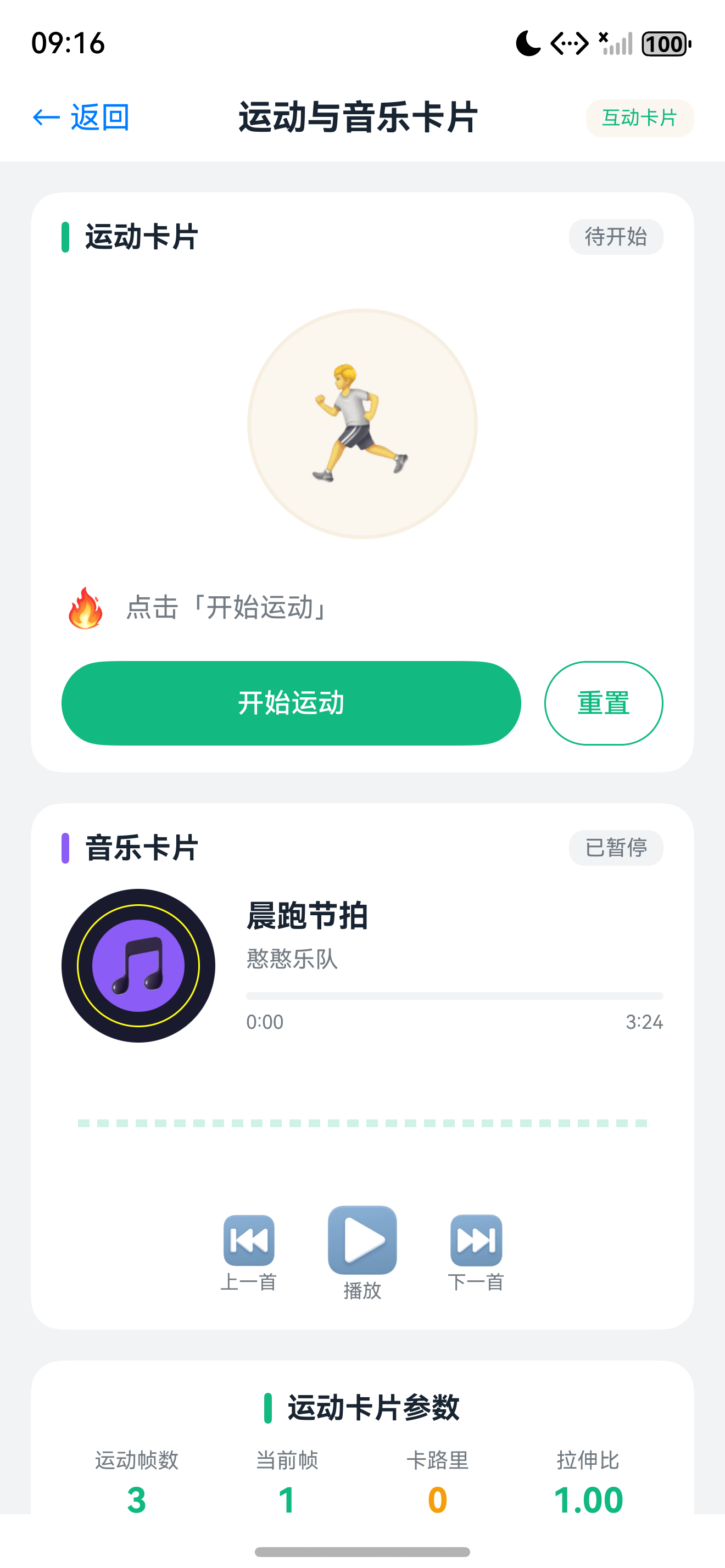

在这里插入图片描述

一、Canvas自绘制能力与运动卡片

1.1 互动卡片中的Canvas支持

HarmonyOS互动卡片支持使用Canvas组件进行2D自绘制：

能力 说明 适用场景
2D图形绘制 路径、矩形、圆形、文本 图表、进度条、波形
图片绘制 drawImage绘制图片资源 封面旋转、图片变换
变换操作 平移、旋转、缩放 动画效果、透视变换
渐变填充 线性渐变、径向渐变 背景、进度条美化
离屏渲染 OffscreenCanvas 复杂场景预渲染
场景 推荐方案 原因
角色动作变化 帧动画 人物姿态复杂，逐帧控制更精准
数字/图表变化 Canvas绘制 动态数据驱动，无需预生成图片
几何变换 Canvas绘制 旋转、缩放可通过transform实现
简单位移 帧动画或属性动画 实现简单，性能好

提示：互动卡片中的Canvas为轻量级实现，不支持WebGL和XComponent。复杂3D效果建议使用帧动画替代。

1.2 运动卡片交互场景设计

运动卡片包含两个核心交互场景：

  1. 开始运动：点击"开始运动"按钮，触发憨憨拉伸运动帧动画
  2. 结束运动：点击"结束运动"按钮，触发庆祝动画，Canvas绘制卡路里计数从0增长到300kcal
阶段 触发方式 视觉效果 数据变化
初始态 - 显示当前卡路里和状态 0 kcal，待开始
开始运动 点击开始按钮 憨憨拉伸帧动画 状态变为"运动中"
结束运动 点击结束按钮 庆祝动画+数字增长 0 -> 300 kcal
重置 点击重置按钮 回到初始态 清零

1.3 动态卡片UI

// entry/src/main/ets/widget/pages/SportsCard.ets
import { ActionUtils } from '../../utils/ActionUtils';
import { LiveCardScale } from '../../constants/LiveCardConstants';

const LIVE_CARD_DURATION: number = 6000;

@Entry
@Component
struct SportsCard {
  @LocalStorageProp('calories') calories: number = 0;
  @LocalStorageProp('isExercising') isExercising: boolean = false;

  build() {
    RelativeContainer() {
      Image($rawfile('sports/background.png'))
        .width('100%').height('100%').aspectRatio(1).id('sports_bg');

      Image(this.isExercising ? $rawfile('sports/exercising.png') : $rawfile('sports/idle.png'))
        .width('50%').height('50%').id('hanhan')
        .alignRules({ center: { anchor: '__container__', align: Alignment.Center } });

      Column() {
        Text(`${this.calories}`).fontSize(28).fontColor('#FF6B35').fontWeight(FontWeight.Bold);
        Text('kcal').fontSize(12).fontColor('#999999');
      }
      .id('calories_display')
      .alignRules({ top: { anchor: '__container__', align: VerticalAlign.Top },
                    right: { anchor: '__container__', align: HorizontalAlign.End } })
      .margin({ top: 16, right: 16 });

      Row() {
        Button(this.isExercising ? '结束运动' : '开始运动')
          .fontSize(12).width(80).height(32)
          .backgroundColor(this.isExercising ? '#EF4444' : '#10B981').fontColor('#FFFFFF')
          .onClick(() => {
            if (this.isExercising) {
              ActionUtils.requestOverFlow(this, LiveCardScale.SPORTS_WIDTH,
                                         LiveCardScale.SPORTS_HEIGHT, LIVE_CARD_DURATION);
            } else {
              ActionUtils.callAppMethod(this, 'startExercise', {});
            }
          });
      }
      .width('100%').height(40).justifyContent(FlexAlign.Center)
      .id('button_area')
      .alignRules({ bottom: { anchor: '__container__', align: VerticalAlign.Bottom } })
      .margin({ bottom: 8 });
    }
    .width('100%').height('100%');
  }
}

1.4 运动卡片LiveForm页面

// entry/src/main/ets/livecardability/pages/SportsLiveCard.ets
import { formProvider, formInfo } from '@kit.FormKit';

@Entry({ useSharedStorage: true })
@Component
struct SportsLiveCard {
  @LocalStorageProp('formRect') rect?: formInfo.Rect;
  @LocalStorageProp('borderRadius') radius: number = 0;
  @LocalStorageProp('formId') formId: string = '';

  @State currentFrameIndex: number = 0;
  @State currentCalories: number = 0;
  @State targetCalories: number = 300;
  @State countProgress: number = 0;

  private celebrateFrames: Resource[] = [
    $rawfile('sports/celebrate_01.png'), $rawfile('sports/celebrate_02.png'),
    $rawfile('sports/celebrate_03.png'), $rawfile('sports/celebrate_04.png'),
    $rawfile('sports/celebrate_05.png')
  ];
  private frameTimer: number = -1;
  private countTimer: number = -1;
  private canvasContext: CanvasRenderingContext2D | null = null;

  aboutToAppear(): void { this.startCelebrateAnimation(); this.startCalorieCounting(); }
  aboutToDisappear(): void { this.clearTimers(); }

  build() {
    Stack({ alignContent: Alignment.TopStart }) {
      Image($rawfile('sports/background.png'))
        .borderRadius(this.radius)
        .width(this.rect?.width || 0).height(this.rect?.height || 0)
        .margin({ top: this.rect?.top, left: this.rect?.left }).id('live_bg');

      Stack() {
        Image(this.celebrateFrames[this.currentFrameIndex])
          .width('100%').height('100%').objectFit(ImageFit.Contain);
      }
      .width('60%').height('60%')
      .margin({ top: (this.rect?.top || 0) + 30,
                left: (this.rect?.left || 0) + ((this.rect?.width || 0) * 0.2) }).id('celebrate_layer');

      Canvas(this.onCanvasReady)
        .width((this.rect?.width || 0) * 1.4).height(120)
        .margin({ top: (this.rect?.top || 0) + ((this.rect?.height || 0) * 0.65),
                  left: (this.rect?.left || 0) - ((this.rect?.width || 0) * 0.2) }).id('canvas_layer');

      Text('运动完成！').fontSize(18).fontColor('#FFFFFF').fontWeight(FontWeight.Bold)
        .margin({ top: (this.rect?.top || 0) + 20, left: (this.rect?.left || 0) + 20 }).id('hint_text');

      Button('太棒了').fontSize(12).width(80).height(32).backgroundColor('#10B981').fontColor('#FFFFFF')
        .margin({ top: (this.rect?.top || 0) + (this.rect?.height || 0) + 20,
                  left: (this.rect?.left || 0) + ((this.rect?.width || 0) * 0.5) - 40 })
        .onClick(() => this.finishAndClose()).id('finish_btn');
    }
    .width('100%').height('100%').id('live_container');
  }

  onCanvasReady(context: CanvasRenderingContext2D) {
    this.canvasContext = context;
    this.drawCalories();
  }

  private drawCalories(): void {
    if (!this.canvasContext) return;
    let ctx = this.canvasContext;
    let w = (this.rect?.width || 360) * 1.4;
    let h = 120;
    let cx = w / 2, cy = h / 2;
    ctx.clearRect(0, 0, w, h);

    ctx.beginPath();
    ctx.arc(cx, cy, 45, 0, 2 * Math.PI);
    ctx.strokeStyle = 'rgba(255,255,255,0.2)'; ctx.lineWidth = 8; ctx.stroke();

    let angle = (this.countProgress / this.targetCalories) * 2 * Math.PI - Math.PI / 2;
    ctx.beginPath();
    ctx.arc(cx, cy, 45, -Math.PI / 2, angle);
    ctx.strokeStyle = '#FF6B35'; ctx.lineWidth = 8; ctx.lineCap = 'round'; ctx.stroke();

    ctx.font = 'bold 36px sans-serif'; ctx.fillStyle = '#FFFFFF';
    ctx.textAlign = 'center'; ctx.textBaseline = 'middle';
    ctx.fillText(`${Math.floor(this.currentCalories)}`, cx, cy - 5);
    ctx.font = '14px sans-serif'; ctx.fillStyle = '#CCCCCC';
    ctx.fillText('kcal', cx, cy + 20);

    this.drawParticles(ctx, cx, cy);
  }

  private drawParticles(ctx: CanvasRenderingContext2D, cx: number, cy: number): void {
    let count = 12;
    let progress = this.countProgress / this.targetCalories;
    for (let i = 0; i < count; i++) {
      let angle = (i / count) * 2 * Math.PI;
      let dist = 60 + progress * 40;
      ctx.beginPath();
      ctx.arc(cx + Math.cos(angle) * dist, cy + Math.sin(angle) * dist, 3 + Math.random() * 4, 0, 2 * Math.PI);
      ctx.fillStyle = `hsl(${i * 30}, 70%, 60%)`; ctx.fill();
    }
  }

  private startCelebrateAnimation(): void {
    this.frameTimer = setInterval(() => {
      this.currentFrameIndex = (this.currentFrameIndex + 1) % this.celebrateFrames.length;
    }, 200);
  }

  private startCalorieCounting(): void {
    let duration = 2000, steps = 60, stepValue = this.targetCalories / steps;
    let interval = duration / steps, currentStep = 0;
    this.countTimer = setInterval(() => {
      currentStep++;
      this.currentCalories = Math.min(stepValue * currentStep, this.targetCalories);
      this.countProgress = this.currentCalories;
      this.drawCalories();
      if (currentStep >= steps) { clearInterval(this.countTimer); this.countTimer = -1; }
    }, interval);
  }

  private clearTimers(): void {
    if (this.frameTimer !== -1) { clearInterval(this.frameTimer); this.frameTimer = -1; }
    if (this.countTimer !== -1) { clearInterval(this.countTimer); this.countTimer = -1; }
  }

  private finishAndClose(): void {
    let data = { 'calories': this.targetCalories, 'isExercising': false, 'exerciseTime': '30:00' };
    formProvider.updateForm(this.formId, formBindingData.createFormBindingData(data)).catch(() => {});
    formProvider.cancelOverflow(this.formId).catch(() => {});
  }
}

二、音乐卡片：音频控制与封面动画

2.1 交互场景与数据持久化

音乐卡片核心功能：

  1. 播放控制：播放/暂停，憨憨随之跳舞或静止
  2. 封面旋转：播放时封面持续旋转，暂停时停止
  3. 切歌交互：憨憨出框取回新专辑封面替换
  4. 收藏功能：点击收藏按钮切换状态

采用RDB存储歌曲列表，文件存储保存播放状态：

interface MusicDataStore {
  songList: Song[];
  currentSong: Song;
  isPlaying: boolean;
  triggerAction: 'play' | 'pause' | 'next' | 'prev';
}

interface Song {
  id: string; title: string; artist: string;
  cover: string; duration: number; isFavorite: boolean;
}

2.2 动态卡片UI

// entry/src/main/ets/widget/pages/MusicCard.ets
import { ActionUtils } from '../../utils/ActionUtils';
import { LiveCardScale } from '../../constants/LiveCardConstants';

const LIVE_CARD_DURATION: number = 7000;

@Entry
@Component
struct MusicCard {
  @LocalStorageProp('currentSong') currentSong: Song = {
    id: '1', title: '鸿蒙之歌', artist: 'HarmonyOS Band',
    cover: 'music/cover_01.png', duration: 240, isFavorite: false
  };
  @LocalStorageProp('isPlaying') isPlaying: boolean = false;

  build() {
    RelativeContainer() {
      Image($rawfile('music/background.png'))
        .width('100%').height('100%').aspectRatio(1).id('music_bg');

      Image($rawfile(this.currentSong.cover))
        .width(80).height(80).borderRadius(40)
        .rotate({ angle: this.isPlaying ? 360 : 0 })
        .animation({ duration: 3000, iterations: -1, curve: Curve.Linear })
        .id('album_cover')
        .alignRules({ center: { anchor: '__container__', align: Alignment.Center } });

      Column() {
        Text(this.currentSong.title).fontSize(14).fontColor('#FFFFFF').fontWeight(FontWeight.Bold).maxLines(1);
        Text(this.currentSong.artist).fontSize(12).fontColor('#CCFFFFFF').margin({ top: 2 });
      }
      .width('80%').alignItems(HorizontalAlign.Center)
      .id('song_info')
      .alignRules({ bottom: { anchor: '__container__', align: VerticalAlign.Bottom },
                    middle: { anchor: '__container__', align: HorizontalAlign.Center } })
      .margin({ bottom: 50 });

      Row() {
        Image($rawfile('music/icon_prev.png')).width(24).height(24)
          .onClick(() => { ActionUtils.callAppMethod(this, 'musicControl', { action: 'prev' }); });

        Image(this.isPlaying ? $rawfile('music/icon_pause.png') : $rawfile('music/icon_play.png'))
          .width(32).height(32).margin({ left: 16, right: 16 })
          .onClick(() => { ActionUtils.callAppMethod(this, 'musicControl',
            { action: this.isPlaying ? 'pause' : 'play' }); });

        Image($rawfile('music/icon_next.png')).width(24).height(24)
          .onClick(() => { ActionUtils.callAppMethod(this, 'musicControl', { action: 'next' }); });
      }
      .width('100%').height(40).justifyContent(FlexAlign.Center)
      .id('control_area')
      .alignRules({ bottom: { anchor: '__container__', align: VerticalAlign.Bottom } })
      .margin({ bottom: 8 });

      Image(this.currentSong.isFavorite ? $rawfile('music/icon_favorited.png') : $rawfile('music/icon_favorite.png'))
        .width(20).height(20).margin({ top: 12, right: 12 })
        .id('favorite_btn')
        .alignRules({ top: { anchor: '__container__', align: VerticalAlign.Top },
                      right: { anchor: '__container__', align: HorizontalAlign.End } })
        .onClick(() => { ActionUtils.callAppMethod(this, 'toggleFavorite', { songId: this.currentSong.id }); });
    }
    .width('100%').height('100%')
    .onClick(() => {
      ActionUtils.requestOverFlow(this, LiveCardScale.MUSIC_WIDTH, LiveCardScale.MUSIC_HEIGHT, LIVE_CARD_DURATION);
    });
  }
}

2.3 LiveForm页面与波形绘制

// entry/src/main/ets/livecardability/pages/MusicLiveCard.ets
import { formProvider, formInfo } from '@kit.FormKit';
import { fileIo } from '@kit.CoreFileKit';

@Entry({ useSharedStorage: true })
@Component
struct MusicLiveCard {
  @LocalStorageProp('formRect') rect?: formInfo.Rect;
  @LocalStorageProp('formId') formId: string = '';

  @State isPlaying: boolean = false;
  @State coverRotation: number = 0;
  @State hanhanFrameIndex: number = 0;
  @State hanhanY: number = 0;
  @State hanhanX: number = 0;
  @State hanhanOpacity: number = 1;
  @State currentCover: Resource = $rawfile('music/cover_01.png');
  @State coverScale: number = 1.0;

  private danceFrames: Resource[] = [
    $rawfile('music/dance_01.png'), $rawfile('music/dance_02.png'),
    $rawfile('music/dance_03.png'), $rawfile('music/dance_04.png')
  ];
  private danceTimer: number = -1;
  private rotationTimer: number = -1;
  private canvasContext: CanvasRenderingContext2D | null = null;

  aboutToAppear(): void { this.readTriggerContext(); this.startAnimations(); }
  aboutToDisappear(): void { this.stopAnimations(); }

  build() {
    Stack({ alignContent: Alignment.TopStart }) {
      Image($rawfile('music/background.png'))
        .width(this.rect?.width || 0).height(this.rect?.height || 0)
        .margin({ top: this.rect?.top, left: this.rect?.left });

      Canvas(this.onWaveCanvasReady)
        .width(this.rect?.width || 0).height(60)
        .margin({ top: (this.rect?.top || 0) + ((this.rect?.height || 0) * 0.35),
                  left: this.rect?.left || 0 });

      Stack() {
        Image(this.currentCover)
          .width('100%').height('100%').objectFit(ImageFit.Cover).borderRadius(50)
          .scale({ x: this.coverScale, y: this.coverScale })
          .rotate({ angle: this.coverRotation });
      }
      .width(100).height(100)
      .margin({ top: (this.rect?.top || 0) + ((this.rect?.height || 0) * 0.15),
                left: (this.rect?.left || 0) + ((this.rect?.width || 0) * 0.5) - 50 });

      Stack() {
        Image(this.danceFrames[this.hanhanFrameIndex])
          .width('100%').height('100%').objectFit(ImageFit.Contain)
          .opacity(this.hanhanOpacity)
          .translate({ x: this.hanhanX, y: this.hanhanY });
      }
      .width(80).height(80)
      .margin({ top: (this.rect?.top || 0) + ((this.rect?.height || 0) * 0.55),
                left: (this.rect?.left || 0) + ((this.rect?.width || 0) * 0.5) - 40 });

      Row() {
        Button('暂停').fontSize(11).width(56).height(28)
          .backgroundColor(this.isPlaying ? '#EF4444' : '#10B981').fontColor('#FFFFFF')
          .onClick(() => this.togglePlay());
        Button('切歌').fontSize(11).width(56).height(28)
          .backgroundColor('#3B82F6').fontColor('#FFFFFF').margin({ left: 8 })
          .onClick(() => this.switchSong());
      }
      .margin({ top: (this.rect?.top || 0) + (this.rect?.height || 0) + 10,
                left: (this.rect?.left || 0) + ((this.rect?.width || 0) * 0.5) - 60 });
    }
    .width('100%').height('100%');
  }

  onWaveCanvasReady(context: CanvasRenderingContext2D) {
    this.canvasContext = context;
    if (this.isPlaying) this.startWaveAnimation();
  }

  private startWaveAnimation(): void {
    let offset = 0;
    let animateWave = () => {
      if (!this.isPlaying || !this.canvasContext) return;
      let ctx = this.canvasContext;
      let w = this.rect?.width || 360, h = 60;
      ctx.clearRect(0, 0, w, h);
      ctx.beginPath(); ctx.moveTo(0, h / 2);
      for (let x = 0; x < w; x += 3) {
        let y = h / 2 + Math.sin(x * 0.02 + offset) * 20 + Math.sin(x * 0.04 + offset * 1.5) * 10;
        ctx.lineTo(x, y);
      }
      ctx.strokeStyle = 'rgba(59, 130, 246, 0.8)'; ctx.lineWidth = 2; ctx.stroke();
      ctx.lineTo(w, h); ctx.lineTo(0, h); ctx.closePath();
      ctx.fillStyle = 'rgba(59, 130, 246, 0.2)'; ctx.fill();
      offset += 0.15;
      requestAnimationFrame(animateWave);
    };
    requestAnimationFrame(animateWave);
  }

  private startAnimations(): void {
    this.danceTimer = setInterval(() => {
      if (this.isPlaying) this.hanhanFrameIndex = (this.hanhanFrameIndex + 1) % this.danceFrames.length;
    }, 250);
    this.rotationTimer = setInterval(() => {
      if (this.isPlaying) this.coverRotation = (this.coverRotation + 2) % 360;
    }, 30);
  }

  private stopAnimations(): void {
    if (this.danceTimer !== -1) { clearInterval(this.danceTimer); this.danceTimer = -1; }
    if (this.rotationTimer !== -1) { clearInterval(this.rotationTimer); this.rotationTimer = -1; }
  }

  private togglePlay(): void {
    this.isPlaying = !this.isPlaying;
    if (this.isPlaying) this.startWaveAnimation();
  }

  private switchSong(): void {
    this.animateHanhanOut(() => {
      this.currentCover = $rawfile('music/cover_02.png');
      this.coverScale = 0.8;
      let scaleUp = setInterval(() => {
        this.coverScale += 0.02;
        if (this.coverScale >= 1.0) { this.coverScale = 1.0; clearInterval(scaleUp); }
      }, 30);
      this.animateHanhanBack();
    });
  }

  private animateHanhanOut(onComplete: () => void): void {
    let progress = 0;
    let animate = () => {
      progress += 0.03;
      if (progress >= 1) { this.hanhanOpacity = 0; onComplete(); return; }
      this.hanhanY = -progress * 150; this.hanhanX = progress * 50; this.hanhanOpacity = 1 - progress;
      requestAnimationFrame(animate);
    };
    requestAnimationFrame(animate);
  }

  private animateHanhanBack(): void {
    let progress = 0;
    this.hanhanOpacity = 0; this.hanhanY = -150; this.hanhanX = 50;
    let animate = () => {
      progress += 0.03;
      if (progress >= 1) { this.hanhanY = 0; this.hanhanX = 0; this.hanhanOpacity = 1; return; }
      this.hanhanY = -150 * (1 - progress); this.hanhanX = 50 * (1 - progress); this.hanhanOpacity = progress;
      requestAnimationFrame(animate);
    };
    requestAnimationFrame(animate);
  }

  private async readTriggerContext(): Promise<void> {
    try {
      let context = getContext(this);
      let filePath = context.filesDir + '/music_trigger.json';
      if (fileIo.access(filePath)) {
        this.isPlaying = JSON.parse(fileIo.readTextSync(filePath))['isPlaying'] as boolean || false;
      }
    } catch (error) { console.error('Read trigger context failed'); }
  }
}

三、应用端音频控制与性能优化

3.1 应用端Callee机制

应用端通过callee机制暴露音乐控制方法：

// entry/src/main/ets/entryability/EntryAbility.ets
import { UIAbility, Caller } from '@kit.AbilityKit';

export default class EntryAbility extends UIAbility {
  private caller: Caller | undefined;

  onForeground(): void {
    this.callee = this.callee || this.calleeObject;
    if (this.callee) {
      this.callee.on('musicControl', this.handleMusicControl.bind(this));
      this.callee.on('toggleFavorite', this.handleToggleFavorite.bind(this));
    }
  }

  onBackground(): void {
    if (this.callee) {
      this.callee.off('musicControl');
      this.callee.off('toggleFavorite');
    }
  }

  private handleMusicControl(data: rpc.MessageSequence): rpc.MessageSequence {
    let params = JSON.parse(data.readString());
    switch (params['action']) {
      case 'play': this.playMusic(); break;
      case 'pause': this.pauseMusic(); break;
      case 'next': this.nextSong(); break;
      case 'prev': this.prevSong(); break;
    }
    this.syncMusicStateToCards();
    let response = rpc.MessageSequence.create();
    response.writeString(JSON.stringify({ success: true }));
    return response;
  }

  private async syncMusicStateToCards(): Promise<void> {
    let formData = { 'currentSong': this.getCurrentSong(), 'isPlaying': this.isPlaying };
    let formIds = await this.getAllFormIds();
    for (let formId of formIds) {
      await formProvider.updateForm(formId, formBindingData.createFormBindingData(formData));
    }
  }

  private playMusic(): void { this.isPlaying = true; }
  private pauseMusic(): void { this.isPlaying = false; }
  private nextSong(): void { }
  private prevSong(): void { }
  private getCurrentSong(): Song { return { id: '1', title: '鸿蒙之歌', artist: 'HarmonyOS Band', cover: 'music/cover_01.png', duration: 240, isFavorite: false }; }
  private async getAllFormIds(): Promise<string[]> { return []; }
}

3.2 离屏Canvas预渲染

import { OffscreenCanvas } from '@kit.ArkUI';

let offscreen = new OffscreenCanvas(200, 200);
let offCtx = offscreen.getContext('2d');

function preDrawAlbumCover(): ImageBitmap {
  offCtx.beginPath(); offCtx.arc(100, 100, 95, 0, 2 * Math.PI);
  offCtx.fillStyle = '#1a1a1a'; offCtx.fill();
  for (let i = 0; i < 20; i++) {
    offCtx.beginPath(); offCtx.arc(100, 100, 30 + i * 3, 0, 2 * Math.PI);
    offCtx.strokeStyle = `rgba(255,255,255,${0.1 + i * 0.02})`; offCtx.lineWidth = 1; offCtx.stroke();
  }
  return offscreen.transferToImageBitmap();
}

3.3 性能优化策略与数据同步

优化策略 实现方式 效果
减少重绘区域 使用clearRect精确清除 降低GPU负载
避免状态频繁切换 批量设置样式属性 减少状态切换开销
使用requestAnimationFrame 替代setInterval 与屏幕刷新同步
离屏预渲染 OffscreenCanvas 减少每帧计算量
降低分辨率 Canvas缩小后放大显示 减少像素计算量

数据同步涉及三个角色：应用（EntryAbility）、动态卡片（FormExtensionAbility）、互动卡片（LiveFormExtensionAbility）。

应用与互动卡片通过文件存储传递触发上下文：

// 应用端写入
async function writeTriggerContext(action: string, songId: string): Promise<void> {
  let context = getContext();
  let filePath = context.filesDir + '/music_trigger.json';
  let triggerData = { action: action, songId: songId, timestamp: Date.now(), isPlaying: true };
  fileIo.writeTextSync(filePath, JSON.stringify(triggerData));
}

// 互动卡片读取
async function readTriggerContext(): Promise<Record<string, Object> | null> {
  let context = getContext();
  let filePath = context.filesDir + '/music_trigger.json';
  if (!fileIo.access(filePath)) return null;
  return JSON.parse(fileIo.readTextSync(filePath));
}

四、常见问题

4.1 Canvas动画卡顿

解决方案：

  1. 使用requestAnimationFrame而非setInterval
  2. 减少每帧绘制元素数量，粒子数控制在50个以内
  3. 避免在绘制循环中创建新对象
  4. 使用OffscreenCanvas预渲染静态元素

4.2 封面旋转不平滑

Image(this.currentCover)
  .rotate({ angle: this.coverRotation, centerX: '50%', centerY: '50%' })
  .animation({ duration: 3000, iterations: -1, curve: Curve.Linear });

4.3 切歌动画不同步

解决方案：

  1. 使用Promise或回调确保动画顺序执行
  2. 在出框动画onComplete回调中切换封面
  3. 增加适当延迟，确保视觉节奏自然

提示：Canvas自绘制性能优化核心：控制绘制频率、减少每帧计算、复用绘制上下文、及时释放资源。

总结

本文深入讲解了HarmonyOS互动卡片中运动卡片和音乐卡片的Canvas绘制技术：

  1. 运动卡片：通过帧动画实现憨憨庆祝动作，通过Canvas 2D API实现卡路里计数和进度环绘制
  2. 音乐卡片：通过Canvas绘制音频波形，通过rotate动画实现封面旋转，通过出框取碟动画实现切歌交互
  3. 性能优化：使用requestAnimationFrame驱动动画，离屏Canvas预渲染，控制绘制元素数量
  4. 数据同步：应用与互动卡片通过文件存储传递触发上下文，通过formProvider.updateForm同步到动态卡片

Canvas自绘制能力为互动卡片带来了无限的视觉表现可能。

如果本文对你有帮助，欢迎点赞、收藏、转发！欢迎在评论区分享你的Canvas动画创意。

投票与互动

你更想深入学习哪个方向的互动卡片技术？

  • Canvas 2D高级绘图与粒子系统
  • 音频可视化与波形动画
  • 帧动画性能优化与资源管理
  • 跨进程数据同步与状态管理

相关资源

# harmonyos # 华为
Logo
HarmonyOS开发者社区

讨论HarmonyOS开发技术，专注于API与组件、DevEco Studio、测试、元服务和应用上架分发等。

更多推荐

cover

【中国方言题库｜15】HarmonyOS ArkTS 本地状态持久化实战：让保存、删除和页面返回后的数据即时一致

avatar HarmonyOS开发者社区
cover

四轮乘风街头为王：基于HarmonyOS ArkTS API 24的QQ滑板滑起来街头黑荧光橙红潮酷风与滑板闪电火焰粒子动画系统全记录

avatar HarmonyOS开发者社区
cover

【中国方言题库｜16】HarmonyOS ArkTS 多设备布局实战：适配手机、平板和 PC/2in1 的窗口变化

avatar HarmonyOS开发者社区
