HarmonyOS Core Vision Kit进阶：图像超分与多目标识别

摘要：本文聚焦HarmonyOS Core Vision Kit的进阶视觉能力，深入讲解图像超分辨率重建（Super-Resolution）、文本搜索图片（Text-Based Image Retrieval）以及多目标检测（Multi-Object Detection）三大核心功能。从模型原理到ArkTS代码实战，覆盖API调用、参数调优、结果可视化全流程，助力开发者构建专业级AI视觉应用。

---

---

前言

在上一篇基础教程中，我们掌握了HarmonyOS Core Vision Kit的人脸检测与骨骼点识别能力。本文将带领读者进入更高级的视觉AI领域，探索三个极具实用价值的进阶能力：图像超分辨率重建可以将模糊图片变得清晰锐利；文本搜索图片让自然语言成为检索图像的钥匙；多目标检测则赋予应用"看懂"复杂场景的能力。

这三大能力在电商、社交、安防、相册管理等场景中都有广泛应用。例如：

• 图像超分：老照片修复、缩略图高清化、视频画质增强
• 文本搜图：智能相册搜索、商品以文搜图、内容推荐系统
• 多目标检测：智能相册分类、安防监控分析、AR场景理解

提示：本文涉及的API在HarmonyOS API 10及以上版本中获得完整支持。如果你使用的是API 9版本，部分功能可能需要升级SDK。

---

一、图像超分辨率重建

1.1 超分技术原理

图像超分辨率重建（Image Super-Resolution, SR）是指从低分辨率（Low-Resolution, LR）图像恢复出高分辨率（High-Resolution, HR）图像的过程。这是一类经典的病态逆问题，因为从低分辨率到高分辨率的映射存在无穷多解。

Core Vision Kit采用的超分模型基于生成对抗网络（GAN）架构，包含两个核心组件：

1. 生成器（Generator）：负责将LR图像映射为HR图像，通常采用残差网络或注意力机制增强细节
2. 判别器（Discriminator）：区分生成图像与真实HR图像，通过对抗训练提升生成质量

与传统的双线性插值、双三次插值等经典算法相比，基于深度学习的超分方法能够：

• 恢复更清晰的纹理细节
• 重建更锐利的边缘轮廓
• 生成更自然的视觉效果

1.2 超分API调用

工程依赖配置：

{
  "name": "super_resolution_demo",
  "version": "1.0.0",
  "description": "图像超分示例应用",
  "dependencies": {
    "@hms.ai.vision.core": "^1.0.0",
    "@hms.ai.vision.superresolution": "^1.0.0",
    "@hms.ai.vision.multidetect": "^1.0.0",
    "@hms.ai.vision.textimage": "^1.0.0"
  }
}

初始化超分引擎：

import { visionCore } from '@hms.ai.vision.core';
import { superResolution } from '@hms.ai.vision.superresolution';
import { image } from '@kit.ImageKit';

class SuperResolutionEngine {
  private engine: visionCore.VisionEngine | null = null;

  async initialize(): Promise<void> {
    this.engine = await visionCore.createEngine({
      apiKey: 'your_api_key_here',
      engineType: visionCore.EngineType.SUPER_RESOLUTION
    });
    console.info('超分引擎初始化完成');
  }

  getEngine(): visionCore.VisionEngine {
    if (!this.engine) {
      throw new Error('超分引擎未初始化');
    }
    return this.engine;
  }
}

执行图像超分：

interface SuperResolutionOptions {
  scaleFactor: 2 | 4;  // 支持2倍和4倍超分
  quality: 'standard' | 'high';  // 标准质量或高质量
}

interface SuperResolutionResult {
  outputPixelMap: image.PixelMap;
  processingTime: number;
  originalWidth: number;
  originalHeight: number;
  outputWidth: number;
  outputHeight: number;
}

async function performSuperResolution(
  engine: visionCore.VisionEngine,
  inputPixelMap: image.PixelMap,
  options: SuperResolutionOptions = { scaleFactor: 2, quality: 'high' }
): Promise<SuperResolutionResult> {
  const srOptions: superResolution.ProcessOptions = {
    scale: options.scaleFactor === 2
      ? superResolution.ScaleFactor.X2
      : superResolution.ScaleFactor.X4,
    qualityLevel: options.quality === 'high'
      ? superResolution.QualityLevel.HIGH
      : superResolution.QualityLevel.STANDARD
  };

  const startTime = Date.now();

  try {
    const result = await superResolution.process(engine, inputPixelMap, srOptions);
    const processingTime = Date.now() - startTime;

    const originalInfo = await inputPixelMap.getImageInfo();
    const outputInfo = await result.getImageInfo();

    return {
      outputPixelMap: result,
      processingTime,
      originalWidth: originalInfo.size.width,
      originalHeight: originalInfo.size.height,
      outputWidth: outputInfo.size.width,
      outputHeight: outputInfo.size.height
    };
  } catch (error) {
    console.error('图像超分处理失败:', error);
    throw error;
  }
}

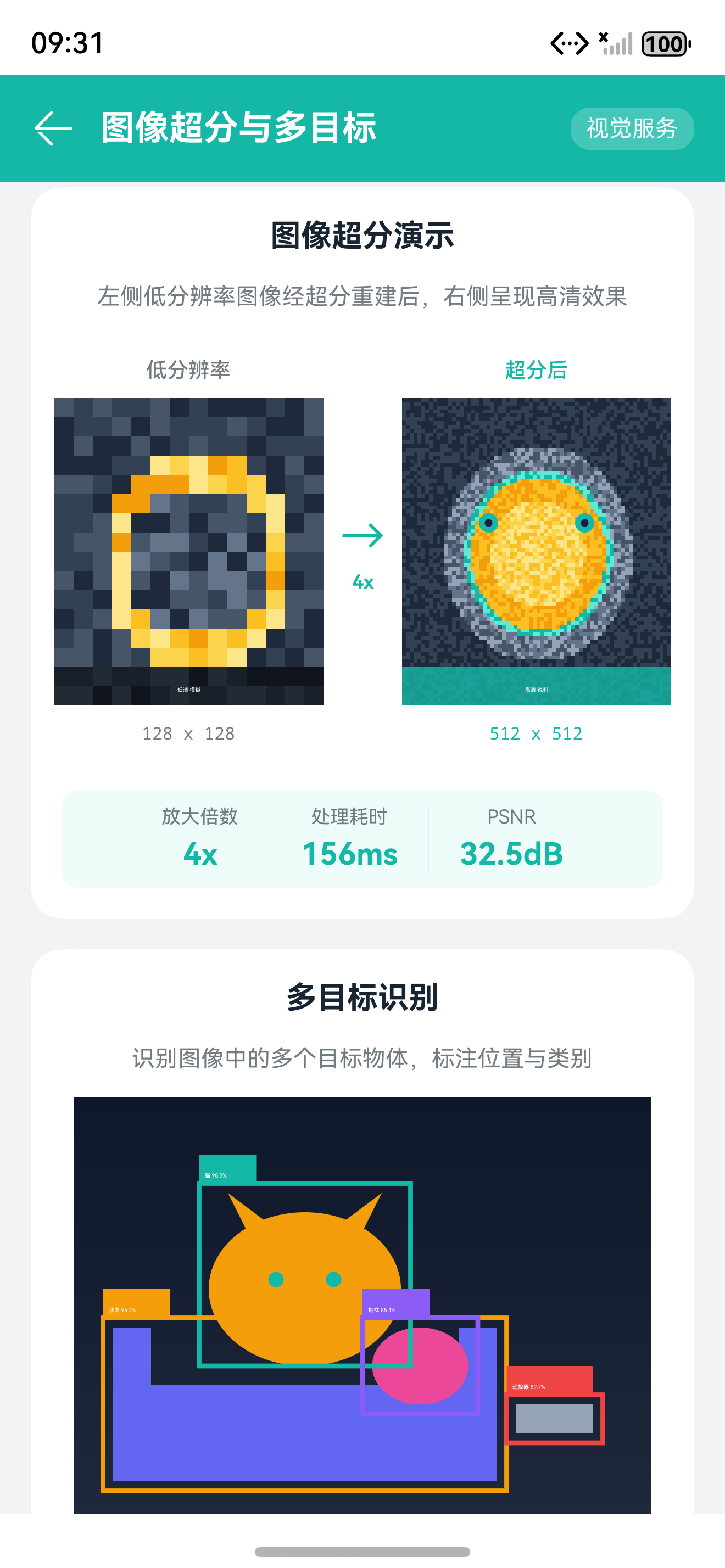

1.3 超分效果对比组件

为了让用户直观感受超分效果，我们可以构建一个对比展示组件：

@Component
struct SuperResolutionCompare {
  @State originalImage: PixelMap | null = null;
  @State enhancedImage: PixelMap | null = null;
  @State isProcessing: boolean = false;
  @State processTime: number = 0;
  @State showSlider: boolean = true;
  @State sliderPosition: number = 50;

  private engine: SuperResolutionEngine = new SuperResolutionEngine();

  async aboutToAppear() {
    await this.engine.initialize();
  }

  async handleImageSelect(uri: string): Promise<void> {
    this.isProcessing = true;

    try {
      const source = image.createImageSource(uri);
      this.originalImage = await source.createPixelMap({
        desiredSize: { width: 256, height: 256 }
      });

      const result = await performSuperResolution(
        this.engine.getEngine(),
        this.originalImage,
        { scaleFactor: 4, quality: 'high' }
      );

      this.enhancedImage = result.outputPixelMap;
      this.processTime = result.processingTime;
    } catch (error) {
      console.error('处理失败:', error);
    } finally {
      this.isProcessing = false;
    }
  }

  build() {
    Column() {
      Text('图像超分辨率重建')
        .fontSize(24)
        .fontWeight(FontWeight.Bold)
        .margin(16)

      if (this.isProcessing) {
        LoadingProgress()
          .width(48)
          .height(48)
        Text('AI正在增强图像细节...')
          .fontSize(14)
          .fontColor('#666666')
          .margin(8)
      } else if (this.originalImage && this.enhancedImage) {
        this.buildCompareView()
      } else {
        this.buildPlaceholder()
      }
    }
    .width('100%')
    .height('100%')
    .backgroundColor('#F5F5F5')
  }

  @Builder
  buildCompareView() {
    Column() {
      Stack() {
        // 原图（底层）
        Image(this.enhancedImage)
          .width('100%')
          .height(400)
          .objectFit(ImageFit.Cover)

        // 原图裁剪层（通过遮罩实现对比效果）
        Image(this.originalImage)
          .width('100%')
          .height(400)
          .objectFit(ImageFit.Cover)
          .clip(new Rect({
            width: `${this.sliderPosition}%`,
            height: '100%'
          }))

        // 滑动分割线
        Column()
          .width(2)
          .height(400)
          .backgroundColor('#FFFFFF')
          .position({ x: `${this.sliderPosition}%`, y: 0 })
      }
      .width('100%')
      .height(400)

      Slider({
        value: this.sliderPosition,
        min: 0,
        max: 100,
        step: 1
      })
      .width('90%')
      .margin(16)
      .onChange((value: number) => {
        this.sliderPosition = value;
      })

      Row() {
        Text('原始图像')
          .fontSize(12)
          .fontColor('#666666')
        Blank()
        Text(`超分图像 (${this.processTime}ms)`)
          .fontSize(12)
          .fontColor('#666666')
      }
      .width('90%')

      // 详细信息面板
      this.buildInfoPanel()
    }
  }

  @Builder
  buildInfoPanel() {
    Column() {
      Text('处理详情')
        .fontSize(16)
        .fontWeight(FontWeight.Bold)
        .margin({ top: 16, bottom: 8 })

      Grid() {
        GridItem() {
          InfoCard({ title: '原始尺寸', value: '256 x 256' })
        }
        GridItem() {
          InfoCard({ title: '输出尺寸', value: '1024 x 1024' })
        }
        GridItem() {
          InfoCard({ title: '放大倍数', value: '4x' })
        }
        GridItem() {
          InfoCard({ title: '处理耗时', value: `${this.processTime}ms` })
        }
      }
      .columnsTemplate('1fr 1fr')
      .rowsTemplate('1fr 1fr')
      .width('90%')
      .height(160)
      .gap(8)
    }
  }

  @Builder
  buildPlaceholder() {
    Column() {
      Image($r('app.media.placeholder'))
        .width(120)
        .height(120)
        .opacity(0.5)
      Text('点击选择图片进行超分处理')
        .fontSize(14)
        .fontColor('#999999')
        .margin(16)
    }
  }
}

@Component
struct InfoCard {
  @Prop title: string;
  @Prop value: string;

  build() {
    Column() {
      Text(this.title)
        .fontSize(12)
        .fontColor('#666666')
      Text(this.value)
        .fontSize(16)
        .fontWeight(FontWeight.Bold)
        .fontColor('#333333')
        .margin({ top: 4 })
    }
    .width('100%')
    .height('100%')
    .backgroundColor('#FFFFFF')
    .borderRadius(8)
    .justifyContent(FlexAlign.Center)
  }
}

---

二、文本搜索图片

2.1 跨模态检索原理

文本搜索图片（Text-Based Image Retrieval, TBIR）是跨模态检索（Cross-Modal Retrieval）的典型应用。其核心挑战在于：如何衡量文本描述与图像内容之间的语义相似度？

Core Vision Kit采用的解决方案是共享嵌入空间（Shared Embedding Space）：

1. 文本编码器：将自然语言描述编码为高维向量
2. 图像编码器：将图像内容编码为同维度向量
3. 相似度计算：在共享空间中通过余弦相似度度量文本与图像的匹配程度

这种架构的优势在于：

• 支持开放式词汇检索，不局限于预定义标签
• 能够理解复杂描述，如"夕阳下的海滩上有两个人在散步"
• 检索结果按语义相关性排序，而非简单标签匹配

2.2 文本搜图API集成

初始化文本搜图引擎：

import { textImageRetrieval } from '@hms.ai.vision.textimage';

class TextImageSearchEngine {
  private engine: visionCore.VisionEngine | null = null;
  private imageDatabase: Array<{
    id: string;
    uri: string;
    pixelMap: image.PixelMap;
    embedding: Float32Array;
  }> = [];

  async initialize(): Promise<void> {
    this.engine = await visionCore.createEngine({
      apiKey: 'your_api_key_here',
      engineType: visionCore.EngineType.TEXT_IMAGE_RETRIEVAL
    });
  }

  // 将图片添加到索引库
  async indexImage(id: string, uri: string): Promise<void> {
    const source = image.createImageSource(uri);
    const pixelMap = await source.createPixelMap({
      desiredSize: { width: 224, height: 224 }
    });

    const embedding = await textImageRetrieval.encodeImage(
      this.engine!,
      pixelMap
    );

    this.imageDatabase.push({ id, uri, pixelMap, embedding });
  }

  // 使用文本搜索图片
  async searchByText(query: string, topK: number = 5): Promise<Array<{
    id: string;
    uri: string;
    score: number;
  }>> {
    const textEmbedding = await textImageRetrieval.encodeText(
      this.engine!,
      query
    );

    const results = this.imageDatabase.map(item => ({
      id: item.id,
      uri: item.uri,
      score: this.cosineSimilarity(textEmbedding, item.embedding)
    }));

    return results
      .sort((a, b) => b.score - a.score)
      .slice(0, topK);
  }

  private cosineSimilarity(a: Float32Array, b: Float32Array): number {
    let dot = 0, normA = 0, normB = 0;
    for (let i = 0; i < a.length; i++) {
      dot += a[i] * b[i];
      normA += a[i] * a[i];
      normB += b[i] * b[i];
    }
    return dot / (Math.sqrt(normA) * Math.sqrt(normB));
  }
}

2.3 智能相册搜索页面

@Entry
@Component
struct SmartAlbumSearch {
  @State searchQuery: string = '';
  @State searchResults: Array<{ id: string; uri: string; score: number }> = [];
  @State isSearching: boolean = false;
  @State searchHistory: Array<string> = [
    '海边日落',
    '猫咪在沙发上',
    '春天的花朵',
    '夜景城市'
  ];

  private searchEngine: TextImageSearchEngine = new TextImageSearchEngine();

  async aboutToAppear() {
    await this.searchEngine.initialize();
    // 预加载示例图片到索引库
    await this.loadSampleImages();
  }

  async loadSampleImages(): Promise<void> {
    const sampleImages = [
      { id: '1', uri: 'assets/beach_sunset.jpg' },
      { id: '2', uri: 'assets/cat_sofa.jpg' },
      { id: '3', uri: 'assets/spring_flowers.jpg' },
      { id: '4', uri: 'assets/city_night.jpg' },
      { id: '5', uri: 'assets/mountain_lake.jpg' },
      { id: '6', uri: 'assets/food_dinner.jpg' }
    ];

    for (const img of sampleImages) {
      await this.searchEngine.indexImage(img.id, img.uri);
    }
  }

  async performSearch(): Promise<void> {
    if (!this.searchQuery.trim()) return;

    this.isSearching = true;
    this.searchResults = await this.searchEngine.searchByText(
      this.searchQuery,
      6
    );
    this.isSearching = false;

    // 添加到搜索历史
    if (!this.searchHistory.includes(this.searchQuery)) {
      this.searchHistory.unshift(this.searchQuery);
      if (this.searchHistory.length > 10) {
        this.searchHistory.pop();
      }
    }
  }

  build() {
    Column() {
      // 搜索栏
      Search({ placeholder: '输入描述搜索图片，如：海边日落' })
        .width('95%')
        .height(48)
        .margin(16)
        .backgroundColor('#FFFFFF')
        .borderRadius(24)
        .onSubmit((value: string) => {
          this.searchQuery = value;
          this.performSearch();
        })
        .onChange((value: string) => {
          this.searchQuery = value;
        })

      // 搜索历史
      if (this.searchResults.length === 0 && !this.isSearching) {
        this.buildSearchHistory()
      }

      // 搜索结果
      if (this.isSearching) {
        LoadingProgress()
          .width(36)
          .height(36)
          .margin(32)
      } else {
        this.buildResultGrid()
      }
    }
    .width('100%')
    .height('100%')
    .backgroundColor('#F5F5F5')
  }

  @Builder
  buildSearchHistory() {
    Column() {
      Text('搜索历史')
        .fontSize(16)
        .fontWeight(FontWeight.Bold)
        .width('95%')
        .margin({ top: 8, bottom: 12 })

      Flex({ wrap: FlexWrap.Wrap }) {
        ForEach(this.searchHistory, (item: string) => {
          Text(item)
            .fontSize(14)
            .fontColor('#666666')
            .backgroundColor('#FFFFFF')
            .padding({ left: 12, right: 12, top: 6, bottom: 6 })
            .borderRadius(16)
            .margin(4)
            .onClick(() => {
              this.searchQuery = item;
              this.performSearch();
            })
        })
      }
      .width('95%')

      Text('热门搜索')
        .fontSize(16)
        .fontWeight(FontWeight.Bold)
        .width('95%')
        .margin({ top: 24, bottom: 12 })

      Column() {
        ForEach([
          '红色跑车',
          '下雪的街道',
          '生日蛋糕',
          '小狗在草地上'
        ], (item: string, index: number) => {
          Row() {
            Text(`${index + 1}`)
              .fontSize(14)
              .fontColor(index < 3 ? '#FF6B35' : '#999999')
              .width(24)
            Text(item)
              .fontSize(14)
              .fontColor('#333333')
            Blank()
            Image($r('app.media.trending'))
              .width(16)
              .height(16)
          }
          .width('100%')
          .height(44)
          .onClick(() => {
            this.searchQuery = item;
            this.performSearch();
          })
        })
      }
      .width('95%')
      .backgroundColor('#FFFFFF')
      .borderRadius(12)
      .padding(12)
    }
  }

  @Builder
  buildResultGrid() {
    Grid() {
      ForEach(this.searchResults, (result) => {
        GridItem() {
          Stack() {
            Image(result.uri)
              .width('100%')
              .height(160)
              .objectFit(ImageFit.Cover)
              .borderRadius(8)

            Column() {
              Text(`匹配度: ${(result.score * 100).toFixed(1)}%`)
                .fontSize(11)
                .fontColor('#FFFFFF')
                .backgroundColor('rgba(0,0,0,0.6)')
                .padding(4)
                .borderRadius(4)
            }
            .position({ x: 8, y: 8 })
          }
        }
      })
    }
    .columnsTemplate('1fr 1fr 1fr')
    .rowsGap(8)
    .columnsGap(8)
    .width('95%')
    .margin({ top: 16 })
  }
}

---

三、多目标检测

3.1 目标检测技术概述

多目标检测（Multi-Object Detection）是计算机视觉的核心任务之一，要求在图像中同时定位并分类多个目标对象。与图像分类只回答"图中有什么"不同，目标检测需要回答"图中有什么、在哪里"。

Core Vision Kit的多目标检测能力基于YOLO（You Only Look Once）系列检测器，具备以下特点：

特性	说明
检测类别	支持80类常见目标（COCO数据集类别）
实时性能	端侧推理耗时 < 50ms
多尺度检测	自动适配大、中、小目标
非极大值抑制	内置NMS后处理，消除重复检测框

支持的检测类别包括但不限于：

• 人物（person）
• 交通工具：汽车（car）、自行车（bicycle）、摩托车（motorcycle）、公交车（bus）、火车（train）、飞机（airplane）、船（boat）
• 动物：猫（cat）、狗（dog）、马（horse）、鸟（bird）、牛（cow）、羊（sheep）
• 家具：椅子（chair）、沙发（couch）、餐桌（dining table）、床（bed）
• 电子产品：电视（tv）、笔记本电脑（laptop）、手机（cell phone）

3.2 多目标检测API调用

初始化检测引擎：

import { multiObjectDetector } from '@hms.ai.vision.multidetect';

interface DetectionBox {
  label: string;
  confidence: number;
  rect: { left: number; top: number; right: number; bottom: number };
}

interface MultiDetectResult {
  detections: Array<DetectionBox>;
  imageWidth: number;
  imageHeight: number;
}

class MultiObjectDetectionEngine {
  private engine: visionCore.VisionEngine | null = null;

  async initialize(): Promise<void> {
    this.engine = await visionCore.createEngine({
      apiKey: 'your_api_key_here',
      engineType: visionCore.EngineType.MULTI_OBJECT_DETECTION
    });
  }

  async detect(
    pixelMap: image.PixelMap,
    confidenceThreshold: number = 0.5
  ): Promise<MultiDetectResult> {
    const options: multiObjectDetector.DetectOptions = {
      confidenceThreshold,
      nmsThreshold: 0.45,
      maxDetections: 100
    };

    const result = await multiObjectDetector.detect(
      this.engine!,
      pixelMap,
      options
    );

    const imageInfo = await pixelMap.getImageInfo();

    return {
      detections: result.detections.map(d => ({
        label: d.label,
        confidence: d.confidence,
        rect: d.boundingBox
      })),
      imageWidth: imageInfo.size.width,
      imageHeight: imageInfo.size.height
    };
  }
}

目标类别过滤与统计：

class DetectionAnalyzer {
  filterByClass(
    detections: Array<DetectionBox>,
    targetClasses: Array<string>
  ): Array<DetectionBox> {
    return detections.filter(d =>
      targetClasses.includes(d.label.toLowerCase())
    );
  }

  getClassDistribution(
    detections: Array<DetectionBox>
  ): Map<string, number> {
    const distribution = new Map<string, number>();

    detections.forEach(d => {
      const count = distribution.get(d.label) || 0;
      distribution.set(d.label, count + 1);
    });

    return distribution;
  }

  getTopConfidences(
    detections: Array<DetectionBox>,
    topN: number = 5
  ): Array<DetectionBox> {
    return [...detections]
      .sort((a, b) => b.confidence - a.confidence)
      .slice(0, topN);
  }
}

3.3 检测框绘制与交互

const CLASS_COLORS: Record<string, string> = {
  'person': '#FF6B6B',
  'car': '#4ECDC4',
  'cat': '#45B7D1',
  'dog': '#96CEB4',
  'bicycle': '#FFEAA7',
  'motorcycle': '#DDA0DD',
  'bus': '#98D8C8',
  'train': '#F7DC6F',
  'bird': '#BB8FCE',
  'horse': '#85C1E9'
};

function getClassColor(label: string): string {
  return CLASS_COLORS[label] || '#CCCCCC';
}

@Component
struct ObjectDetectionOverlay {
  @Prop detections: Array<DetectionBox>;
  @Prop imageWidth: number;
  @Prop imageHeight: number;
  @Prop viewWidth: number;
  @Prop viewHeight: number;

  private transformer: CoordinateTransformer;

  aboutToAppear() {
    this.transformer = new CoordinateTransformer(
      this.imageWidth,
      this.imageHeight,
      this.viewWidth,
      this.viewHeight
    );
  }

  build() {
    Stack() {
      ForEach(this.detections, (detection, index) => {
        DetectionBoxView({
          detection: detection,
          screenRect: this.transformer.rectToScreen(detection.rect),
          color: getClassColor(detection.label)
        })
      })
    }
    .width('100%')
    .height('100%')
    .position({ x: 0, y: 0 })
  }
}

@Component
struct DetectionBoxView {
  @Prop detection: DetectionBox;
  @Prop screenRect: { x: number; y: number; width: number; height: number };
  @Prop color: string;

  build() {
    Stack() {
      // 检测框
      Rect()
        .width(this.screenRect.width)
        .height(this.screenRect.height)
        .stroke(this.color)
        .strokeWidth(2)
        .fill('transparent')

      // 标签背景
      Row() {
        Text(`${this.detection.label} ${(this.detection.confidence * 100).toFixed(0)}%`)
          .fontSize(11)
          .fontColor('#FFFFFF')
          .padding({ left: 4, right: 4, top: 2, bottom: 2 })
      }
      .backgroundColor(this.color)
      .position({
        x: 0,
        y: -20
      })
    }
    .position({
      x: this.screenRect.x,
      y: this.screenRect.y
    })
    .width(this.screenRect.width)
    .height(this.screenRect.height)
  }
}

实时检测页面：

@Entry
@Component
struct RealTimeDetectionPage {
  @State detections: Array<DetectionBox> = [];
  @State isDetecting: boolean = false;
  @State fps: number = 0;
  @State detectedClasses: string = '';

  private detector: MultiObjectDetectionEngine = new MultiObjectDetectionEngine();
  private analyzer: DetectionAnalyzer = new DetectionAnalyzer();
  private lastFrameTime: number = 0;
  private frameCount: number = 0;

  async aboutToAppear() {
    await this.detector.initialize();
    this.startDetectionLoop();
  }

  async startDetectionLoop(): Promise<void> {
    this.isDetecting = true;

    while (this.isDetecting) {
      const startTime = Date.now();

      try {
        const pixelMap = await this.captureCameraFrame();
        const result = await this.detector.detect(pixelMap, 0.6);

        this.detections = result.detections;

        // 更新检测类别统计
        const distribution = this.analyzer.getClassDistribution(result.detections);
        this.detectedClasses = Array.from(distribution.entries())
          .map(([cls, count]) => `${cls}:${count}`)
          .join(', ');

        // 计算FPS
        this.frameCount++;
        if (startTime - this.lastFrameTime >= 1000) {
          this.fps = this.frameCount;
          this.frameCount = 0;
          this.lastFrameTime = startTime;
        }
      } catch (error) {
        console.error('检测失败:', error);
      }

      // 控制帧率约15fps
      await this.sleep(66);
    }
  }

  private captureCameraFrame(): Promise<image.PixelMap> {
    // 实际实现需要从相机获取帧
    return Promise.resolve({} as image.PixelMap);
  }

  private sleep(ms: number): Promise<void> {
    return new Promise(resolve => setTimeout(resolve, ms));
  }

  build() {
    Stack() {
      // 相机预览（占位）
      Column()
        .width('100%')
        .height('100%')
        .backgroundColor('#000000')

      // 检测框叠加层
      ObjectDetectionOverlay({
        detections: this.detections,
        imageWidth: 1280,
        imageHeight: 720,
        viewWidth: 360,
        viewHeight: 640
      })

      // 状态面板
      Column() {
        Row() {
          Text(`FPS: ${this.fps}`)
            .fontSize(14)
            .fontColor('#00FF00')
            .backgroundColor('rgba(0,0,0,0.5)')
            .padding(4)
            .borderRadius(4)

          Text(`目标数: ${this.detections.length}`)
            .fontSize(14)
            .fontColor('#00FF00')
            .backgroundColor('rgba(0,0,0,0.5)')
            .padding(4)
            .borderRadius(4)
            .margin({ left: 8 })
        }

        if (this.detectedClasses) {
          Text(`检测类别: ${this.detectedClasses}`)
            .fontSize(12)
            .fontColor('#FFFFFF')
            .backgroundColor('rgba(0,0,0,0.5)')
            .padding(4)
            .borderRadius(4)
            .margin({ top: 4 })
            .maxLines(2)
            .textOverflow({ overflow: TextOverflow.Ellipsis })
        }
      }
      .position({ x: 16, y: 16 })
      .alignItems(HorizontalAlign.Start)

      // 底部控制栏
      Column() {
        Button('停止检测')
          .width(120)
          .height(40)
          .backgroundColor('#FF4444')
          .onClick(() => {
            this.isDetecting = false;
          })
      }
      .position({ x: 0, y: '90%' })
      .width('100%')
      .alignItems(HorizontalAlign.Center)
    }
    .width('100%')
    .height('100%')
  }
}

---

四、综合实战：智能相册应用

4.1 应用架构设计

将图像超分、文本搜图和多目标检测三大能力整合，可以构建一个功能强大的智能相册应用。

// 应用核心服务类
class SmartAlbumService {
  private srEngine: SuperResolutionEngine;
  private searchEngine: TextImageSearchEngine;
  private detectEngine: MultiObjectDetectionEngine;

  constructor() {
    this.srEngine = new SuperResolutionEngine();
    this.searchEngine = new TextImageSearchEngine();
    this.detectEngine = new MultiObjectDetectionEngine();
  }

  async initialize(): Promise<void> {
    await Promise.all([
      this.srEngine.initialize(),
      this.searchEngine.initialize(),
      this.detectEngine.initialize()
    ]);
  }

  // 智能分析单张图片
  async analyzeImage(uri: string): Promise<ImageAnalysis> {
    const source = image.createImageSource(uri);
    const pixelMap = await source.createPixelMap();

    // 并行执行检测和索引
    const [detections, embedding] = await Promise.all([
      this.detectEngine.detect(pixelMap, 0.5),
      this.searchEngine.indexImage(uri, uri).then(() => null)
    ]);

    const distribution = new DetectionAnalyzer()
      .getClassDistribution(detections.detections);

    return {
      uri,
      detections: detections.detections,
      tags: Array.from(distribution.keys()),
      objectCount: detections.detections.length
    };
  }

  // 批量处理相册
  async analyzeAlbum(uris: Array<string>,
    onProgress?: (current: number, total: number) => void
  ): Promise<Array<ImageAnalysis>> {
    const results: Array<ImageAnalysis> = [];

    for (let i = 0; i < uris.length; i++) {
      const analysis = await this.analyzeImage(uris[i]);
      results.push(analysis);
      onProgress?.(i + 1, uris.length);
    }

    return results;
  }
}

interface ImageAnalysis {
  uri: string;
  detections: Array<DetectionBox>;
  tags: Array<string>;
  objectCount: number;
}

4.2 数据持久化

import { relationalStore } from '@kit.ArkData';

class AlbumDatabase {
  private store: relationalStore.RdbStore | null = null;

  async initialize(): Promise<void> {
    const config: relationalStore.StoreConfig = {
      name: 'smart_album.db',
      securityLevel: relationalStore.SecurityLevel.S1
    };

    this.store = await relationalStore.getRdbStore(getContext(), config);

    await this.store.executeSql(`
      CREATE TABLE IF NOT EXISTS image_analysis (
        id INTEGER PRIMARY KEY AUTOINCREMENT,
        uri TEXT NOT NULL UNIQUE,
        tags TEXT,
        object_count INTEGER,
        created_at INTEGER
      )
    `);
  }

  async saveAnalysis(analysis: ImageAnalysis): Promise<void> {
    const values: relationalStore.ValuesBucket = {
      uri: analysis.uri,
      tags: JSON.stringify(analysis.tags),
      object_count: analysis.objectCount,
      created_at: Date.now()
    };

    await this.store?.insert('image_analysis', values);
  }

  async searchByTag(tag: string): Promise<Array<string>> {
    const predicates = new relationalStore.RdbPredicates('image_analysis');
    predicates.contains('tags', tag);

    const result = await this.store?.query(predicates, ['uri']);
    const uris: Array<string> = [];

    while (result?.goToNextRow()) {
      uris.push(result.getString(result.getColumnIndex('uri')));
    }

    return uris;
  }
}

---

五、性能优化与注意事项

5.1 内存管理

视觉AI任务通常涉及大量图像数据，合理的内存管理至关重要：

class MemoryManager {
  private activePixelMaps: Set<image.PixelMap> = new Set();

  track(pixelMap: image.PixelMap): void {
    this.activePixelMaps.add(pixelMap);
  }

  release(pixelMap: image.PixelMap): void {
    pixelMap.release();
    this.activePixelMaps.delete(pixelMap);
  }

  releaseAll(): void {
    this.activePixelMaps.forEach(pm => pm.release());
    this.activePixelMaps.clear();
  }

  getActiveCount(): number {
    return this.activePixelMaps.size;
  }
}

5.2 模型热切换策略

不同视觉任务需要加载不同的AI模型，频繁的初始化会造成性能损耗。建议采用引擎池设计：

class VisionEnginePool {
  private engines: Map<string, visionCore.VisionEngine> = new Map();
  private maxPoolSize: number = 3;

  async acquire(engineType: string): Promise<visionCore.VisionEngine> {
    if (this.engines.has(engineType)) {
      return this.engines.get(engineType)!;
    }

    if (this.engines.size >= this.maxPoolSize) {
      // 淘汰最久未使用的引擎
      const oldestKey = this.engines.keys().next().value;
      this.engines.delete(oldestKey);
    }

    const engine = await visionCore.createEngine({
      apiKey: 'your_api_key',
      engineType: this.mapEngineType(engineType)
    });

    this.engines.set(engineType, engine);
    return engine;
  }

  private mapEngineType(type: string): visionCore.EngineType {
    const mapping: Record<string, visionCore.EngineType> = {
      'sr': visionCore.EngineType.SUPER_RESOLUTION,
      'detect': visionCore.EngineType.MULTI_OBJECT_DETECTION,
      'search': visionCore.EngineType.TEXT_IMAGE_RETRIEVAL
    };
    return mapping[type] || visionCore.EngineType.SUPER_RESOLUTION;
  }
}

5.3 各能力性能对比

能力	输入尺寸要求	推荐精度	平均耗时	内存占用
2x超分	不限	标准	30-50ms	~80MB
4x超分	建议 < 512px	高质量	80-150ms	~120MB
多目标检测	640x640	标准	40-60ms	~100MB
文本搜图编码	224x224	标准	20-30ms	~60MB

性能提示：在低端设备上运行4x超分时，建议先将输入图像缩放到256px以下，可以显著降低处理耗时和内存占用。

---

总结

本文深入讲解了HarmonyOS Core Vision Kit的三大进阶能力：图像超分辨率重建、文本搜索图片和多目标检测。通过完整的代码示例和实战项目，展示了如何将这些能力集成到实际应用中。

核心收获：

1. 图像超分：使用superResolution.process()实现2x/4x画质增强，支持标准/高质量两种模式
2. 文本搜图：利用跨模态编码技术，通过自然语言描述检索相关图片
3. 多目标检测：基于YOLO架构实时检测80类目标，支持置信度过滤和NMS后处理
4. 综合应用：通过引擎池、内存管理和批量处理策略，构建企业级智能相册应用

进阶方向：

• 探索端侧大模型与视觉能力的结合
• 学习神经网络模型量化技术，进一步降低推理耗时
• 关注OpenHarmony视觉框架的最新开源进展

---

推荐阅读与资源：

• HarmonyOS Core Vision Kit官方文档
• 图像超分技术白皮书
• 多目标检测API参考
• 跨模态检索论文综述
• YOLOv8官方文档
• COCO数据集官方站点
• MindSpore Lite模型转换工具
• 华为开发者社区AI板块
