#跟着坚果学鸿蒙#按照按钮的形状，按钮可以分为：普通按钮，椭圆按钮，胶囊按钮，圆形按钮等。 ⚫ 普通按钮

普通按钮和其他按钮的区别在于不需要设置任何形状，只设置文本和背景颜色即 可，例如：

<Button
 ohos:width="150vp"
 ohos:height="50vp" ohos:text_size="27fp"
 ohos:text="button"
 ohos:background_element="$graphic:color_blue_element"
 ohos:left_margin="15vp"
 ohos:bottom_margin="15vp"
 ohos:right_padding="8vp"
 ohos:left_padding="8vp"
/>

color_blue_element.xml：

<?xml version="1.0" encoding="utf-8"?>
<shape xmlns:ohos="http://schemas.huawei.com/res/ohos"
 ohos:shape="rectangle">
 <solid
 ohos:color="#FF007DFF"/>
</shape>

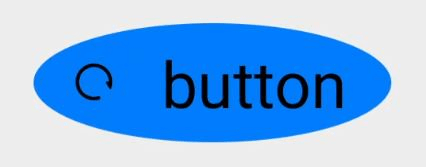

椭圆按钮

椭圆按钮是通过设置 background_element 的来实现的， background_element 的 shape 设置为椭圆（oval），例如：

<Button
 ohos:width="150vp"
 ohos:height="50vp"
 ohos:text_size="27fp"
 ohos:text="button"
 ohos:background_element="$graphic:oval_button_element"
 ohos:left_margin="15vp"
 ohos:bottom_margin="15vp"
 ohos:right_padding="8vp" ohos:left_padding="8vp"
 ohos:element_left="$graphic:ic_btn_reload"
/>

oval_button_element.xml:

<?xml version="1.0" encoding="utf-8"?>
<shape xmlns:ohos="http://schemas.huawei.com/res/ohos"
 ohos:shape="oval">
 <solid
 ohos:color="#FF007DFF"/>
</shape>

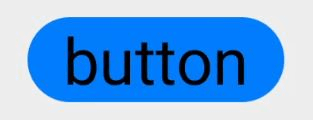

胶囊按钮

胶囊按钮是一种常见的按钮，设置按钮背景时将背景设置为矩形形状，并且设置 ShapeElement 的 radius 的半径，例如：

<Button
 ohos:id="$+id:button"
 ohos:width="match_content"
 ohos:height="match_content"
 ohos:text_size="27fp"
 ohos:text="button"
 ohos:background_element="$graphic:capsule_button_element"
 ohos:left_margin="15vp"
 ohos:bottom_margin="15vp"
 ohos:right_padding="15vp"
 ohos:left_padding="15vp"
/>

capsule_button_element.xml:

<?xml version="1.0" encoding="utf-8"?>
<shape xmlns:ohos="http://schemas.huawei.com/res/ohos"
 ohos:shape="rectangle">
 <corners
 ohos:radius="100"/>
 <solid
 ohos:color="#FF007DFF"/>
</shape>

圆形按钮

圆形按钮和椭圆按钮的区别在于组件本身的宽度和高度需要相同，例如：

<Button
 ohos:id="$+id:button4"
 ohos:width="50vp"
 ohos:height="50vp"
 ohos:text_size="27fp"
 ohos:background_element="$graphic:circle_button_element"
 ohos:text="+"
 ohos:left_margin="15vp"
 ohos:bottom_margin="15vp"
 ohos:right_padding="15vp" ohos:left_padding="15vp"
/>

circle_button_element.xml:

<?xml version="1.0" encoding="utf-8"?>
<shape xmlns:ohos="http://schemas.huawei.com/res/ohos"
 ohos:shape="oval">
 <solid
 ohos:color="#FF007DFF"/>
</shape>

场景示例 利用圆形按钮，胶囊按钮，文本组件可以绘制出如下拨号盘的 UI 界面。

源码示例：

<?xml version="1.0" encoding="utf-8"?>
<DirectionalLayout
 xmlns:ohos="http://schemas.huawei.com/res/ohos"
 ohos:width="match_parent"
 ohos:height="match_parent"
 ohos:background_element="$graphic:color_light_gray_element"
 ohos:orientation="vertical">
 <Text
 ohos:width="match_content"
 ohos:height="match_content"
 ohos:text_size="20fp" ohos:text="0123456789"
 ohos:background_element="$graphic:green_text_element"
 ohos:text_alignment="center"
 ohos:layout_alignment="horizontal_center"
 />
 <DirectionalLayout
 ohos:width="match_parent"
 ohos:height="match_content"
 ohos:alignment="horizontal_center"
 ohos:orientation="horizontal"
 ohos:top_margin="5vp"
 ohos:bottom_margin="5vp">
 <Button ohos:width="40vp"
 ohos:height="40vp"
 ohos:text_size="15fp"

ohos:background_element="$graphic:green_circle_button_element"
 ohos:text="1"
 ohos:text_alignment="center"
 />
 <Button ohos:width="40vp"
 ohos:height="40vp"
 ohos:text_size="15fp"

ohos:background_element="$graphic:green_circle_button_element"
 ohos:text="2"
 ohos:left_margin="5vp" ohos:right_margin="5vp"
 ohos:text_alignment="center"
 />
 <Button
 ohos:width="40vp"
 ohos:height="40vp"
 ohos:text_size="15fp"

ohos:background_element="$graphic:green_circle_button_element"
 ohos:text="3" ohos:text_alignment="center"
 />
 </DirectionalLayout>
 <DirectionalLayout
 ohos:width="match_parent"
 ohos:height="match_content"
 ohos:alignment="horizontal_center"
 ohos:orientation="horizontal"
 ohos:bottom_margin="5vp">
 <Button ohos:width="40vp"
 ohos:height="40vp"
 ohos:text_size="15fp"

ohos:background_element="$graphic:green_circle_button_element"
 ohos:text="4"
 ohos:text_alignment="center"
 />
 <Button ohos:width="40vp"
 ohos:height="40vp"
 ohos:text_size="15fp"
 ohos:left_margin="5vp"
 ohos:right_margin="5vp"

ohos:background_element="$graphic:green_circle_button_element"
 ohos:text="5"
 ohos:text_alignment="center"
 />
 <Button ohos:width="40vp"
 ohos:height="40vp"
 ohos:text_size="15fp"

ohos:background_element="$graphic:green_circle_button_element"
 ohos:text="6"
 ohos:text_alignment="center"
 />
 </DirectionalLayout>
 <DirectionalLayout
 ohos:width="match_parent"ohos:height="match_content"
 ohos:alignment="horizontal_center"
 ohos:orientation="horizontal"
 ohos:bottom_margin="5vp">
 <Button
 ohos:width="40vp"
 ohos:height="40vp" ohos:text_size="15fp"

ohos:background_element="$graphic:green_circle_button_element"
 ohos:text="7"
 ohos:text_alignment="center"
 />
 <Button
 ohos:width="40vp"
 ohos:height="40vp"
 ohos:text_size="15fp"ohos:left_margin="5vp"
 ohos:right_margin="5vp"

ohos:background_element="$graphic:green_circle_button_element"
 ohos:text="8"
 ohos:text_alignment="center"
 />
 <Button
 ohos:width="40vp"
 ohos:height="40vp"
 ohos:text_size="15fp" ohos:background_element="$graphic:green_circle_button_element"
 ohos:text="9"
 ohos:text_alignment="center"
 />
 </DirectionalLayout>
 <DirectionalLayout
 ohos:width="match_parent" ohos:height="match_content"
 ohos:alignment="horizontal_center"
 ohos:orientation="horizontal"
 ohos:bottom_margin="5vp">
 <Button
 ohos:width="40vp"
 ohos:height="40vp"
 ohos:text_size="15fp"ohos:background_element="$graphic:green_circle_button_element"
 ohos:text="*"
 ohos:text_alignment="center"
 />
 <Button
 ohos:width="40vp"
 ohos:height="40vp"
 ohos:text_size="15fp"
 ohos:left_margin="5vp"
 ohos:right_margin="5vp" ohos:background_element="$graphic:green_circle_button_element"
 ohos:text="0"
 ohos:text_alignment="center"
 />
 <Button
 ohos:width="40vp"
 ohos:height="40vp"
 ohos:text_size="15fp" ohos:background_element="$graphic:green_circle_button_element"
 ohos:text="#"
 ohos:text_alignment="center"
 />
 </DirectionalLayout>
 <Button ohos:width="match_content"
 ohos:height="match_content"
 ohos:text_size="15fp"
 ohos:text="CALL"
 ohos:background_element="$graphic:green_capsule_button_element"
 ohos:bottom_margin="5vp"
 ohos:text_alignment="center"
 ohos:layout_alignment="horizontal_center"
 ohos:left_padding="10vp"
 ohos:right_padding="10vp"
 ohos:top_padding="2vp"
 ohos:bottom_padding="2vp" />
</DirectionalLayout>

color_light_gray_element.xml：

<?xml version="1.0" encoding="utf-8"?>
<shape xmlns:ohos="http://schemas.huawei.com/res/ohos"
 ohos:shape="rectangle">
 <solid ohos:color="#ffeeeeee"/>
</shape>

green_text_element.xml：

<?xml version="1.0" encoding="utf-8"?>
<shape xmlns:ohos="http://schemas.huawei.com/res/ohos"
 ohos:shape="rectangle">
 <corners
 ohos:radius="20"/>
 <stroke
 ohos:width="2" ohos:color="#ff008B00"/>
 <solid
 ohos:color="#ffeeeeee"/>
</shape>

green_circle_button_element.xml：

<?xml version="1.0" encoding="utf-8"?>
<shape xmlns:ohos="http://schemas.huawei.com/res/ohos"
 ohos:shape="oval">
 <stroke
 ohos:width="5"
 ohos:color="#ff008B00"/>
 <solid
 ohos:color="#ffeeeeee"/>
</shape>

green_capsule_button_element.xml：

<?xml version="1.0" encoding="utf-8"?>
<shape xmlns:ohos="http://schemas.huawei.com/res/ohos"
 ohos:shape="rectangle">
 <corners
 ohos:radius="100"/>
 <solid
 ohos:color="#ff008B00"/>
</shape>
