1. 当前使用的 python版本 ：

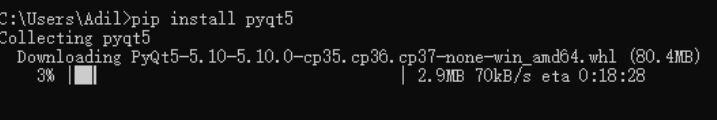

2. 使用pip安装 QT5：

pip install pyqt5

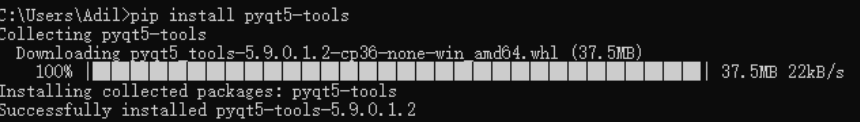

3. 安装 PyQt5-tools ：  pip install  pyqt5-tools

4. 校验QT是否安装成功：

from PyQt5 import QtWidgets, QtGui

import sys

app = QtWidgets.QApplication(sys.argv)

window = QtWidgets.QWidget();

window.show()

sys.exit(app.exec_())

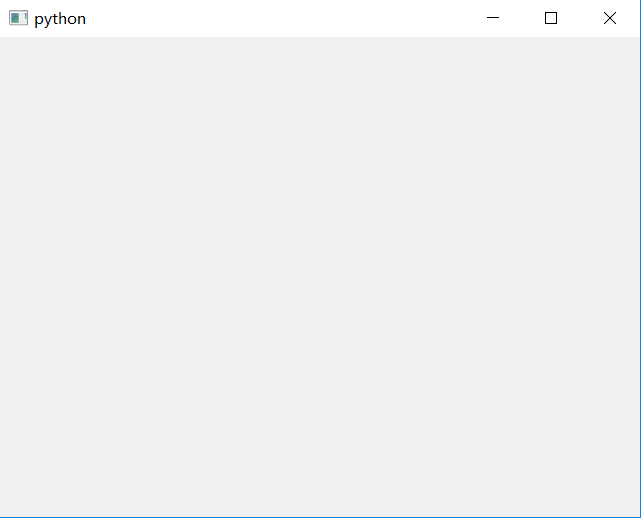

弹出如下界面即可:

Pycharm相关配置:

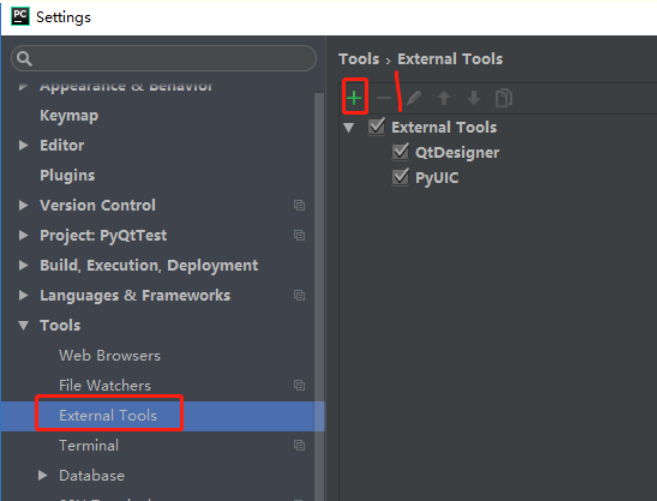

1、添加external Tools

打开settings->Tools->External Tools点击“+”

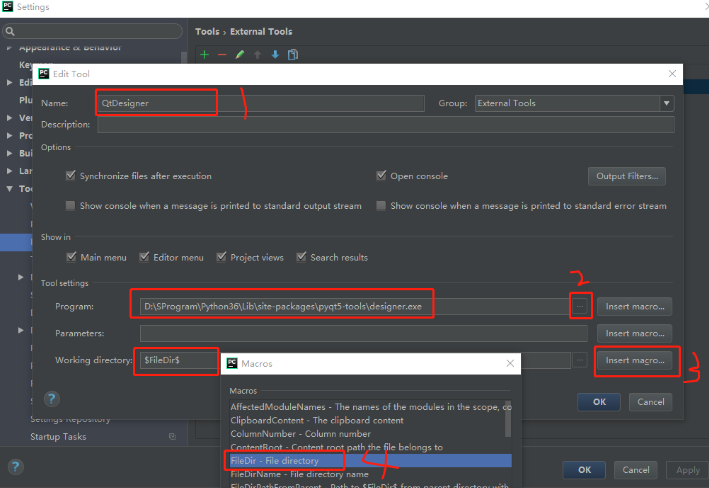

2、添加QtDesigner

如下图设置

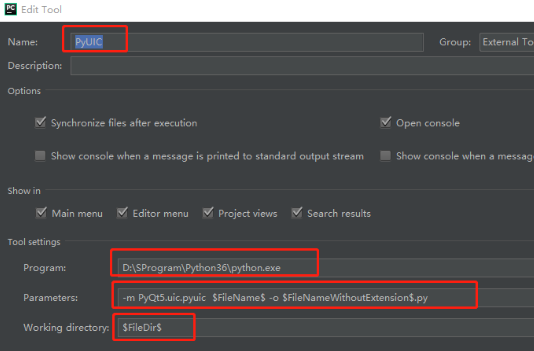

3、添加PyUIC

如下图设置。

Parameters:  -m PyQt5.uic.pyuic  $FileName$ -o $FileNameWithoutExtension$.py

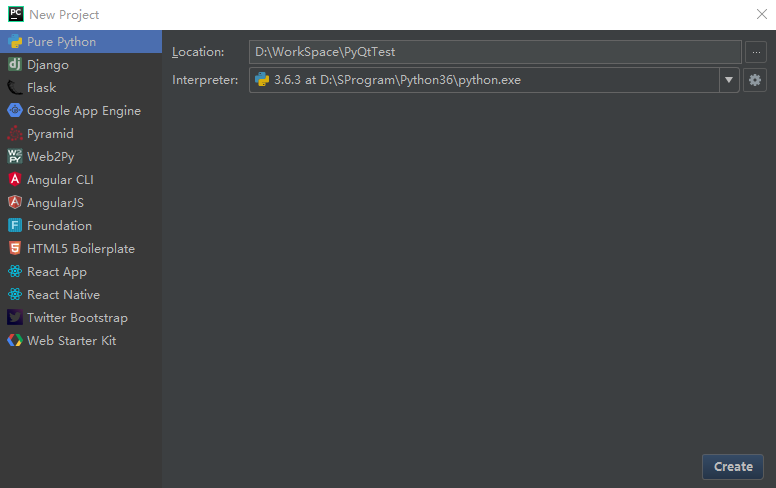

3、新建一个PyQt demo,创建一个项目

如下图

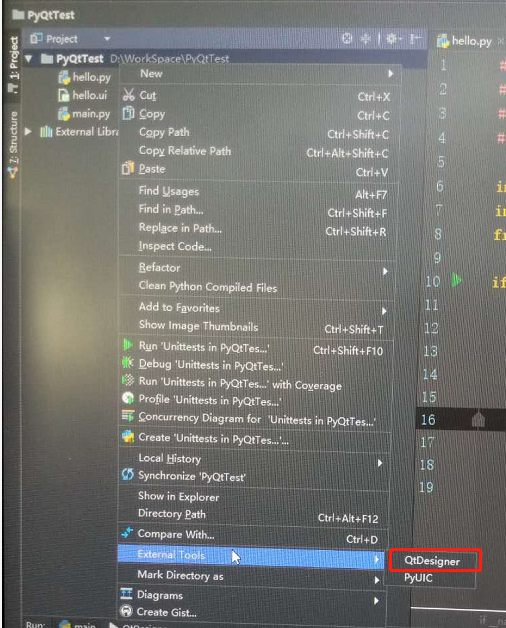

如下图打开QtDesigner

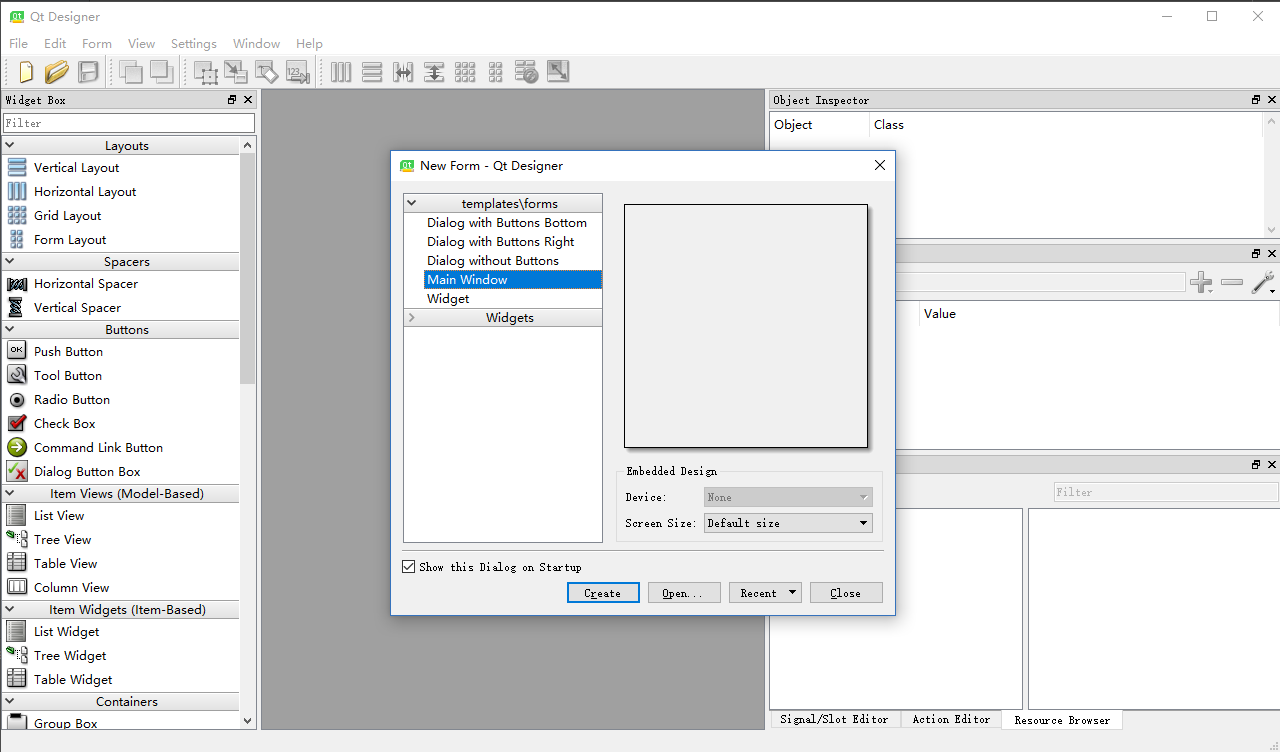

打开Qt界面如下图

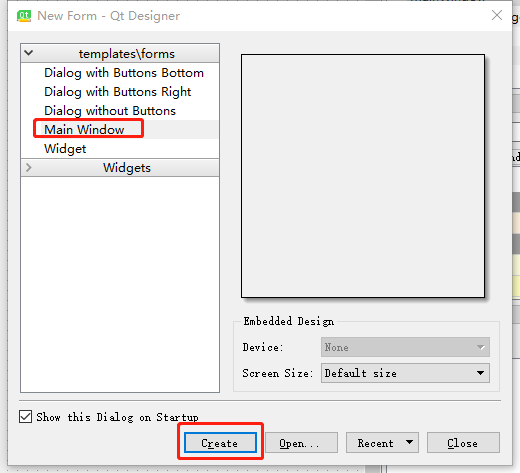

如图选择创建一个Main Window

如图可以根据需要添加自己的组件

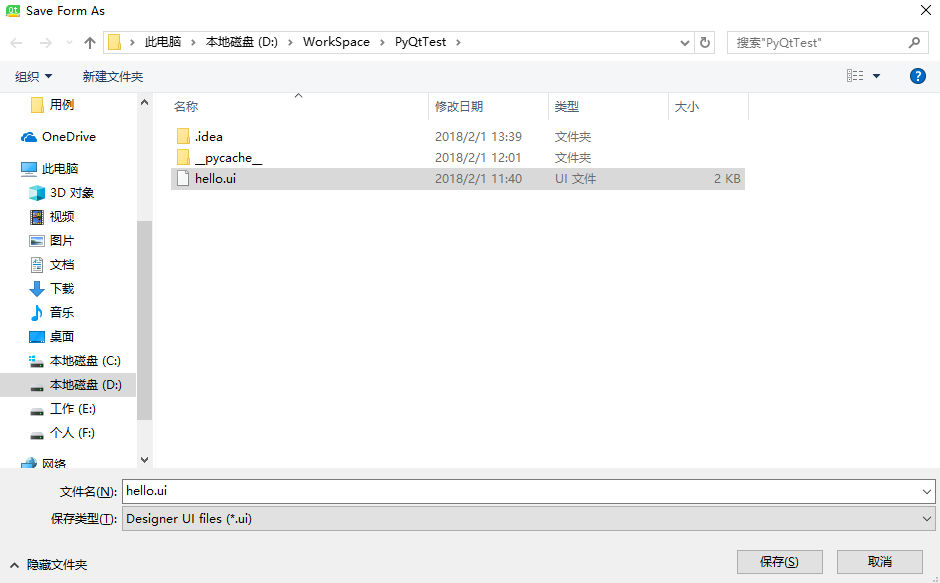

如下图保存

如下图，使用PyUIC将hello.ui文件转换为hello.py

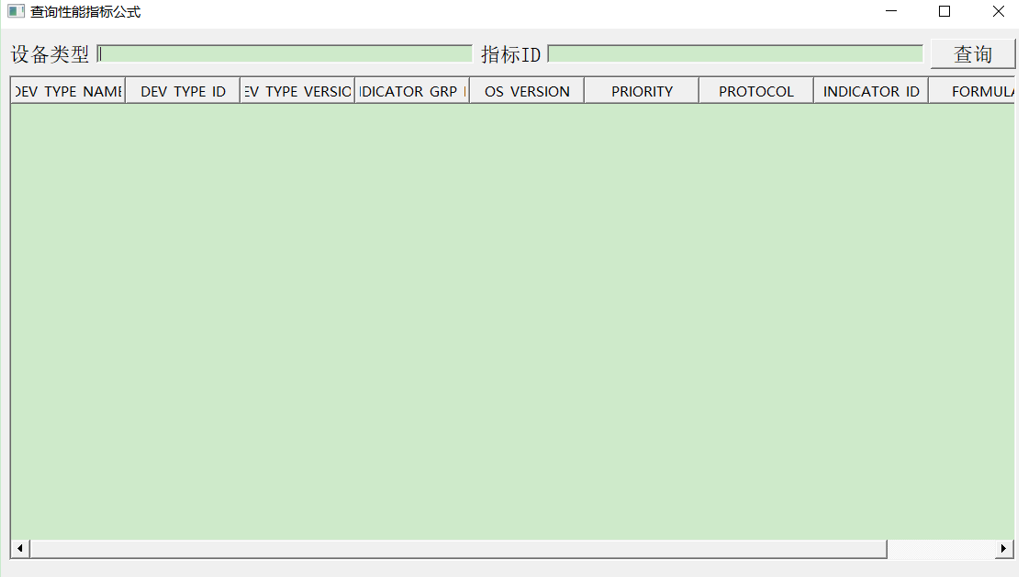

下面是我做的一个简单工具 ：

# -*- coding: utf-8 -*-

# Form implementation generated from reading ui file 'query.ui'

#

# Created by: PyQt5 UI code generator 5.11.3

#

# WARNING! All changes made in this file will be lost!

from PyQt5 import QtCore, QtGui, QtWidgets

class Ui_MainWindow(object):

def setupUi(self, MainWindow):

MainWindow.setObjectName("MainWindow")

MainWindow.resize(1119, 616)

self.centralwidget = QtWidgets.QWidget(MainWindow)

self.centralwidget.setObjectName("centralwidget")

self.gridLayout = QtWidgets.QGridLayout(self.centralwidget)

self.gridLayout.setObjectName("gridLayout")

self.text_netype = QtWidgets.QLineEdit(self.centralwidget)

self.text_netype.setObjectName("text_netype")

self.gridLayout.addWidget(self.text_netype, 0, 1, 1, 1)

self.label_indicator_id = QtWidgets.QLabel(self.centralwidget)

font = QtGui.QFont()

font.setPointSize(13)

self.label_indicator_id.setFont(font)

self.label_indicator_id.setLayoutDirection(QtCore.Qt.RightToLeft)

self.label_indicator_id.setAlignment(QtCore.Qt.AlignRight|QtCore.Qt.AlignTrailing|QtCore.Qt.AlignVCenter)

self.label_indicator_id.setObjectName("label_indicator_id")

self.gridLayout.addWidget(self.label_indicator_id, 0, 2, 1, 1)

self.text_indicator_id = QtWidgets.QLineEdit(self.centralwidget)

self.text_indicator_id.setInputMethodHints(QtCore.Qt.ImhDigitsOnly)

self.text_indicator_id.setObjectName("text_indicator_id")

self.gridLayout.addWidget(self.text_indicator_id, 0, 3, 1, 1)

self.pushButton = QtWidgets.QPushButton(self.centralwidget)

font = QtGui.QFont()

font.setPointSize(13)

self.pushButton.setFont(font)

self.pushButton.setObjectName("pushButton")

self.gridLayout.addWidget(self.pushButton, 0, 4, 1, 1)

self.tableWidget = QtWidgets.QTableWidget(self.centralwidget)

self.tableWidget.setObjectName("tableWidget")

self.tableWidget.setColumnCount(9)

self.tableWidget.setRowCount(0)

item = QtWidgets.QTableWidgetItem()

self.tableWidget.setHorizontalHeaderItem(0, item)

item = QtWidgets.QTableWidgetItem()

self.tableWidget.setHorizontalHeaderItem(1, item)

item = QtWidgets.QTableWidgetItem()

self.tableWidget.setHorizontalHeaderItem(2, item)

item = QtWidgets.QTableWidgetItem()

self.tableWidget.setHorizontalHeaderItem(3, item)

item = QtWidgets.QTableWidgetItem()

self.tableWidget.setHorizontalHeaderItem(4, item)

item = QtWidgets.QTableWidgetItem()

self.tableWidget.setHorizontalHeaderItem(5, item)

item = QtWidgets.QTableWidgetItem()

self.tableWidget.setHorizontalHeaderItem(6, item)

item = QtWidgets.QTableWidgetItem()

self.tableWidget.setHorizontalHeaderItem(7, item)

item = QtWidgets.QTableWidgetItem()

self.tableWidget.setHorizontalHeaderItem(8, item)

self.gridLayout.addWidget(self.tableWidget, 1, 0, 1, 5)

self.label_netype = QtWidgets.QLabel(self.centralwidget)

font = QtGui.QFont()

font.setPointSize(13)

self.label_netype.setFont(font)

self.label_netype.setLayoutDirection(QtCore.Qt.RightToLeft)

self.label_netype.setAlignment(QtCore.Qt.AlignRight|QtCore.Qt.AlignTrailing|QtCore.Qt.AlignVCenter)

self.label_netype.setObjectName("label_netype")

self.gridLayout.addWidget(self.label_netype, 0, 0, 1, 1)

MainWindow.setCentralWidget(self.centralwidget)

self.menubar = QtWidgets.QMenuBar(MainWindow)

self.menubar.setGeometry(QtCore.QRect(0, 0, 1119, 26))

self.menubar.setObjectName("menubar")

MainWindow.setMenuBar(self.menubar)

self.statusbar = QtWidgets.QStatusBar(MainWindow)

self.statusbar.setObjectName("statusbar")

MainWindow.setStatusBar(self.statusbar)

self.retranslateUi(MainWindow)

QtCore.QMetaObject.connectSlotsByName(MainWindow)

def retranslateUi(self, MainWindow):

_translate = QtCore.QCoreApplication.translate

MainWindow.setWindowTitle(_translate("MainWindow", "查询性能指标公式"))

self.label_indicator_id.setText(_translate("MainWindow", "指标ID"))

self.pushButton.setText(_translate("MainWindow", "查询"))

item = self.tableWidget.horizontalHeaderItem(0)

item.setText(_translate("MainWindow", "DEV_TYPE_NAME"))

item = self.tableWidget.horizontalHeaderItem(1)

item.setText(_translate("MainWindow", "DEV_TYPE_ID"))

item = self.tableWidget.horizontalHeaderItem(2)

item.setText(_translate("MainWindow", "DEV_TYPE_VERSION"))

item = self.tableWidget.horizontalHeaderItem(3)

item.setText(_translate("MainWindow", "INDICATOR_GRP_ID"))

item = self.tableWidget.horizontalHeaderItem(4)

item.setText(_translate("MainWindow", "OS_VERSION"))

item = self.tableWidget.horizontalHeaderItem(5)

item.setText(_translate("MainWindow", "PRIORITY"))

item = self.tableWidget.horizontalHeaderItem(6)

item.setText(_translate("MainWindow", "PROTOCOL"))

item = self.tableWidget.horizontalHeaderItem(7)

item.setText(_translate("MainWindow", "INDICATOR_ID"))

item = self.tableWidget.horizontalHeaderItem(8)

item.setText(_translate("MainWindow", "FORMULA"))

self.label_netype.setText(_translate("MainWindow", "设备类型"))

这个QT自动生成的py文件，看到只是对控件的位置属性进行定义而已 ，界面需要有类合并来支撑这个界面。用过Qt的应该知道。界面有了还需要一个类与界面合并，可以想像这个类相当于cpp和.h文件的关系

我们来定义一个类

from query import Ui_MainWindow

from PyQt5 import QtCore, QtGui, QtWidgets

import sys

from mylog import LogAssistant

class query_window(QtWidgets.QMainWindow):

def __init__(self):

QtWidgets.QMainWindow.__init__(self)

self.ui = Ui_MainWindow()

self.ui.setupUi(self)

self.ui.pushButton.clicked.connect(self.query_formula)

# 给button 的 点击动作绑定一个事件处理函数

def query_formula(self):

# 此处编写具体的业务逻辑

最后添加程序运行的入口代码：

if __name__ == '__main__':

app = QtWidgets.QApplication(sys.argv)

window = query_window()

window.show()

sys.exit(app.exec_())
